01 / Construction & ratings
Construction & ratings
- Standardize global conductor technology requirements to facilitate design, production, and international trade;
- Ensure that the conductor resistance is qualified, reduce line losses, and guarantee power supply safety;
- It is the basic conductor standard referenced by various cable standards, such as power cables, photovoltaic cables, American standard lines, and European standard lines.

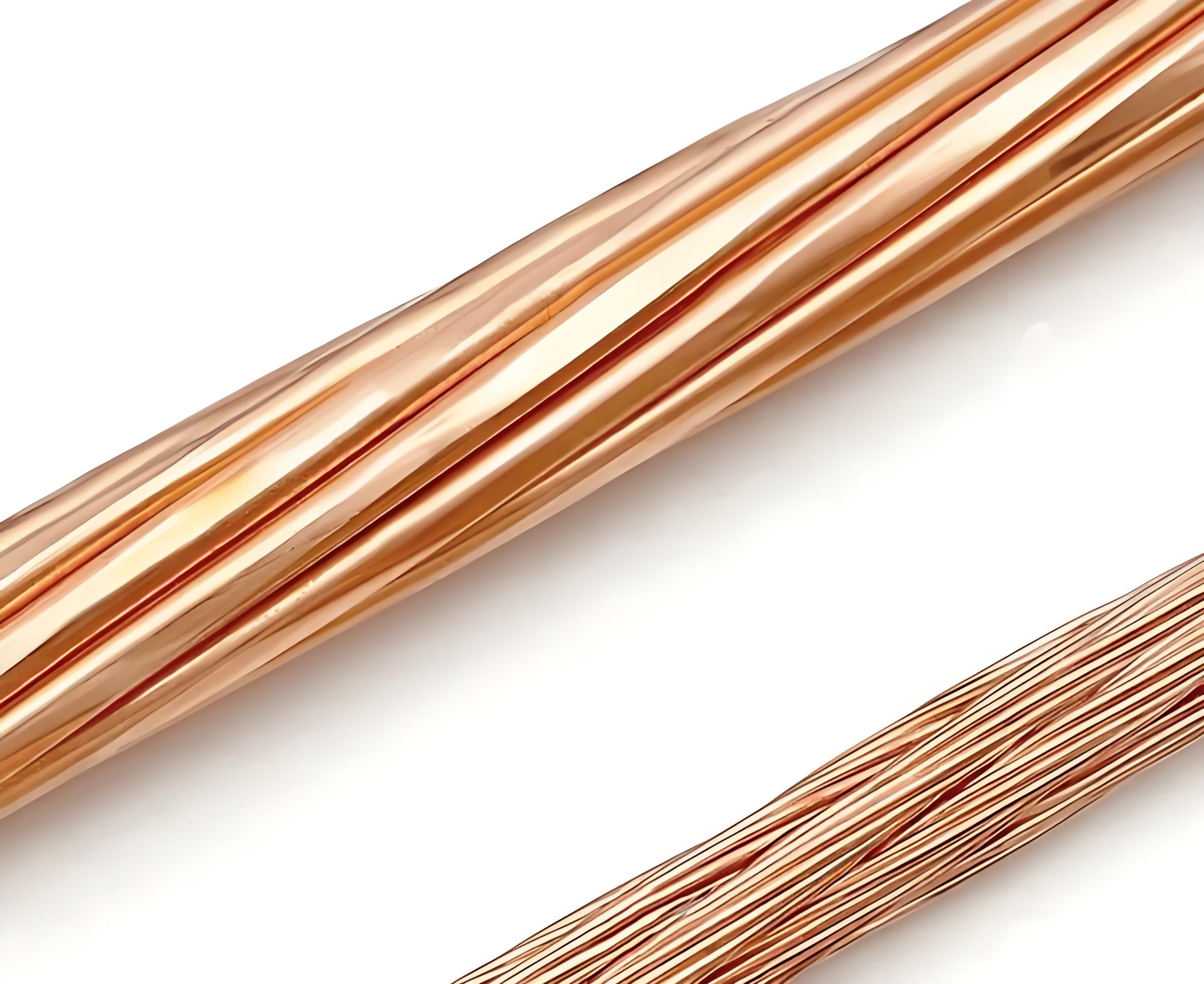

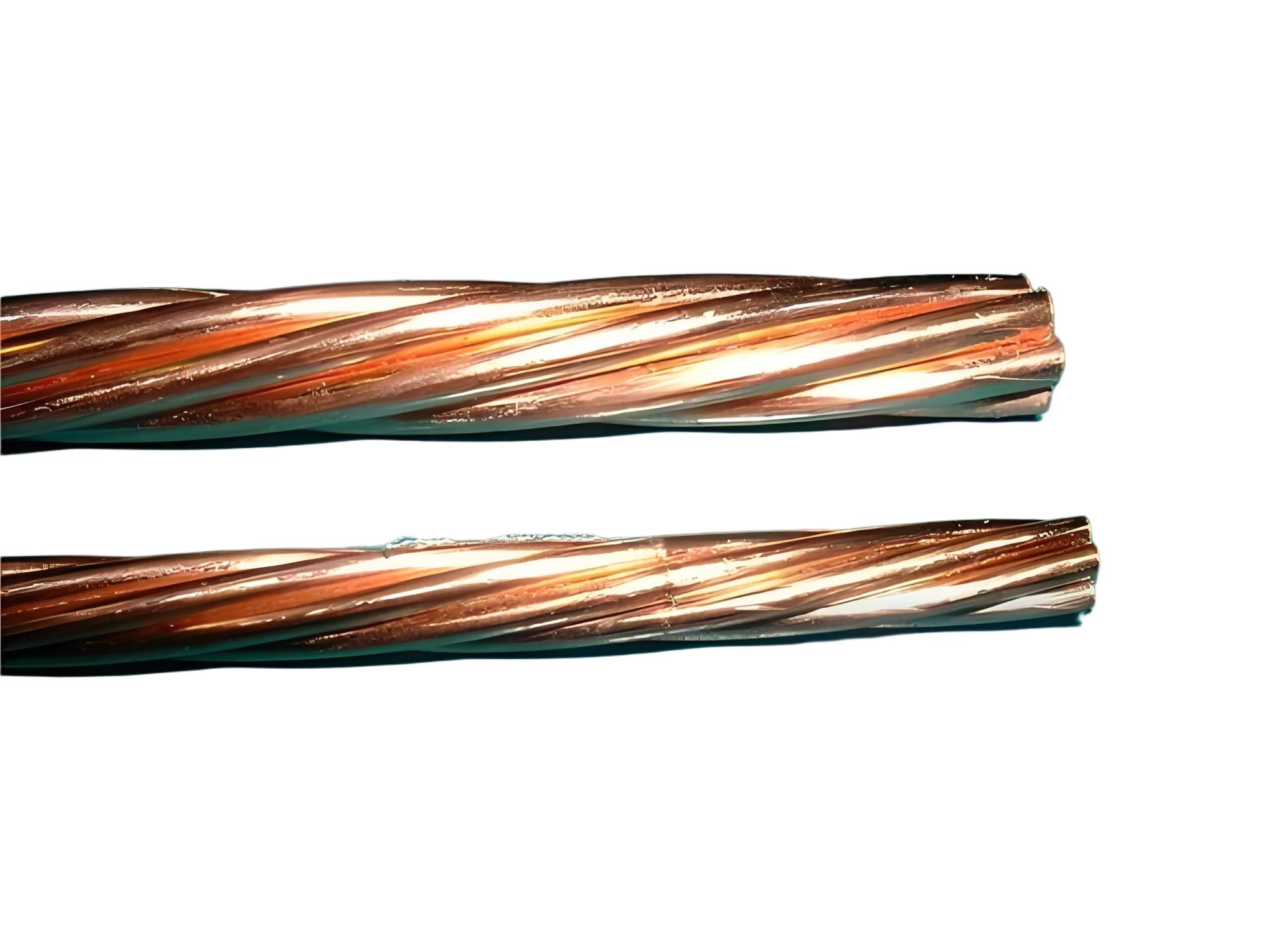

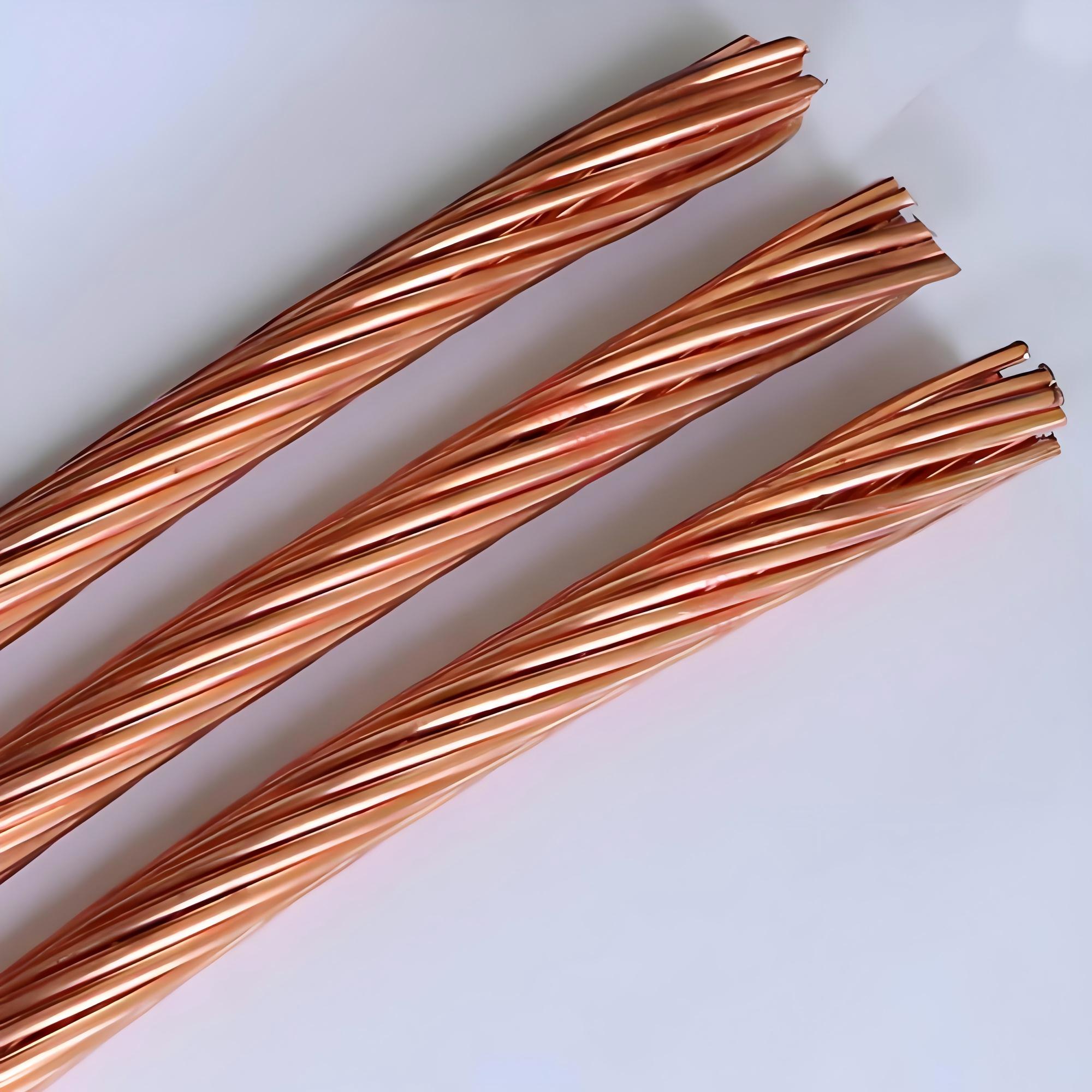

- Conductors are classified into solid conductors and stranded conductors, and are classified into different levels based on their flexibility;
- Specify commonly used nominal cross-sectional areas: 1.5mm ², 2.5mm ², 4mm ², 6mm ², 10mm ² and larger specifications;
- Provide the maximum DC resistance value at 20 ℃ to ensure consistency in conductor conductivity and quality;
- Suitable for cable conductors with AC voltage levels of 0.6/1kV and higher.
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| NO./mm2 | Sollquerschnitt mm² | Conductor NO. | Diameter of wires （mm） | Diameter of conductor （mm） | Weight of cable (kg/km) | Nominal tensile strength（kN） | Max. current ratingt （A） |
|---|---|---|---|---|---|---|---|
| 10 | 10.02 | 7 | 1.35 | 4.1 | 90 | 4.02 | 90 |
| 16 | 15.89 | 7 | 1.7 | 5.1 | 143 | 6.37 | 125 |
| 25 | 24.25 | 7 | 2.1 | 6.3 | 218 | 9.72 | 160 |
| 35 | 34.36 | 7 | 2.5 | 7.5 | 310 | 13.77 | 200 |
| 50 | 49.48 | 7 | 3 | 9 | 446 | 19.84 | 250 |
| 50 | 48.35 | 19 | 1.8 | 9 | 437 | 19.38 | 250 |
| 70 | 65.81 | 19 | 2.1 | 10.5 | 596 | 26.38 | 310 |
| 95 | 93.27 | 19 | 2.5 | 12.5 | 845 | 37.39 | 380 |
| 120 | 116.99 | 19 | 2.8 | 14 | 1060 | 46.9 | 440 |
| 150 | 147.11 | 37 | 2.25 | 15.8 | 1337 | 58.98 | 510 |
| 185 | 181.62 | 37 | 2.5 | 17.5 | 1649 | 72.81 | 585 |
| 240 | 242.54 | 61 | 2.25 | 20.3 | 2209 | 97.23 | 700 |
| 300 | 299.43 | 61 | 2.5 | 22.5 | 2725 | 120.04 | 800 |
| 400 | 400.14 | 61 | 2.89 | 26 | 3640 | 160.42 | 960 |
| 500 | 499.83 | 61 | 3.23 | 29.1 | 4545 | 200.38 | 1110 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
