Medium Voltage Cable
Compare constructions and published technical data. Open a product to review its available sizes and specification tables.
6.35/11(12)kV XLPE Insulated Single Core and 3Cores Power Cable (AS/NZS 1429.1)
View specifications
12/20(24)kV CU XLPE AWA/SWA PVC Armoured Cable
View specifications
12/20(24)kV CU XLPE PVC Un-armoured Cable
View specifications8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable
View specifications18/30(36)kV CU XLPE AWA/SWA PVC Armoured Cable
View specifications18/30(36)kV CU XLPE PVC Un-armoured Cable
View specifications12.7/22(24)kV XLPE Insulated Single Core and 3Cores Power Cable (AS/NZS 1429.1)
View specifications3.6/6(7.2)kV CU XLPE AWA/SWA PVC Armoured Cable
View specifications19/33(36)kV XLPE Insulated Single Core and 3Cores Power Cable (AS/NZS 1429.1)
View specifications1.9/3.3(3.6)kV XLPE Insulated Single Core and 3Cores Power Cable (AS/NZS 1429.1)
View specifications
6/10(12)kV CU XLPE AWA/SWA PVC Armoured Cable
View specifications6/10(12)kV CU XLPE PVC Un-armoured Cable
View specifications3.6/6(7.2)kV CU XLPE PVC Un-armoured Cable
View specifications3.8/6.6(7.2)kV XLPE Insulated Single Core and 3Cores Power Cable (AS/NZS 1429.1)
View specifications8.7/15(17.5)kV CU XLPE AWA/SWA PVC Armoured Cable
View specifications
Medium Voltage Aerial Bundled Cable
View specifications
MV-105 Cable 5kV-35kV
View specificationsMV-90 Cable 5kV-35kV
View specifications
N2XS(F)2Y Cable 3.6/6-18/30kV
View specifications
N2XS(FL)2Y Cable 3.6/6-18/30kV
View specifications

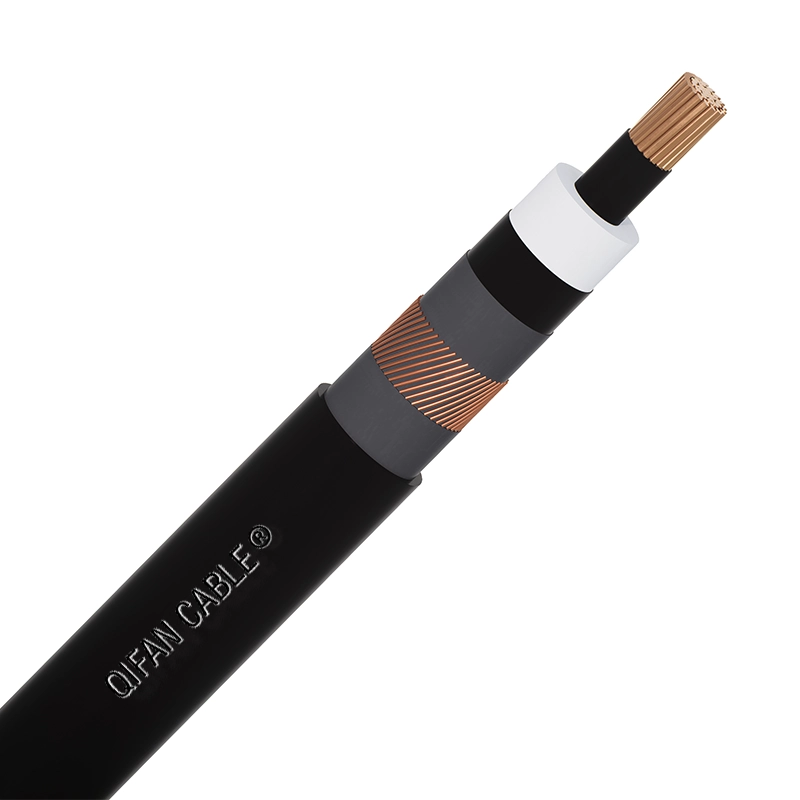

N2XSY Cable XLPE PVC -3.6/6-18/30kV
View specifications
NA2XS(F)2Y Cable 3.6/6-18/30kV
View specificationsNA2XS(FL)2Y Cable 3.6/6-18/30kV
View specificationsNA2XSY Aluminium Conductor XLPE PVC CABLE-3.6/6-18/30kV
View specifications
Spacer Cable(Tree Wire)
View specificationsTechnical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| MV Cable Standard | Voltage Range |
|---|---|
| IEC 60502-2 | Cables with extruded insulation with voltage rating between 6kV and 30kV |
| BS 6622 | Armoured cable with PVC outer sheathing and voltage rating from 3.3/6kV to 19/33kV – AWA single core, SWA multicore. |
| BS 7835 | Armoured cable with LSZH outer sheathing and voltage rating from 3.3/6kV to 19/33kV – AWA single core, SWA multicore. |
| NFC 33-226 | Cables with rated voltages between 6/10(12) kV and 18/30(36) kV, with cross-linked polyethylene insulation and fixed gradient, for distribution networks. |
| HD620 | Cables with extruded insulation and voltage ratings 3.6/6 (7.2)kV to 20.8/36 (42)kV (often seen in conjunction with IEC60502-2) |
| ANSI/ICEA S-94-649 | Underground electrical distribution cables rated between 5 kV and 46 kV |
| AS/NZS 3808 | Power cables for rated voltages 1kV to 33kV |
| DIN VDE 0276 Part 620 | Distribution cables of nominal voltages 3.6kV to 20.8/36kV |
| AS/NZS 1429.1 | Cables with extruded insulation and voltage ratings 3.6/6(7.2)kV to 19/33(36)kV |
| MV Cable | MV Cable Description |
|---|---|
| N2XSY/NA2XSY | Single core Copper (N) or Aluminium (NA) XLPE/PVC cables in accordance with HD620 10C and IEC60502-2. Available as 3-core variants under references N2XSEY. |
| N2XS(F)2Y/NA2XS(F)2Y | Single core Copper (N) or Aluminium (NA) XLPE/PE cables with additional waterblocking (F) tape/screen, in accordance with HD620 10C and IEC60502-2. |
| N2XS(FL)2Y/NA2XS(FL)2Y | Single core Copper (N) or Aluminium (NA) XLPE/PE cables with both longitudinal waterblocking (F) and laminated moisture barrier (L) to prevent moisture ingress. |
| MV-90 | Medium Voltage power cables designed for use up to 35kV (5kV to 35kV range), certified under UL 1072 with a maximum continuous conductor operating temperature of 90°C. |
| MV-105 | Medium Voltage power cables designed for use up to 35kV (5kV to 35kV range), certified under UL 1072 with an elevated maximum continuous conductor operating temperature of 105°C. |
| MV Cable Construction | MV Cable Materials |
|---|---|
| Conductor | Copper or Aluminium – Class 1 solid, Class 2 stranded (circular, circular compacted, sectorial). Some flexible MV cables for dynamic equipment also available. |
| Optional: Conductor Waterblocking | Swellable powders or swellable yarns in stranded interstices |
| Conductor Screen | Semi-Conductive Layer |
| Insulation | XLPE (Cross-linked Polyethylene) or EPR (Ethylene Propylene Rubber) |
| Insulation Screen | Semi-Conductive Layer |
| Optional: Waterblocking – Longitudinal | Swellable powders or tape |
| Metallic Screen | Copper Wires and/or Copper Tape (around individual cores) |
| Optional: Waterblocking – Longitudinal | Swellable Tape |
| Optional: Inner Sheath | Applied where Armour is also applied. PVC or LSZH compound |
| Optional: Armour | Single Core: Aluminium Wires / Tape Multi-Core: Galvanised Steel Wires / Tape (Wires can be circular or flat, tapes can be single or double layer flat or corrugated) |
| Optional: Waterblocking – Radial | Aluminium/PET Tape with the aluminium side tightly bonded to outer sheath |
| Outer Sheath | LDPE, MDPE (Low/Medium Density Polyethylene), PVC (Polyvinyl Chloride), LSZH (Low Smoke Zero Halogen). Additives to offer resistance to UV, oils & greases, water, flames, termites, and other environmental factors can be added as required. |
