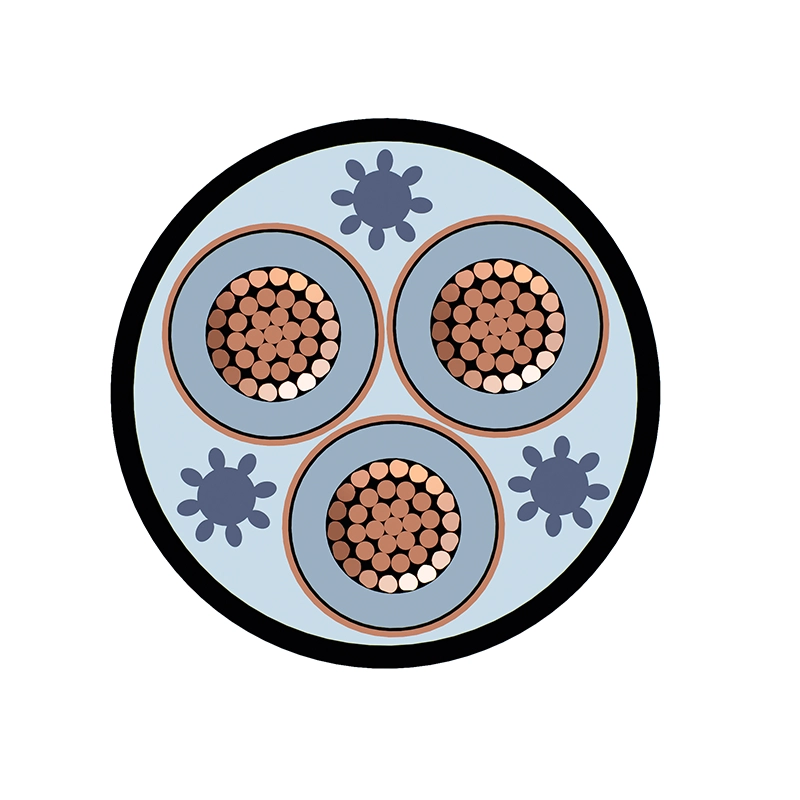

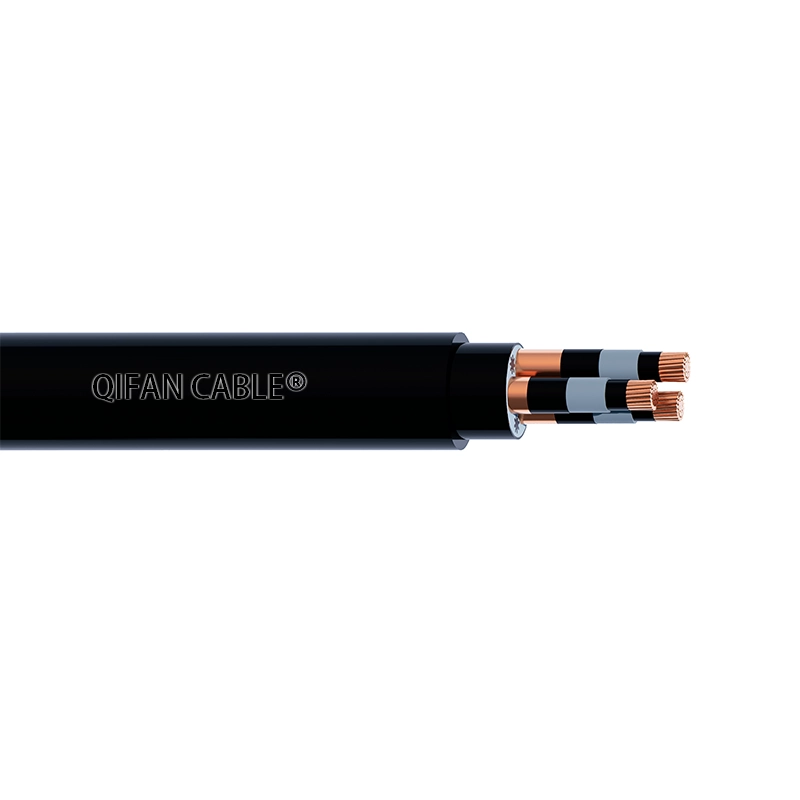

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable

01 / Construction & ratings

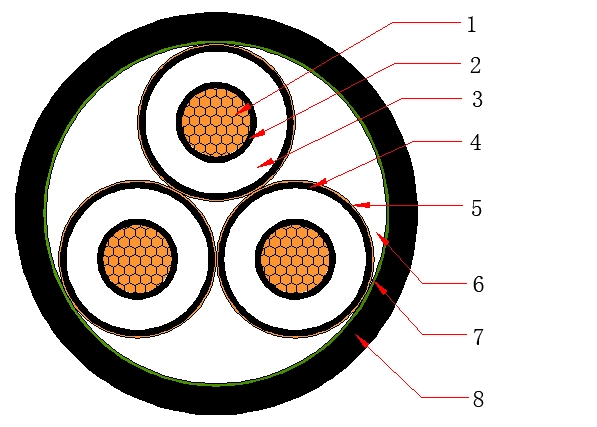

Construction & ratings

0.7: Soil condition: Very wet; Meteorological condition: Continuous rainfall
1.0: Soil condition: Wet; Meteorological condition: Normal rainfall
2.0: Soil condition: Dry; Meteorological condition: Infrequent rainfall
3.0: Soil condition: Very dry; Meteorological condition: Rare or no rainfall

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable

02 / Technical data

Technical data

Product identifiers, units and manufacturer specification data are kept in their original form.

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 01
Model Code	Cross-section	Conductor Diameter	Nominal Insulation Thickness	Approx. Outer Diameter of Cable	Approx. Cable Weight
Model Code	mm²	mm	mm	mm	kg/km
YJV-8.7/15kV	1*25	5.59	4.5	20.87	633.8
YJV-8.7/15kV	1*35	6.62	4.5	22.07	757.6
YJV-8.7/15kV	1*50	7.65	4.5	23.10	894.1
YJV-8.7/15kV	1*70	9.21	4.5	24.83	1132.3
YJV-8.7/15kV	1*95	10.78	4.5	26.40	1407.4
YJV-8.7/15kV	1*120	12.12	4.5	27.91	1673.0
YJV-8.7/15kV	1*150	13.69	4.5	29.48	1961.3
YJV-8.7/15kV	1*185	15.21	4.5	31.17	2338.4
YJV-8.7/15kV	1*240	17.40	4.5	33.53	2919.5
YJV-8.7/15kV	1*300	19.55	4.5	35.68	3512.0
YJV-8.7/15kV	1*400	22.05	4.5	38.35	4328.2
YJV-8.7/15kV	1*500	25.00	4.5	42.27	5445.2
YJV-8.7/15kV	1*630	28.40	4.5	45.84	6833.2
YJV-8.7/15kV	1*800	33.70	4.5	51.48	8730.0
YJV-8.7/15kV	3*25	5.59	4.5	42.46	2104.5
YJV-8.7/15kV	3*35	6.62	4.5	44.85	2488.1
YJV-8.7/15kV	3*50	7.65	4.5	47.25	2949.8
YJV-8.7/15kV	3*70	9.21	4.5	50.79	3689.8
YJV-8.7/15kV	3*95	10.78	4.5	54.35	4587.8
YJV-8.7/15kV	3*120	12.12	4.5	57.41	5407.0
YJV-8.7/15kV	3*150	13.69	4.5	60.97	6396.5
YJV-8.7/15kV	3*185	15.21	4.5	64.43	7557.8
YJV-8.7/15kV	3*240	17.40	4.5	69.50	9378.9
YJV-8.7/15kV	3*300	19.55	4.5	74.48	11333.1
YJV-8.7/15kV	3*400	22.05	4.5	80.22	13971.7
YJV-8.7/15kV	3*500	25.00	4.5	88.66	17660.3
YJV-8.7/15kV	3*630	28.40	4.5	96.35	22018.8

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 02
Cross-section	Max. Coductor DC Resistance at 20 ℃	Max. Coductor AC Resistance at 90 ℃	Capacitance	Fault Current Capacity		Positive and Negative Sequence Impedance		Zero-sequence impedance (single-end grounded
Cross-section	Max. Coductor DC Resistance at 20 ℃	Max. Coductor AC Resistance at 90 ℃	Capacitance	Conductor	Metallic Screen	Trefoil	Flat	Trefoil	Flat
mm²	Ω/km	Ω/km	μF/km	kA/1s	kA/1s	Ω/km	Ω/km	Ω/km	Ω/km
1×25	0.727	0.927	0.1778	3.7	0.73	0.927+j0.142	0.927+j0.201	1.075+j0.857	1.075+j0.770
1×35	0.524	0.668	0.1875	5.1	0.73	0.668+j0.134	0.668+j0.192	0.816+j0.843	0.816+j0.756
1×50	0.387	0.494	0.2036	7.3	0.73	0.494+j0.125	0.494+j0.183	0.642+j0.826	0.642+j0.739
1×70	0.268	0.342	0.2291	10.2	0.73	0.342+j0.119	0.342+j0.177	0.490+j0.807	0.490+j0.720
1×95	0.193	0.246	0.2561	13.8	0.73	0.247+j0.114	0.246+j0.172	0.394+j0.788	0.394+j0.701
1×120	0.153	0.196	0.2766	17.4	0.73	0.196+j0.109	0.196+j0.167	0.344+j0.775	0.343+j0.688
1×150	0.124	0.159	0.2986	21.8	0.73	0.159+j0.106	0.159+j0.164	0.307+j0.762	0.307+j0.675
1×185	0.0991	0.1271	0.3238	26.8	0.73	0.127+j0.102	0.127+j0.160	0.275+j0.749	0.275+j0.662
1×240	0.0754	0.0971	0.3582	34.7	0.73	0.098+j0.099	0.097+j0.157	0.245+j0.731	0.245+j0.644
1×300	0.0601	0.0779	0.3910	43.4	0.73	0.079+j0.096	0.078+j0.154	0.226+j0.716	0.226+j0.629
1×400	0.0470	0.0616	0.4299	57.8	0.73	0.062+j0.091	0.062+j0.149	0.210+j0.699	0.209+j0.611
1×500	0.0366	0.0487	0.4781	72.2	0.73	0.050+j0.089	0.049+j0.147	0.198+j0.682	0.197+j0.594
1×630	0.0283	0.0388	0.5309	90.8	0.73	0.040+j0.087	0.039+j0.145	0.188+j0.664	0.187+j0.577
1×800	0.0221	0.0315	0.6209	115.3	0.73	0.034+j0.087	0.032+j0.145	0.181+j0.642	0.179+j0.554

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 03
Cross-section	Max. Coductor DC Resistance at 20 ℃	Max. Coductor AC Resistance at 90 ℃	Capacitance	Inductance	Impedance	Fault Current Capacity		Positive and Negative Sequence Impedance	Zero-sequence impedance (single-end grounded ）
Cross-section	Max. Coductor DC Resistance at 20 ℃	Max. Coductor AC Resistance at 90 ℃	Capacitance	Inductance	Impedance	Conductor	Metallic Screen	Positive and Negative Sequence Impedance	Zero-sequence impedance (single-end grounded ）
mm²	Ω/km	Ω/km	μF/km	mH/km	Ω/km	kA/1s	kA/1s	Ω/km	Ω/km
3×25	0.727	0.927	0.1778	0.4278	0.9368	3.7	1.92	0.927+j0.130	1.075+j0.882
3×35	0.524	0.668	0.1875	0.4152	0.6809	5.1	1.92	0.668+j0.121	0.817+j0.867
3×50	0.387	0.494	0.2036	0.3971	0.5092	7.3	1.92	0.494+j0.113	0.642+j0.850
3×70	0.268	0.342	0.2291	0.3658	0.3609	10.2	1.92	0.342+j0.108	0.490+j0.830
3×95	0.193	0.247	0.2561	0.3469	0.2696	13.8	1.92	0.247+j0.103	0.395+j0.810
3×120	0.153	0.196	0.2766	0.3352	0.2223	17.4	1.92	0.196+j0.099	0.344+j0.796
3×150	0.124	0.159	0.2986	0.3220	0.1885	21.8	1.92	0.159+j0.095	0.307+j0.782
3×185	0.0991	0.1276	0.3238	0.3117	0.1608	26.8	1.92	0.128+j0.092	0.276+j0.768
3×240	0.0754	0.0978	0.3582	0.2999	0.1358	34.7	1.92	0.098+j0.089	0.246+j0.751
3×300	0.0601	0.0788	0.3910	0.2893	0.1203	43.4	1.92	0.079+j0.086	0.227+j0.735
3×400	0.0470	0.0628	0.4299	0.2802	0.1081	57.8	1.92	0.063+j0.082	0.211+j0.717
3×500	0.0366	0.0504	0.4781	0.2632	0.0968	72.2	1.92	0.050+j0.08	0.199+j0.699
3×630	0.0283	0.0409	0.5309	0.2521	0.0891	90.8	1.92	0.041+j0.078	0.189+j0.681

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 04
Conductor operating temperature ( ℃ )	Temperature in air ( ℃ )
Conductor operating temperature ( ℃ )	20	25	30	35	40	45	50	55
90	1.21	1.16	1.11	1.06	1.00	0.94	0.88	0.81

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 05
Conductor operating temperature ( ℃ )	Temperature in soil ( ℃ )
Conductor operating temperature ( ℃ )	10	15	20	25	30	35
90	1.11	1.07	1.04	1.00	0.96	0.92

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 06
Conductor operating temperature ( ℃ )	Soil thermal resistivity (K·m/W) -direct burial
Conductor operating temperature ( ℃ )	0.7	1	1.2	1.5	2	2.5	3
90	1.13	1.00	0.93	0.86	0.76	0.69	0.64

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 07
Conductor operating temperature ( ℃ )	Soil thermal resistivity (K·m/W) -conduit burial
Conductor operating temperature ( ℃ )	0.7	1	1.2	1.5	2	2.5	3
90	1.08	1.00	0.96	0.90	0.82	0.77	0.72

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 08
Conductor operating temperature ( ℃ ) )	Burial depth in soil (m) -direct burial
Conductor operating temperature ( ℃ ) )	0.5	0.7	1.0	1.5	2.0	2.5
90	1.07	1.03	1.00	0.96	0.94	0.92

8.7/15(17.5)kV CU XLPE PVC Un-armoured Cable · 09
Conductor operating temperature ( ℃ )	Burial depth in soil (m) – in conduit
Conductor operating temperature ( ℃ )	0.5	0.7	1.0	1.5	2.0	2.5
90	1.04	1.02	1.00	0.98	0.96	0.95

Before you specify

What information should I include in an inquiry?

Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.

Can I use these tables to make the final cable selection?

Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.

How can I keep a copy of this specification?

Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.

Can the team review a project specification?

Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
