01 / Construction & ratings

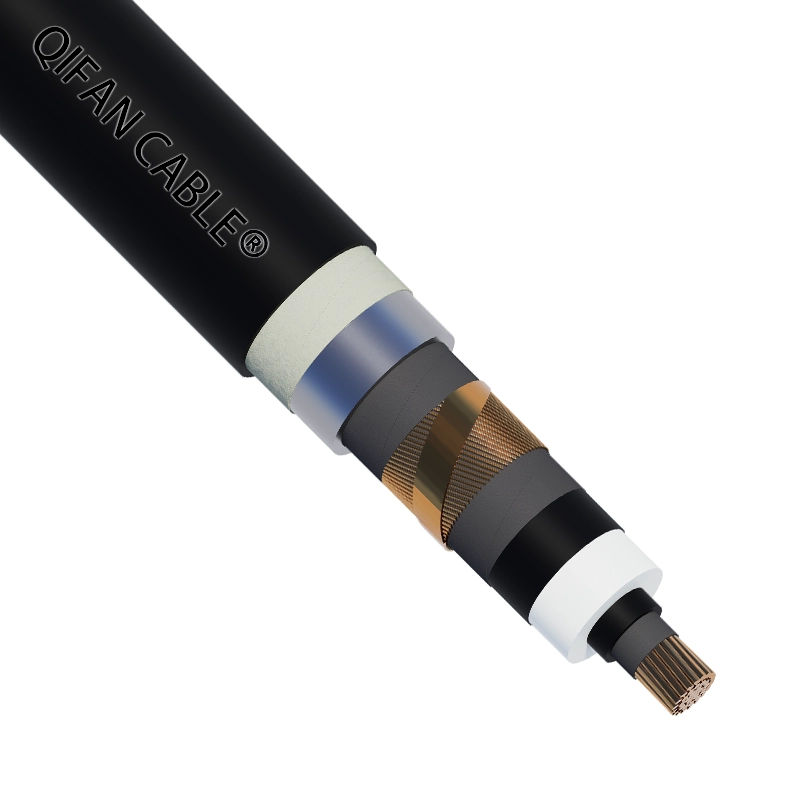

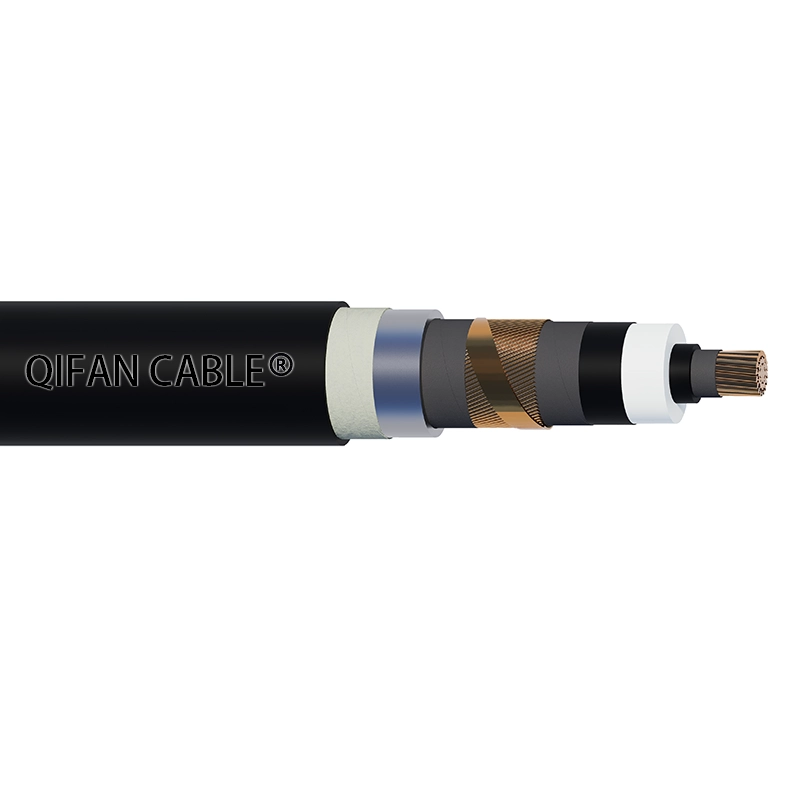

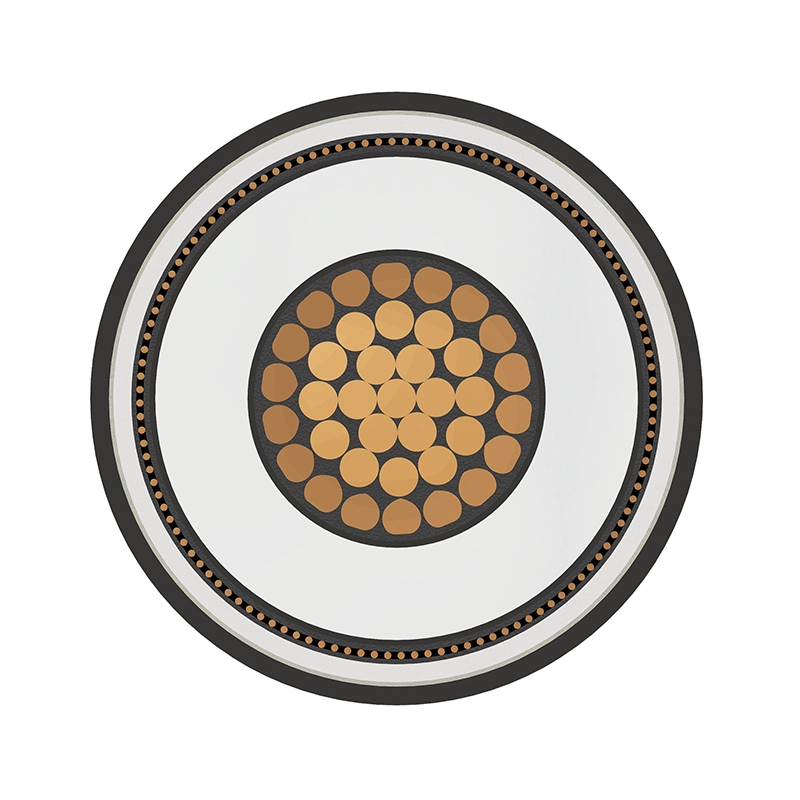

Construction & ratings
- Cable design: IEC 60840
- Conductor: IEC 60228
- Conductor – Plain annealed class 2 circular compacted conductor or segment copper conductor or Aluminum Class 2 Conductor
- Binder tape – Semi-conductive Tetoron tape
- Conductor screen – Semi-conductive compound
- Insulation – Cross linked polyethylene (XLPE)
- Insulation screen – Semi-conductive compound
- Watertight Bedding – Semi-conducting water swellable tape
- Metal screen – Copper wire
- Metal sheath(screen) – Weld corrugated aluminum sheath coated asphalt
- Radial direction watertight layer – Aluminum plastic composite tape
- Outer sheath – High density polyethylene (HDPE) coated graphite
- – Polyvinyl chloride compound (PVC) coated graphite
- 1 core; 240~2000mm2
- Note：1. Below 800 square is a circular compact conductor
- 2. 800 square can be a circular compacted conductor or segment conductor
- 3. 800 square above is segment conductor
- Conductor operating temperature: -15℃~90℃
- Min. temperatrue laying condition: 0℃
- Conductor emergency operating temperature: 105℃
- Conductor short-circuit operating temperature (5s): 250℃
- Rated voltage: 64/110(123) kV
- AC High voltage test: 2.5U 0 for 30min
- Partial Discharge at 1.5 U 0 : 10PC or better
- Core identification: Nature or according to the customer’s request
- Outer sheath: Black or according to customer requirements
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Nominal Cross-section (mm²) | Conductor Type | Diameter (mm) | Insulation Nominal Thickness (mm) | Insulation Outer Diameter (mm) | Copper-Wire Screen Section (mm²) | Sheath Nominal Thickness (mm) | Cable Overall Outer Diameter (mm) | Approx. Mass (kg/km) – YJV | Approx. Mass (kg/km) – YJY | DC Resistance at 20°C (Ω/km) | Capacitance at 20°C (μF/km) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1×240 | Circular compact | 18.4 | 19.0 | 59.2 | 95 | 4.0 | 74.4 | 6996 | 5535 | 0.0754 | 0.130 |
| 1×300 | Circular compact | 20.6 | 18.5 | 60.4 | 95 | 4.0 | 75.6 | 7621 | 5777 | 0.0601 | 0.141 |
| 1×400 | Circular compact | 23.4 | 17.5 | 61.2 | 95 | 4.0 | 76.4 | 8370 | 6007 | 0.0470 | 0.167 |
| 1×500 | Circular compact | 26.6 | 17.0 | 63.4 | 95 | 4.0 | 78.6 | 9472 | 6440 | 0.0336 | 0.182 |
| 1×630 | Circular compact | 30.0 | 18.5 | 65.8 | 95 | 4.5 | 82.0 | 10840 | 6960 | 0.0283 | 0.201 |
| 1×800 | Circular compact | 34.0 | 16.0 | 68.8 | 95 | 4.5 | 85.0 | 12574 | 7618 | 0.0221 | 0.213 |
| 1×800 | Segmented | 35.0 | 16.0 | 71.1 | 95 | 4.5 | 87.3 | 12860 | 7904 | 0.0221 | 0.224 |
| 1×1000 | Segmented | 39.0 | 16.0 | 75.1 | 95 | 4.5 | 91.3 | 15206 | 8988 | 0.0178 | 0.252 |
| 1×1200 | Segmented | 42.6 | 16.0 | 78.7 | 95 | 5.0 | 95.9 | 17370 | 10007 | 0.0151 | 0.268 |
| 1×1400 | Segmented | 45.2 | 16.0 | 81.3 | 95 | 5.0 | 98.5 | 19369 | 10769 | 0.0129 | 0.282 |
| 1×1600 | Segmented | 48.5 | 16.0 | 84.6 | 95 | 5.0 | 101.8 | 21336 | 11563 | 0.0113 | 0.295 |
| 1×1800 | Segmented | 50.8 | 16.0 | 86.9 | 95 | 5.0 | 104.1 | 23289 | 12112 | 0.0101 | 0.306 |
| 1×2000 | Segmented | 54.0 | 16.0 | 90.1 | 95 | 5.0 | 107.3 | 25540 | 13166 | 0.0090 | 0.322 |
| 1×2200 | Segmented | 57.4 | 16.0 | 93.5 | 95 | 5.0 | 110.7 | 27607 | 13695 | 0.0083 | 0.335 |
| 1×2500 | Segmented | 61.2 | 16.0 | 97.3 | 95 | 5.0 | 114.5 | 30597 | 15129 | 0.0072 | 0.350 |
