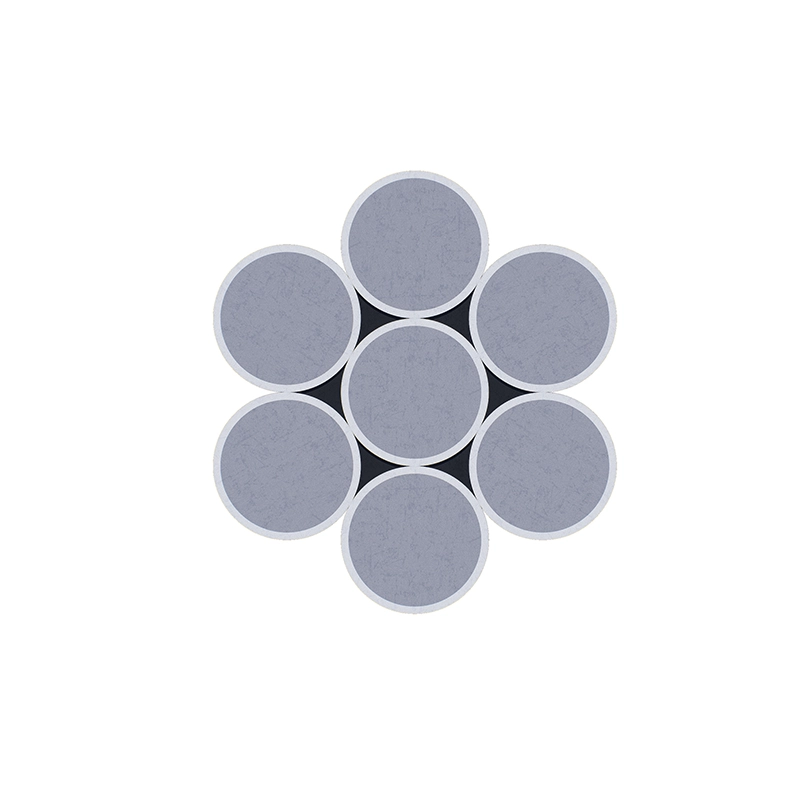

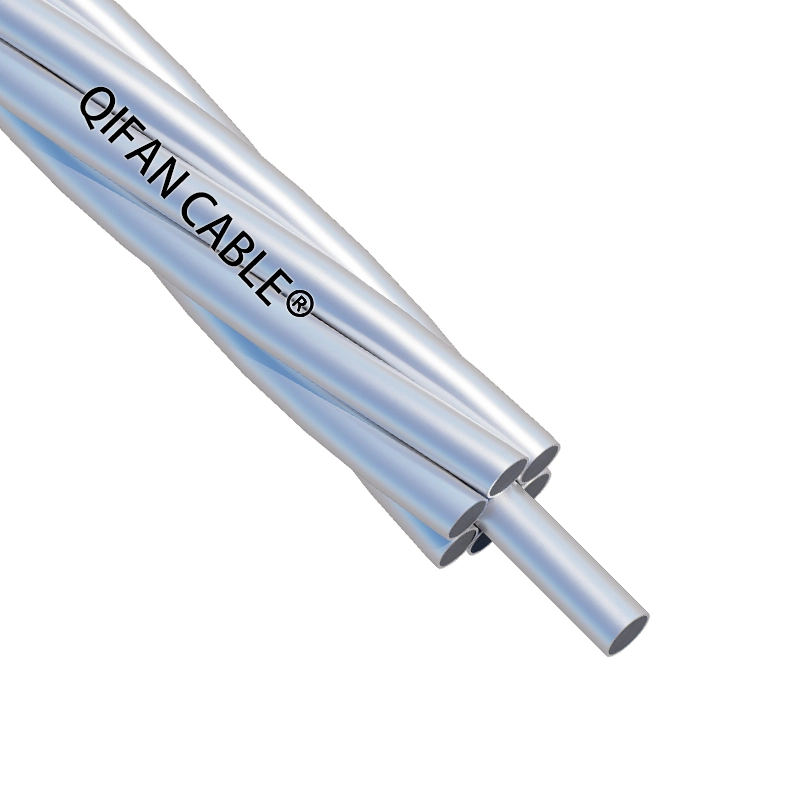

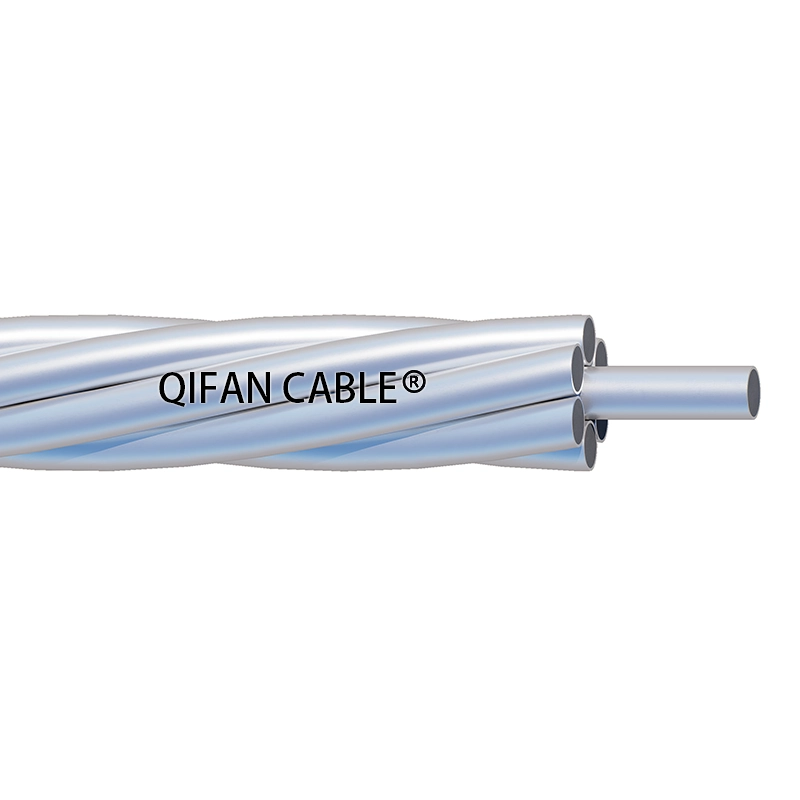

01 / Construction & ratings
Construction & ratings
- IEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
- ASTM B 416 Concentric-Lay-Stranded Aluminum-Clad Steel Conductors
- AS 1222.2 Steel Conductors and stays Bare Overhead Part 2:Aluminum clad (SC/AC)
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| ACS | |||||||
|---|---|---|---|---|---|---|---|
| Code Number | Area | No.of wires | Diameter | Weight | Rated Strengh | Max.D.C. Resistance at 20 ℃ | |
| Wire | Cond. | ||||||
| mm 2 | mm | mm | kg/km | kN | Ω/km | ||
| 3 NO.5AWG | 50.32 | 3 | 4.62 | 9.96 | 334.1 | 54.42 | 1.699 |
| 3 NO.6AWG | 39 | 3 | 4.11 | 8.87 | 265 | 45.74 | 2.142 |
| 3 NO.7AWG | 31.65 | 3 | 3.67 | 7.9 | 210.1 | 38.36 | 2.701 |
| 3 NO.8AWG | 25.1 | 3 | 3.26 | 7.03 | 166.7 | 32.06 | 3.406 |
| 3 NO.9AWG | 19.9 | 3 | 2.91 | 6.26 | 132.2 | 25.43 | 4.294 |
| 3 NO.10AWG | 15.78 | 3 | 2.59 | 5.58 | 104.8 | 20.16 | 5.415 |
| 7 NO.5AWG | 117.4 | 7 | 4.62 | 13.9 | 781.l | 120.27 | 0.7426 |
| 7 NO.6AWG | 93.1 | 7 | 4.11 | 12.4 | 619.5 | 101.14 | 0.9198 |
| 7 NO.7AWG | 73.87 | 7 | 3.67 | 11 | 491.1 | 84.81 | 1.160O |
| 7 NO.8AWG | 58.56 | 7 | 3.26 | 9.78 | 389.6 | 70.88 | 1.463 |
| 7 NO.9AWG | 46.44 | 7 | 2.91 | 8.71 | 308.9 | 56.2 | 1.844 |
| 7 NO.10AWG | 36.83 | 7 | 2.59 | 7.76 | 245.1 | 44.58 | 2.325 |
| 7 NO.l1AWG | 29.21 | 7 | 2.3 | 6.91 | 194.4 | 35.35 | 2.932 |
| 7 NO.12AWG | 23.16 | 7 | 2.05 | 6.16 | 154.2 | 28.03 | 3.697 |
| 19 NO.5AWG | 318.7 | 19 | 4.62 | 23.1 | 2129 | 326.39 | 0.2698 |
| 19 NO.6AWG | 252.7 | 19 | 4.11 | 20.6 | 1688 | 274.55 | 0.3402 |
| 19 NO.7AWG | 200.4 | 19 | 3.67 | 18.3 | 1339 | 230.18 | 0.429 |
| 1g NO.8AWG | 158.9 | 19 | 3.26 | 16.3 | 1062 | 192.41 | 0.5409 |
| 19 NO.9AWG | 126.1 | 19 | 2.91 | 14.5 | 842 | 152.58 | 0.6821 |
| 19 NO.10AWG | 99.96 | 19 | 2.59 | 12.9 | 667.7 | 121 | 0.8601 |
| 37 NO.5AWG | 620.6 | 37 | 4.62 | 32.3 | 4170 | 635.43 | 0.1394 |
| 37 NO.6AWG | 492.2 | 37 | 4.11 | 28.8 | 3307 | 534.85 | 0.1757 |
| 37 NO.7AWG | 390.3 | 37 | 3.67 | 25.7 | 2623 | 448.09 | 0.2216 |
| 37 NO.aAWG | 309.5 | 37 | 3.26 | 22.9 | 2080 | 374.67 | 0.2794 |
| 37 NO.9AWG | 245.5 | 37 | 2.91 | 20.3 | 1649 | 279.11 | 0.3523 |
| 37 NO.10AWG | 194.7 | 37 | 2.59 | 17.9 | 1308 | 235.61 | 0.4443 |
| ACS(SC/AC) | ||||||
|---|---|---|---|---|---|---|
| Stranding and wire diameter | Approx. overall diameter | Cross-sectional area | Approx. mass per km | Calculated breaking load (CBL) | Equivalent aluminium area | Direct current resistance per km at 20 ℃ |
| mm | mm | mm 2 | kg | kN | mm 2 | Ω |
| 3/2.75 | 5.93 | 17.82 | 118 | 22.7 | 5.91 | 4.8 |
| 3/3.00 | 6.47 | 21.21 | 141 | 27 | 7.03 | 4.02 |
| 3/3.25 | 7 | 24.89 | 165 | 31.6 | 8.26 | 3.42 |
| 3/3.75 | 8.08 | 33.12 | 220 | 39.3 | 11 | 2.58 |
| 7/2.75 | 8.25 | 41.58 | 277 | 50.1 | 13.7 | 2.06 |
| 7/3.00 | 9 | 49.48 | 330 | 59.7 | 16.3 | 1.73 |
| 7/3.25 | 9.75 | 58.07 | 387 | 69.9 | 19.2 | 1.47 |
| 7/3.75 | 11.3 | 77.28 | 515 | 86.9 | 25.5 | 1.11 |
| 7/4.25 | 12.8 | 99.33 | 662 | 105 | 32.8 | 0.864 |
| 19/2.75 | 13.8 | 112.9 | 755 | 136 | 37.1 | 0.764 |
| 19/3.00 | 15 | 134.3 | 899 | 162 | 44.1 | 0.642 |
| 19/3.25 | 16.3 | 157.6 | 1060 | 189 | 51.8 | 0.545 |
| 19/3.75 | 18.8 | 209.8 | 1410 | 236 | 68.9 | 0.411 |
| 19/4.25 | 21.3 | 269.6 | 1800 | 286 | 88.6 | 0.32 |
