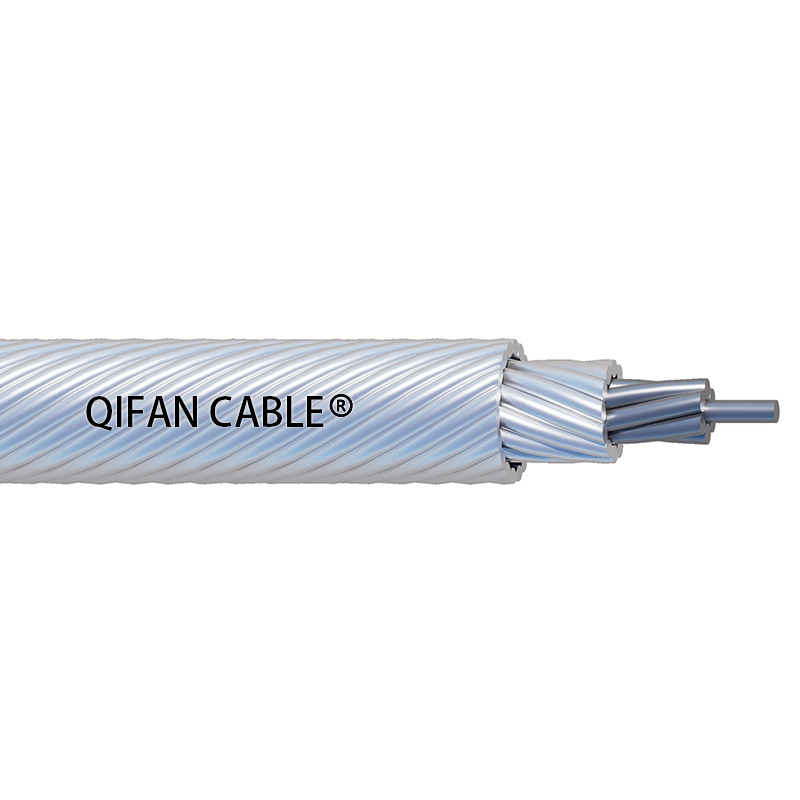

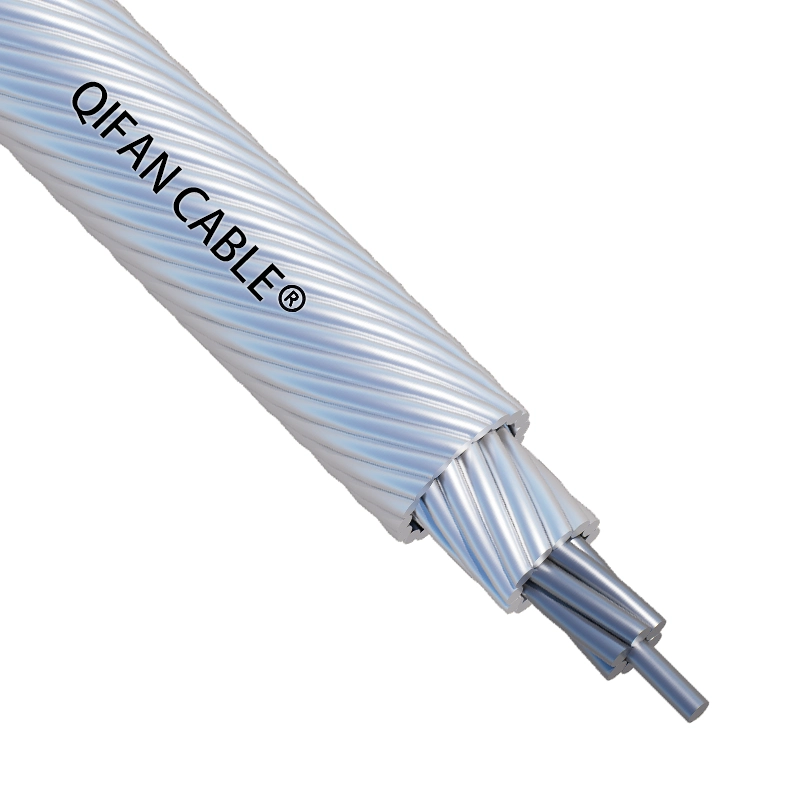

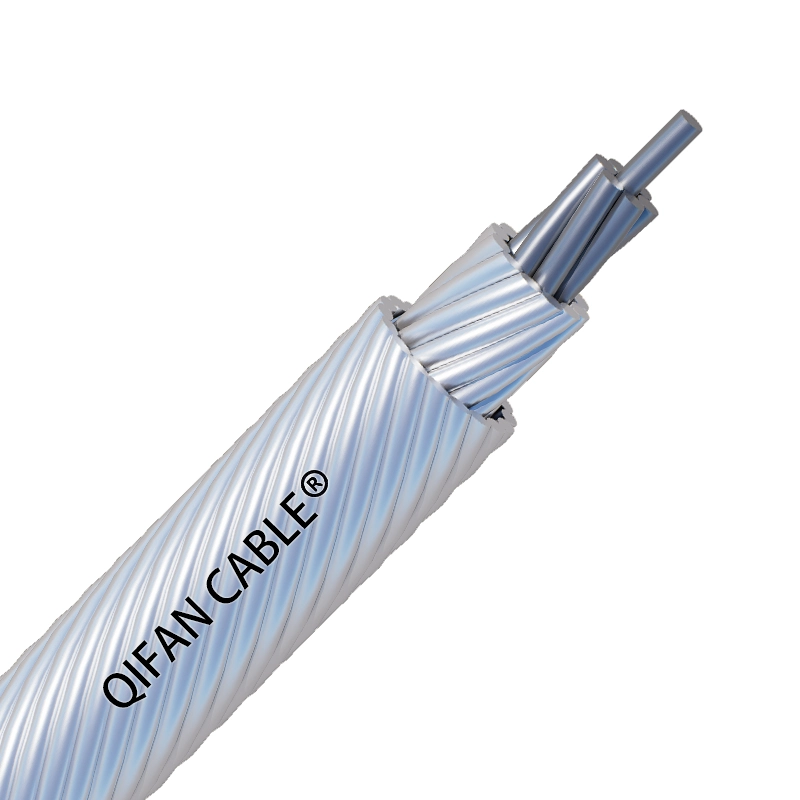

ACSR-Aluminum Conductor Steel Reinforced

01 / Construction & ratings

Construction & ratings

IEC 61089 Round wire concentric lay overhead electrical stranded conductors
ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced
BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors
BS 215-1 Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 2: Aluminium Conductors, Steel-reinforced
AS 3607 Conductors – Bare overhead – Aluminium and aluminium alloy-Steel reinforced
GB/T 1179 Round wire concentric lay overhead electrical stranded conductors

02 / Technical data

Technical data

Product identifiers, units and manufacturer specification data are kept in their original form.

ACSR-Aluminum Conductor Steel Reinforced · 01
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
Code Number	Steel Ratio	Al	Steel	Total	Al	Steel	Al	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	16	2.67	18.7	6	1	1 .84	1.84	1.84	5.53	64.6	6.08	1.7934
25	17	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91	100.9	9.13	1.1478
40	17	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	14.4	0.7174
63	17	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	21.63	0.4555
100	17	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	34.33	0.2869
125	6	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	29.17	0.2304
125	16	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	45.69	0.231
160	6	160	8.89	169	18	1	3.36	3.36	3.36	16.8	509.3	36.18	0.18
160	16	160	26.1	186	26	7	2.8	2.18	6.53	17.7	644.9	57.69	0.1805
200	6	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.7	44.22	0.144
200	16	200	32.6	233	26	7	3.13	2.43	7.3	19.8	806.2	70.13	0.1444
250	10	250	24.6	275	22	7	3.8	2.11	6.34	21.6	880.6	68.72	0.1154
250	16	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1007.7	87.67	0.1155
315	7	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.6	79.03	0.0917
315	16	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	106.83	0.0917
400	7	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	98.36	0.0722
400	13	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	123.04	0.0723
450	7	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	107.47	0.0642
450	13	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	138.42	0.0643
500	7	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	119.41	0.0578
500	13	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	153.8	0.0578
560	7	560	38.7	599	45	7	3.98	2.65	7.96	31.8	1848.2	133.74	0.0516
560	13	560	70.9	631	54	19	3.63	2.18	10.9	32.7	2103.4	172.59	0.0516
630	7	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	150.45	0.0459
630	13	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	191.77	0.0459
710	7	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	169.56	0.0407
710	13	710	89.9	800	54	19	4.09	2.45	12.3	36.8	2666.8	216.12	0.0407
800	4	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	167.41	0.0361
	8	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	205.33	0.0362
	13	800	101	901	54	19	4.34	2.61	13	39.1	3004.9	243.52	0.0362
900	4	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	188.33	0.0321
900	8	900	75	975	84	7	3.69	3.69	11.1	40.6	3074.2	226.5	0.0322
1000	4	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1	3100.3	209.26	0.0289
1120	4	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5	3464.9	234.53	0.0258
1120	8	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	283.17	0.0258
1250	8	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	316.04	0.0232
1250	4	1250	52.8	1303	72	19	4.7	1.88	9.4	47	3867.1	261.75	0.0231

ACSR-Aluminum Conductor Steel Reinforced · 02
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Steel Ratio	Al	Steel	Total	Al	Steel	Al	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53	64.6	6.45	1.7934
25	17	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91	100.9	9.71	1.1478
40	17	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	15.33	0.7174
63	17	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	22.37	0.4555
100	17	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	35.5	0.2869
125	6	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	30.14	0.2304
125	16	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	48.54	0.231
160	6	160	8.89	169	18	1	3.36	3.36	3.36	16.8	509.3	37.42	0.18
160	16	160	26.1	186	26	7	2.8	2.18	6.53	17.7	644.9	61.34	0.1805
200	6	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.7	45	0.144
200	16	200	32.6	233	26	7	3.13	2.43	7.3	19.8	806.2	74.69	0.1444
250	10	250	24.6	275	22	7	3.8	2.11	6.34	21.6	880.6	72.16	0.1154
250	16	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1007.7	93.37	0.1155
315	7	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.6	82.08	0.0917
315	16	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	114.02	0.0917
400	7	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	102.23	0.0722
400	13	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	130.3	0.0723
450	7	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	111.82	0.0642
450	13	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	146.58	0.0643
500	7	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	124.25	0.0578
500	13	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	162.87	0.0578
560	7	560	38.7	599	45	7	3.98	2.65	7.96	31.8	1848.2	139.16	0.0516
560	13	560	70.9	631	54	19	3.63	2.18	10.9	32.7	2103.4	182.52	0.0516
630	7	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	156.55	0.0459
630	13	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	202.94	0.0459
710	7	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	176.43	0.0407
710	13	710	89.9	800	54	19	4.09	2.45	12.3	36.8	2666.8	228.71	0.0407
800	4	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	172.25	0.0361
800	8	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	214.67	0.0362
800	13	800	101	901	54	19	4.34	2.61	13	39.1	3004.9	257.71	0.0362
900	4	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	193.78	0.0321
900	8	900	75	975	84	7	3.69	3.69	11.1	40.6	3074.2	231.75	0.0322
1000	4	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1	3100.3	215.31	0.0289
1120	4	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5	3464.9	241.15	0.0258
1120	8	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	295.94	0.0258
1250	4	1250	52.8	1303	72	19	4.7	1.88	9.4	47	3867.1	269.14	0.0231
1250	8	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	330.29	0.0232

ACSR-Aluminum Conductor Steel Reinforced · 03
Code Number	Steel Ratio	Areas			No.of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Steel Ratio	Al	Steel	Total	Al	Steel	Al	Steel	Core	Cond.	Linear Mass	Rated Strength	D.C. Resistance
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53	64.6	6.83	1.7934
25	17	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91	100.9	10.25	1.1478
40	17	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	16.2	0.7174
63	17	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	24.15	0.4555
100	17	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	38.33	0.2869
125	6	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	31.04	0.2304
125	16	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	51.39	0.231
160	6	160	8.89	169	18	1	3.36	3.36	3.36	16.8	509.3	38.67	0.18
160	16	160	26.1	186	26	7	2.8	2.18	6.53	17.7	644.9	64.99	0.1805
200	6	200	11.l	211	18	1	3.76	3.76	3.76	18.8	636.7	46.89	0.144
200	16	200	32.6	233	26	7	3.13	2.43	7.3	19.8	806.2	78.93	0.1444
250	10	250	24.6	275	22	7	3.8	2.11	6.34	21.6	880.6	75.6	0.1154
250	16	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1007.7	98.66	0.1155
315	7	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.6	85.13	0.0917
315	16	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	121.2	0.0917
400	7	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	106.1	0.0722
400	13	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	137.56	0.0723
450	7	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	115.87	0.0642
450	13	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	154.75	0.0643
500	7	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	128.74	0.0578
500	13	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	171.94	0.0578
560	7	560	38.7	599	45	7	3.98	2.65	7.96	31.8	1848.2	144.19	0.0516
560	13	560	70.9	631	54	19	3.63	2.18	10.9	32.7	2103.4	192.45	0.0516
630	7	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	162.21	0.0459
630	13	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	213.32	0.0459
710	7	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	182.81	0.0407
710	13	710	89.9	800	54	19	4.09	2.45	12.3	36.8	2666.8	240.41	0.0407
800	4	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	176.74	0.0361
800	8	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	224	0.0362
800	13	800	101	901	54	19	4.34	2.61	13	39.1	3004.9	270.88	0.0362
900	4	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	198.83	0.0321
900	8	900	75	975	84	7	3.69	3.69	11.1	40.6	3074.2	244.5	0.0322
1000	4	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1	3100.3	220.93	0.0289
1120	4	1120	47.3	1167	72	19	4.48	1.78	8.9	44.5	3464.9	247.77	0.0258
1120	8	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	307.79	0.0258
1250	4	1250	52.8	1303	72	19	4.7	1.88	9.4	47	3867.1	276.53	0.0231
1250	8	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	343.52	0.0232

ACSR-Aluminum Conductor Steel Reinforced · 04
ACSR
Code Name	Area				Stranding and Wire Diameter		Approx. Overall Diameter	Unit Weight			Nominal Breaking Load	Nominal DC Resistance at 20℃
	Nominal	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Diameter	Alum.	Steel	Total	Nominal Breaking Load	Nominal DC Resistance at 20℃
	AWG or MCM	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	kN	Ω/km
TURKEY	6	13.3	2.21	15.5	6/1.68	1/1.68	5.04	37	17	54	5.29	2.1577
THRUSH	5	16.77	2.8	19.56	6/1.89	1/1.89	5.67	46	22	68	6.63	1.7111
SWAN	4	21.15	3.52	24.67	6/2.12	1/2.12	6.36	58	27	85	8.27	1.3565
SWANATE	4	21.15	5.37	26.51	7/1.96	1/2.61	6.53	58	42	100	10.5	1.3565
SPARROW	2	33.62	5.61	39.23	6/2.67	1/2.67	8.01	92	44	136	12.68	0.8532
SPARATE	2	33.62	8.55	42.17	7/2.47	1/3.30	8.24	92	67	159	16.19	0.8532
ROBIN	1	42.41	7.07	49.47	6/3.00	1/3.00	9	116	55	171	15.79	0.6765
RAVEN	1/0	53.51	8.92	62.43	6/3.37	1/3.37	10.11	147	69	216	19.48	0.5362
QUAIL	2/0	67.44	11.23	78.68	6/3.78	1/3.78	11.34	185	88	273	23.57	0.4254
PIGEON	3/0	85.02	14.17	99.19	6/4.25	1/4.25	12.75	233	110	343	29.45	0.3374
PENGUIN	4/0	107.22	17.87	125.09	6/4.77	1/4.77	14.31	294	139	433	37.14	0.2676
WAXWING	266.8	135.19	7.5	142.69	18/3.09	1/3.09	15.45	373	58	431	30.6	0.2133
PARTRIDGE	266.8	135.19	22.02	157.21	26/2.57	7/2.00	16.28	374	172	546	50.26	0.2092
OSTRICH	300	152.01	24.73	176.74	26/2.73	7/2.12	17.28	421	193	614	56.49	0.186
MERLIN	336.4	170.45	9.47	179.92	18/3.47	1/3.47	17.35	470	74	544	38.61	0.1691
LINNET	336.4	170.45	27.72	198.17	26/2.89	7/2.25	18.31	472	217	689	62.72	0.1659
ORIOLE	336.4	170.45	39.78	210.23	30/2.69	7/2.69	18.83	473	311	784	76.95	0.1642
CHICKADEE	397.5	201.41	11.19	212.6	18/3.77	1/3.77	18.85	555	87	642	44.21	0.1431
BRANT	397.5	201.41	26.11	227.52	24/3.27	7/2.18	19.61	558	204	762	64.94	0.1411
IBIS	397.5	201.41	32.76	234.17	26/3.14	7/2.44	19.88	558	256	814	72.5	0.1404
LARK	397.5	201.41	46.99	248.4	30/2.92	7/2.92	20.44	560	367	927	90.29	0.1393
PELICAN	477	241.7	13.43	255.13	18/4.14	1/4.14	20.7	666	105	771	52.49	0.1193
FLICKER	477	241.7	31.34	273.04	24/3.58	7/2.39	21.49	670	245	915	76.51	0.1176
HAWK	477	241.7	39.33	281.02	26/3.44	7/2.67	21.79	670	308	978	86.74	0.117
HEN	477	241.7	56.4	298.1	30/3.20	7/3.20	22.4	671	441	1112	105.86	0.1161
OSPREY	556.5	281.98	15.66	297.64	18/4.47	1/4.47	22.35	777	122	899	60.94	0.1022
PARAKEET	556.5	281.98	36.54	318.52	24/3.87	7/2.58	23.22	781	286	1067	88.07	0.1008
DOVE	556.5	281.98	45.93	327.91	26/3.72	7/2.89	23.55	781	359	1140	100.52	0.1003
EAGLE	556.5	281.98	65.8	347.78	30/3.46	7/3.46	24.21	783	515	1298	123.65	0.0995
PEACOCK	605	306.55	39.78	346.33	24/4.03	7/2.69	24.2	849	311	1160	96.08	0.0927

ACSR
Code Name	Area				Stranding and Wire Diameter		Approx. Overall Diameter	Unit Weight			Nominal Breaking Load	Nominal DC Resistance at 20℃
	Nominal	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Diameter	Alum.	Steel	Total	Nominal Breaking Load	Nominal DC Resistance at 20℃
	AWG or MCM	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	kN	Ω/km
SQUAB	605	306.55	49.89	356.44	26/3.87	7/3.01	24.51	850	390	1240	108.09	0.0922
WOOD DUCK	605	306.55	71.52	378.07	30/3.61	7/3.61	25.25	851	560	1411	128.55	0.0915
TEAL	605	306.55	69.89	376.44	30/3.61	19/2.16	25.24	851	548	1399	133.44	0.0916
KINGBIRD	636	322.26	17.91	340.17	18/4.78	1/4.78	23.88	889	139	1028	69.83	0.0895
SWIFT	636	322.26	8.95	331.21	36/3.38	1/3.38	23.62	888	70	958	61.38	0.0895
ROOK	636	322.26	41.76	364.02	24/4.14	7/2.76	24.84	893	326	1219	100.52	0.0882
GROSBEAK	636	322.26	52.45	374.71	26/3.97	7/3.09	25.15	893	409	1302	112.09	0.0877
SCOTER	636	322.26	75.19	397.45	30/3.70	7/3.70	25.88	895	589	1484	135.22	0.0871
EGRET	636	322.26	73.54	395.8	30/3.70	19/2.22	25.9	894	576	1470	140.11	0.0871
FLAMINGO	666.6	337.77	43.78	381.55	24/4.23	7/2.82	25.4	936	342	1278	105.42	0.0841
GANNET	666.6	337.77	54.98	392.74	26/4.07	7/3.16	25.76	936	429	1365	117.43	0.0837
STILT	715.5	362.54	46.99	409.53	24/4.39	7/2.92	26.31	1005	367	1372	113.42	0.0784
STARLING	715.5	362.54	59.02	421.57	26/4.21	7/3.28	26.68	1005	461	1466	126.32	0.078
REDWING	715.5	362.54	82.55	445.1	30/3.92	19/2.35	27.43	1006	647	1653	153.9	0.0774
COOT	795	402.83	11.19	414.02	36/3.77	1/3.77	26.41	1110	88	1198	74.73	0.0716
CUCKOO	795	402.83	52.19	455.02	24/4.62	7/3.08	27.74	1116	408	1524	124.1	0.0705
DRAKE	795	402.83	65.6	468.43	26/4.44	7/3.45	28.11	1116	512	1628	140.11	0.0702
TERN	795	402.83	27.84	430.67	45/3.38	7/2.25	27.03	1116	217	1333	98.3	0.0712
CONDOR	795	402.83	52.19	455.02	54/3.08	7/3.08	27.72	1116	408	1524	125.43	0.0705
MALLARD	795	402.83	91.9	494.72	30/4.14	19/2.48	28.96	1119	719	1838	170.8	0.0697
RUDDY	900	456.03	31.54	487.57	45/3.59	7/2.40	28.73	1263	247	1510	108.53	0.0629
CANARY	900	456.03	59.12	515.15	54/3.28	7/3.28	29.52	1263	461	1724	141.89	0.0623
CATBIRD	954	483.39	13.43	496.82	36/4.14	1/4.14	28.95	1333	105	1438	88.07	0.0596
RAIL	954	483.39	33.44	516.83	45/3.70	7/2.47	29.61	1339	262	1601	115.2	0.0593
CARDINAL	954	483.39	62.65	546.04	54/3.38	7/3.38	30.42	1339	490	1829	150.34	0.0588
TANAGER	1033.5	523.67	14.54	538.22	36/4.30	1/4.30	30.12	1443	113	1556	95.19	0.0551
ORTOLAN	1033.5	523.67	36.18	559.86	45/3.85	7/2.57	30.81	1451	283	1734	123.21	0.0548
CURLEW	1033.5	523.67	67.84	591.52	54/3.51	7/3.51	31.68	1451	530	1981	162.8	0.0543
BLUEJAY	1113	563.96	39.03	602.99	45/4.00	7/2.66	31.98	1563	305	1868	132.55	0.0508
FINCH	1113	563.96	71.54	635.49	54/3.65	19/2.19	32.85	1570	560	2130	173.92	0.0507

ACSR
Code Name	Area				Stranding and Wire Diameter		Approx. Overall Diameter	Unit Weight			Nominal Breaking Load	Nominal DC Resistance at 20℃
	Nominal	Alum.	Steel	Total	Alum.	Steel	Approx. Overall Diameter	Alum.	Steel	Total	Nominal Breaking Load	Nominal DC Resistance at 20℃
	AWG or MCM	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	kN	Ω/km
BUNTING	1192.5	604.24	41.76	646	45/4.14	7/2.76	33.12	1674	327	2001	142.34	0.0475
GRACKLE	1192.5	604.24	76.6	680.84	54/3.77	19/2.27	33.97	1682	600	2282	186.37	0.0473
SKYLARK	1272	644.52	17.91	662.43	36/4.78	1/4.78	33.42	1777	140	1917	117.43	0.0447
BITTERN	1272	644.52	44.57	689.09	45/4.27	7/2.85	34.17	1785	349	2134	151.68	0.0445
PHEASANT	1272	644.52	81.66	726.19	54/3.90	19/2.34	35.1	1795	638	2433	193.93	0.0443
DIPPER	1351.5	684.81	47.32	732.12	45/4.40	7/2.93	35.16	1898	368	2266	161.02	0.0419
MARTIN	1351.5	684.81	86.7	771.51	54/4.02	19/2.41	36.17	1906	679	2585	205.94	0.0417
BOBOLINK	1431	725.09	50.14	775.23	45/4.53	7/3.02	36.24	2009	393	2402	170.36	0.0395
PLOVER	1431	725.09	91.9	816.98	54/4.14	19/2.48	37.24	2019	719	2738	218.4	0.0394
NUTHATCH	1510.5	765.37	52.88	818.25	45/4.65	7/3.10	37.2	2120	414	2534	178.36	0.0375
PARROT	1510.5	765.37	96.85	862.22	54/4.25	19/2.55	38.25	2131	759	2890	229.96	0.0373
LAPWING	1590	805.65	55.69	861.34	45/4.77	7/3.18	38.16	2232	435	2667	187.71	0.0356
FALCON	1590	805.65	102.14	907.79	54/4.36	19/2.62	39.26	2243	799	3042	242.42	0.0355
CHUKAR	1780	901.93	73.54	975.47	84/3.70	19/2.22	40.7	2511	575	3086	226.85	0.0319
BLUEBIRD	2156	1092.45	88.91	1181.36	84/4.07	19/2.44	44.76	3036	697	3733	268.21	0.0263
KIWI	2167	1098.02	47.48	1145.5	72/4.41	7/2.94	44.07	3057	370	3427	221.51	0.0263
THRASHER	2312	1171.49	63.79	1235.28	76/4.43	19/2.07	45.77	3264	500	3764	252.2	0.0246
HIGH STRENGTH STRANDING
GROUSE	80	40.54	14.13	54.67	8/2.54	1/4.24	9.32	112	110	222	23.13	0.7112
PETREL	101.8	51.58	30.09	81.67	12/2.34	7/2.34	11.71	143	235	378	46.26	0.5163
MINORCA	110.8	56.14	32.76	88.9	12/2.44	7/2.44	12.22	156	256	412	50.26	0.4743
LEGHORN	134.6	68.2	39.78	107.98	12/2.69	7/2.69	13.46	189	311	500	60.49	0.3905
GUINEA	159	80.57	46.99	127.56	12/2.92	7/2.92	14.63	223	367	590	71.17	0.3306
DOTTEREL	176.9	89.64	52.27	141.91	12/3.08	7/3.08	15.42	248	409	657	76.95	0.2971
DORKING	190.8	96.68	56.4	153.08	12/3.20	7/3.20	16.03	268	441	709	83.18	0.2755
BRAHMA	203.2	102.96	91.9	194.86	16/2.86	19/2.48	18.14	285	722	1007	126.32	0.2481
COCHIN	211.3	107.07	62.46	169.53	12/3.37	7/3.37	16.84	297	488	785	92.07	0.2487

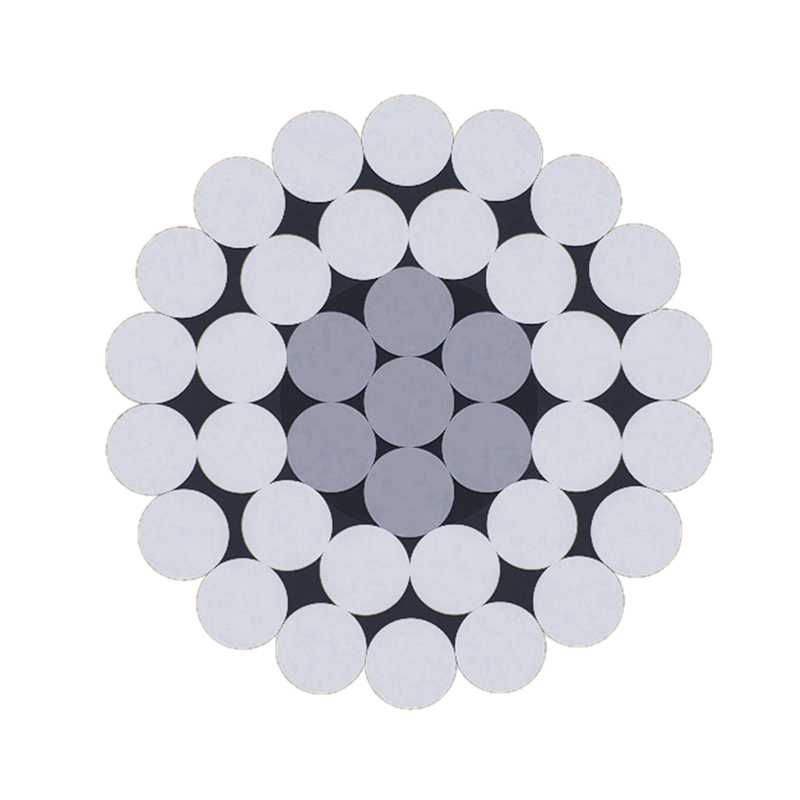

ACSR-Aluminum Conductor Steel Reinforced · 05
ACSR BS EN 50182(Germany)
Code	Old Code	Areas			No. of Wires		Wire Diameter		Diameter		Mass per unit Length	Rated Strength	DC Resistance
		Al	Steel	Total	No. of Wires		Al	Steel	Core	Cond.	Mass per unit Length	Rated Strength	DC Resistance
		mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	Ω/km
15-AL1/3-ST1A	16/2.5	15.3	2.54	17.8	6	1	1.8	1.8	1.8	5.4	61.6	5.8	1.8769
24-AL1/4-ST1A	25/4	23.9	3.98	27.8	6	1	2.25	2.25	2.25	6.75	96.3	8.95	1.2012
34-AL1/6-ST1A	35/6	34.4	5.73	40.1	6	1	2.7	2.7	2.7	8.1	138.7	12.37	0.8342
44-AL1/32-ST1A	44/32	44	31.7	75.6	14	7	2	2.4	7.2	11.2	369.3	44.24	0.6574
48-AL1/8-ST1A	50/8	48.3	8.04	56.3	6	1	3.2	3.2	3.2	9.6	194.8	16.81	0.5939
51-AL1/30-ST1A	50/30	51.2	29.8	81	12	7	2.33	2.33	6.99	11.7	374.7	42.98	0.5644
70-AL1/11-ST1A	70/12	69.9	11.4	81.3	26	7	1.85	1.44	4.32	11.7	282.2	26.27	0.4132
94-AL1/15-ST1A	95/15	94.4	15.3	109.7	26	7	2.15	1.67	5.01	13.6	380.6	34.93	0.306
97-AL1/56-ST1A	95/55	96.5	56.3	152.8	12	7	3.2	3.2	9.6	16	706.8	77.85	0.2992
106-AL1/76-ST1A	105/75	105.7	75.5	181.2	14	19	3.1	2.25	11.3	17.5	885.3	105.82	0.2742
122-AL1/20-ST1A	120/20	121.6	19.8	141.4	26	7	2.44	1.9	5.7	15.5	491	44.5	0.2376
122-AL1/71-ST1A	120/70	122.1	71.3	193.4	12	7	3.6	3.6	10.8	18	894.5	97.92	0.2364
128-AL1/30-ST1A	125/30	127.9	29.8	157.8	30	7	2.33	2.33	6.99	16.3	587	56.41	0.226
149-AL1/24-ST1A	150/25	148.9	24.2	173.1	26	7	2.7	2.1	6.3	17.1	600.8	53.67	0.194
172-AL1/40-ST1A	170/40	171.8	40.1	211.8	30	7	2.7	2.7	8.1	18.9	788.2	74.89	0.1683
184-AL1/30-ST1A	185/30	183.8	29.8	213.6	26	7	3	2.33	6.99	19	741	65.27	0.1571
209-AL1/34-ST1A	210/35	209.1	34.1	243.2	26	7	3.2	2.49	7.47	20.3	844.1	73.36	0.1381
212-AL1/49-ST1A	210/50	212.1	49.5	261.5	30	7	3	3	9	21	973.1	92.46	0.1363
231-AL1/30-ST1A	230/30	230.9	29.8	260.8	24	7	3.5	2.33	6.99	21	870.9	72.13	0.125
243-AL1/39-ST1A	240/40	243.1	39.5	282.5	26	7	3.45	2.68	8.04	21.8	980.1	85.12	0.1188
264-AL1/34-ST1A	265/35	263.7	34.1	297.7	24	7	3.74	2.49	7.47	22.4	994.4	81.04	0.1095
304-AL1/49-ST1A	300/50	304.3	49.5	353.7	26	7	3.86	3	9	24.4	1227.3	105.09	0.0949
305-AL1/39-ST1A	305/40	304.6	39.5	344.1	54	7	2.68	2.68	8.04	24.1	1151.2	96.8	0.0949
339-AL1/30-ST1A	340/30	339.3	29.8	369.1	48	7	3	2.33	6.99	25	1171.2	91.71	0.0852
382-AL1/49-ST1A	380/50	381.7	49.5	431.2	54	7	3	3	9	27	1442.5	121.3	0.0758
386-AL1/34-ST1A	385/35	386	34.1	420.1	48	7	3.2	2.49	7.47	26.7	1333.6	102.56	0.0749
434-AL1/56-ST1A	435/55	434.3	56.3	490.6	54	7	3.2	3.2	9.6	28.8	1641.3	133.59	0.0666
449-AL1/39-ST1A	450/40	448.7	39.5	488.2	48	7	3.45	2.68	8.04	28.7	1549.1	119.05	0.0644
490-AL1/64-ST1A	490/65	490.3	63.6	553.8	54	7	3.4	3.4	10.2	30.6	1852.9	150.81	0.059
494-AL1/34-ST1A	495/35	494.4	34.1	528.4	45	7	3.74	2.49	7.47	29.9	1632.6	117.96	0.0584
511-AL1/45-ST1A	510/45	510.5	45.3	555.8	48	7	3.68	2.87	8.61	30.7	1765.3	133.31	0.0566
550-AL1/71-ST1A	550/70	549.7	71.3	620.9	54	7	3.6	3.6	10.8	32.4	2077.2	166.32	0.0526
562-AL1/49-ST1A	560/50	561.7	49.5	611.2	48	7	3.86	3	9	32.2	1939.5	146.28	0.0515
571-AL1/39-ST1A	570/40	571.2	39.5	610.6	45	7	4.02	2.68	8.04	32.2	1887.1	136.4	0.0506
653-AL1/45-ST1A	650/45	653.5	45.3	698.8	45	7	4.3	2.87	8.61	34.4	2159.9	156.18	0.0442
679-AL1/86-ST1A	680/85	678.6	86	764.5	54	19	4	2.4	12	36	2549.7	206.56	0.0426
1046-AL1/45-ST1A	1045/45	1045.6	45.3	1090.9	72	7	4.3	2.87	8.61	43	3248.2	218.92	0.0277
ACSR BS EN 50182 ( United Kingdom)
Code	Old	Areas			No.of		Wire Diameter		Diameter		Mass per	Rated	DC
	Code	Al	Steel	Total	Wires		Al	Steel	Core	Cond.	Unit Length	Strength	Resistance
		mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	Ω/km
11-AL1/2-ST1A	MOLE	10.6	1.77	12.4	6	1	1.5	1.5	1.5	4.5	42.8	4.14	2.7027
21-AL1/3-ST1A	SQUIRREL	21	3.5	24.5	6	1	2.11	2.11	2.11	6.33	84.7	7.87	1.3659
26-AL1/4-ST1A	GOPHER	26.2	4.37	30.6	6	1	2.36	2.36	2.36	7.08	106	9.58	1.0919
32-AL1/5-ST1A	WEASEL	31.6	5.27	36.9	6	1	2.59	2.59	2.59	7.77	127.6	11.38	0.9065
37-AL1/6-ST1A	FOX	36.7	6.11	42.8	6	1	2.79	2.79	2.79	8.37	148.1	13.21	0.7812
42-AL1/7-ST1A	FERRET	42.4	7.07	49.5	6	1	3	3	3	9	171.2	15.27	0.6757
53-AL1/9-ST1A	RABBIT	52.9	8.81	61.7	6	1	3.35	3.35	3.35	10.1	213.5	18.42	0.5419
63-AL1/11-ST1A	MINK	63.1	10.5	73.6	6	1	3.66	3.66	3.66	11	254.9	21.67	0.454
63-AL1/37-ST1A	SKUNK	63.2	36.9	100.1	12	7	2.59	2.59	7.77	13	463	52.79	0.4568
75-AL1/13-ST1A	BEAVER	75	12.5	87.5	6	1	3.99	3.99	3.99	12	302.9	25.76	0.382
73-AL1/43-ST1A	HORSE	73.4	42.8	116.2	12	7	2.79	2.79	8.37	14	537.3	61.26	0.3936
79-AL1/13-ST1A	RACOON	78.8	13.1	92	6	1	4.09	4.09	4.09	12.3	318.3	27.06	0.3635
84-AL1/14-ST1A	OTTER	83.9	14	97.9	6	1	4.22	4.22	4.22	12.7	338.8	28.81	0.3415
95-AL1/16-ST1A	CAT	95.4	15.9	111.3	6	1	4.5	4.5	4.5	13.5	385.3	32.76	0.3003
105-AL1/17-ST1A	HARE	105	17.5	122.5	6	1	4.72	4.72	4.72	14.2	423.8	36.04	0.273
105-AL1/14-ST1A	DOG	105	13.6	118.5	6	7	4.72	1.57	4.71	14.2	394	32.65	0.2733
132-AL1/20-ST1A	COYOTE	131.7	20.1	151.8	26	7	2.54	1.91	5.73	15.9	520.7	45.86	0.2192
132-AL1/7-ST1A	COUGAR	131.5	7.3	138.8	18	1	3.05	3.05	3.05	15.3	418.8	29.74	0.2188
131-AL1/31-ST1A	TIGER	131.2	30.6	161.9	30	7	2.36	2.36	7.08	16.5	602.2	57.87	0.2202
158-AL1/37-ST1A	WOLF	158.1	36.9	194.9	30	7	2.59	2.59	7.77	18.1	725.3	68.91	0.1829
159-AL1/9-ST1A	DINGO	158.7	8.8	167.5	18	1	3.35	3.35	3.35	16.8	505.2	35.87	0.1814
183-AL1/43-ST1A	LYNX	183.4	42.8	226.2	30	7	2.79	2.79	8.37	19.5	841.6	79.97	0.1576
184-AL1/10-ST1A	CARACAL	184.2	10.2	194.5	18	1	3.61	3.61	3.61	18.1	586.7	40.74	0.1562
ACSR BS EN 50182 ( United Kingdom)
Code	Old	Areas			No.of		Wire Diameter		Diameter		Mass per	Rated	DC
	Code	Al	Steel	Total	Wires		Al	Steel	Core	Cond.	Unit Length	Strength	Resistance
		mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	Ω/km
212-AL1/49-ST1A	PANTHER	212.1	49.5	261.5	30	7	3	3	9	21	973.1	92.46	0.1363
211-AL1/12-ST1A	JAGUAR	210.6	11.7	222.3	18	1	3.86	3.86	3.86	19.3	670.8	46.57	0.1366
238-AL1/56-ST1A	LION	238.3	55.6	293.9	30	7	3.18	3.18	9.54	22.3	1093.4	100.47	0.1213
264-AL1/62-ST1A	BEAR	264.4	61.7	326.1	30	7	3.35	3.35	10.1	23.5	1213.4	111.5	0.1093
324-AL1/76-ST1A	GOAT	324.3	75.7	400	30	7	3.71	3.71	11.1	26	1488.2	135.13	0.0891
375-AL1/88-ST1A	SHEEP	375.1	87.5	462.6	30	7	3.99	3.99	12	27.9	1721.3	156.3	0.0771
374-AL1/48-ST1A	ANTELOPE	374.1	48.5	422.6	54	7	2.97	2.97	8.91	26.7	1413.8	118.88	0.0773
382-AL1/49-ST1A	BISON	381.7	49.5	431.2	54	7	3	3	9	27	1442.5	121.3	0.0758
430-AL1/100-ST1A	DEER	429.6	100.2	529.8	30	7	4.27	4.27	12.8	29.9	1971.4	179	0.0673
429-AL1/56-ST1A	ZEBRA	428.9	55.6	484.5	54	7	3.18	3.18	9.54	28.6	1620.8	131.92	0.0674
477-AL1/111-ST1A	ELK	477.1	111.3	588.5	30	7	4.5	4.5	13.5	31.5	2189.5	198.8	0.0606
476-AL1/62-ST1A	CAMEL	476	61.7	537.7	54	7	3.35	3.35	10.1	30.2	1798.8	146.4	0.0608
528-AL1/69-ST1A	MOOSE	528.5	68.5	597	54	7	3.53	3.53	10.6	31.8	1997.3	159.92	0.0547

ACSR-Aluminum Conductor Steel Reinforced · 06
ACSR/GZ/1350
Code	Stranding and Wire Diameter		Nominal Overall Diameter	Cross-sectional	Approx. Mass	Break.	Equiv. Aluminium Area	D.C.
	Aluminium 1350	Steel	Nominal Overall Diameter	Area	Approx. Mass	Load	Equiv. Aluminium Area	Resistance at 20℃
	mm	mm	mm	mm2	kg/km	kN	mm2	Ω/km
Almond	6/2.50	1/2.50	7.5	34.36	119	10.5	29	0.975
Apricot	6/2.75	1/2.75	8.3	41.58	144	12.6	35.1	0.805
Apple	6/3.00	1/3.00	9	49.48	171	14.9	41.8	0.677
Banana	6/3.75	1/3.75	11.3	77.31	268	22.7	65.2	0.433
Cherry	6/4.75	7/1.60	14.3	120.4	402	33.4	105	0.271
Grape	30/2.50	7/2.50	17.5	181.6	677	63.5	144	0.196
Lemon	30/3.00	7/3.00	21	261.5	973	90.4	207	0.136
Lychee	30/3.25	7/3.25	22.8	306.9	1140	105	243	0.116
Lime	30/3.50	7/3.50	24.5	356	1320	122	282	0.1
Mango	54/3.00	7/3.00	27	431.2	1440	119	373	0.0758
Orange	54/3.25	7/3.25	29.3	506	1690	137	438	0.0646
Olive	54/3.50	7/3.50	31.5	586.9	1960	159	508	0.0557
Pawpaw	54/3.75	19/2.25	33.8	672	2240	178	583	0.0485
Quince	3/1.75	4/1.75	5.3	16.84	95	12.7	8.74	3.25
Raisin	3/2.50	4/2.50	7.5	34.36	195	24.4	17.8	1.59
Sultana	4/3.00	3/3.00	9	49.48	243	28.3	31.5	0.897
Walnut	4/3.75	3/3.75	11.3	77.31	380	43.9	49.2	0.573

ACSR-Aluminum Conductor Steel Reinforced · 07
ACSR （JL/G1A）
Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear	Rated Strength	DC. Resistance at 20℃
	Steel Ratio	Al	St	Total	Al	St	Al	St	Steel	Cond.	Mass	Rated Strength	DC. Resistance at 20℃
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
10/2	16.7	10.6	1.78	12.4	6	1	1.5	1.5	1.5	4.5	42.8	4.14	2.7062
16/3	16.7	16.1	2.69	18.8	6	1	1.85	1.85	1.85	5.55	65.2	6.13	1.7791
25/4	16.7	24.9	4.15	29.1	6	1	2.3	2.3	2.3	6.9	100.7	9.1	1.151
35/6	16.7	34.9	5.81	40.7	6	1	2.72	2.72	2.72	8.16	140.9	12.55	0.823
40/6	16.7	39.9	6.65	46.6	6	1	2.91	2.91	2.91	8.73	161.2	14.37	0.719
50/8	16.7	48.3	8.04	56.3	6	1	3.2	3.2	3.2	9.6	195	16.81	0.5946
50/30	58.3	50.7	29.6	80.3	12	7	2.32	2.32	6.96	11.6	371.3	42.61	0.5693
65/10	16.7	63.1	10.5	73.6	6	1	3.66	3.66	3.66	11	255.1	21.67	0.4546
70/10	16.7	68	11.3	79.3	6	1	3.8	3.8	3.8	11.4	275	23.36	0.4217
70/40	58.3	69.7	40.7	110	12	7	2.72	2.72	8.16	13.6	510.4	58.22	0.4141
95/15	16.2	94.4	15.3	110	26	7	2.15	1.67	5.01	13.6	380.5	34.93	0.3059
95/20	19.8	95.1	18.8	114	7	7	4.16	1.85	5.55	13.9	408.5	37.24	0.302
95/55	58.3	96.5	56.3	153	12	7	3.2	3.2	9.6	16	706.4	77.85	0.2992
100/17	16.7	100	16.7	117	6	1	4.61	4.61	4.61	13.8	404.7	34.38	0.2865
120/7	5.6	119	6.6	125	18	1	2.9	2.9	2.9	14.5	378.9	27.74	0.2422
120/20	16.3	116	18.8	134	26	7	2.38	1.85	5.55	15.1	466.4	42.26	0.2496
120/25	19.8	122	24.2	147	7	7	4.72	2.1	6.3	15.7	526	47.96	0.2346
120/70	58.3	122	71.3	193	12	7	3.6	3.6	10.8	18	894	97.92	0.2364
125/7	5.6	125	6.93	132	18	1	2.97	2.97	2.97	14.9	397.4	29.1	0.231
125/20	16.3	125	20.3	145	26	7	2.47	1.92	5.76	15.6	502.4	45.51	0.2318
150/8	5.6	145	8.04	153	18	1	3.2	3.2	3.2	16	461.3	32.73	0.199
150/20	12.9	146	18.8	164	24	7	2.78	1.85	5.55	16.7	549	46.78	0.1981
150/25	16.3	149	24.2	173	26	7	2.7	2.1	6.3	17.1	600.5	53.67	0.194
150/35	23.3	147	34.4	182	30	7	2.5	2.5	7.5	17.5	675.4	64.94	0.1962
160/9	5.6	160	8.87	168	18	1	3.36	3.36	3.36	16.8	508.6	36.09	0.1805
185/10	5.6	183	10.2	193	18	1	3.6	3.6	3.6	18	583.8	40.51	0.1572
185/25	13	187	24.2	211	24	7	3.15	2.1	6.3	18.9	705.5	59.23	0.1543
185/30	16.3	181	29.6	211	26	7	2.98	2.32	6.96	18.9	732	64.56	0.1592
185/45	23.3	185	43.1	228	30	7	2.8	2.8	8.4	19.6	847.2	80.54	0.1564
200/11	5.6	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.9	44.19	0.1441
210/10	5.6	204	11.3	215	18	1	3.8	3.8	3.8	19	650.5	45.14	0.1411
210/25	13	209	27.1	236	24	7	3.33	2.22	6.66	20	788.4	66.19	0.138
210/35	16.2	212	34.4	246	26	7	3.22	2.5	7.5	20.4	853.1	74.11	0.1364
210/50	23.3	209	48.8	258	30	7	2.98	2.98	8.94	20.9	959.7	91.23	0.1381
ACSR （JL/G1A）
Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear	Rated Strength	DC. Resistance at 20℃
	Steel Ratio	Al	St	Total	Al	St	Al	St	Steel	Cond.	Mass	Rated Strength	DC. Resistance at 20℃
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
240/30	13	244	31.7	276	24	7	3.6	2.4	7.2	21.6	921.5	75.19	0.1181
240/40	16.3	239	38.9	278	26	7	3.42	2.66	7.98	21.7	963.5	83.76	0.1209
240/55	23.3	241	56.3	298	30	7	3.2	3.2	9.6	22.4	1106.6	101.7	0.1198
250/25	9.8	250	24.5	274	22	7	3.8	2.11	6.33	21.5	879.4	68.56	0.1156
250/40	16.3	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1008.6	87.64	0.1154
300/15	5.2	297	15.3	312	42	7	3	1.67	5.01	23	940.2	68.41	0.0973
300/20	6.2	303	18.8	322	45	7	2.93	1.85	5.55	23.1	985.4	73.6	0.0952
300/25	8.8	306	27.1	333	48	7	2.85	2.22	6.66	23.8	1057.9	83.76	0.0944
300/40	13	300	38.9	339	24	7	3.99	2.66	7.98	23.9	1132	92.36	0.0961
300/50	16.3	300	48.8	348	26	7	3.83	2.98	8.94	24.3	1208.6	103.6	0.0964
300/70	23.3	305	71.3	377	30	7	3.6	3.6	10.8	25.2	1400.6	127.2	0.0946
315/22	6.9	316	21.8	338	45	7	2.99	1.99	5.97	23.9	1043.2	79.19	0.0914
400/20	5.1	406	20.9	427	42	7	3.51	1.95	5.85	26.9	1286.3	89.48	0.0711
400/25	6.9	392	27.1	419	45	7	3.33	2.22	6.66	26.6	1294.7	96.37	0.0737
400/35	8.8	391	34.4	425	48	7	3.22	2.5	7.5	26.8	1348.6	103.7	0.0739
400/50	13	400	51.8	452	54	7	3.07	3.07	9.21	27.6	1510.5	123	0.0724
400/65	16.3	399	65.1	464	26	7	4.42	3.44	10.3	28	1610	135.4	0.0724
400/95	22.9	408	93.3	501	30	19	4.16	2.5	12.5	29.1	1857.9	171.6	0.0709
450/30	6.9	450	31.1	482	45	7	3.57	2.38	7.14	28.6	1488	107.6	0.0641
450/60	13	451	58.4	509	54	7	3.26	3.26	9.78	29.3	1703.2	138.6	0.0642
500/35	6.9	500	34.6	534	45	7	3.76	2.51	7.53	30.1	1651.3	119.4	0.0578
500/45	8.8	489	43.1	532	48	7	3.6	2.8	8.4	30	1687	127.3	0.0591
500/65	13	499	64.7	564	54	7	3.43	3.43	10.3	30.9	1885.5	153.5	0.058
560/40	6.9	560	38.6	598	45	7	3.98	2.65	7.95	31.8	1818.7	133.6	0.0516
560/70	12.7	559	70.9	630	54	19	3.63	2.18	10.9	32.7	2101.8	172.4	0.0518
630/45	6.9	629	43.4	673	45	7	4.22	2.81	8.43	33.8	2078.4	150.2	0.0459
630/55	8.8	640	56.3	696	48	7	4.12	3.2	9.6	34.3	2208.3	164.3	0.0452
630/80	12.7	629	79.6	708	54	19	3.85	2.31	11.6	34.7	2363.1	191.4	0.046
710/50	6.9	709	49.2	758	45	7	4.48	2.99	8.97	35.9	2344.2	169.5	0.0407
710/90	12.6	709	89.6	799	54	19	4.09	2.45	12.3	36.8	2664.6	215.6	0.0408
720/50	6.9	725	50.1	775	45	7	4.53	3.02	9.06	36.2	2395.9	171.2	0.0398
800/35	4.3	799	34.6	834	72	7	3.76	2.51	7.53	37.6	2481.7	159	0.0362
800/55	6.9	814	56.3	871	45	7	4.8	3.2	9.6	38.4	2690	192.2	0.0355
800/65	8.3	799	66.6	866	84	7	3.48	3.48	10.4	38.3	2731.7	194.8	0.0362
ACSR （JL/G1A）
Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear	Rated Strength	DC. Resistance at 20℃
	Steel Ratio	Al	St	Total	Al	St	Al	St	Steel	Cond.	Mass	Rated Strength	DC. Resistance at 20℃
	%	mm2	mm2	mm2			mm	mm	mm	mm	kg/km	kN	Ω/km
800/70	8.8	808	71.3	879	48	7	4.63	3.6	10.8	38.6	2790.1	207.7	0.0358
800/100	12.7	799	102	901	54	19	4.34	2.61	13.1	39.1	3006.6	243.7	0.0362
900/40	4.3	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2793.8	179	0.0321
900/75	8.3	898	74.9	973	84	7	3.69	3.69	11.1	40.6	3071.3	214.8	0.0322
1000/45	4.3	1002	43.1	1045	72	7	4.21	2.8	8.4	42.1	3108.8	199	0.0289
1000/80	8.1	1003	81.7	1085	84	19	3.9	2.34	11.7	42.9	3418	241	0.0288
1120/50	4.2	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5	3467.7	222.8	0.0258
1120/90	8.1	1120	91	1211	84	19	4.12	2.47	12.4	45.3	3813.4	268.8	0.0258
1250/70	5.6	1252	70.1	1322	76	7	4.58	3.57	10.7	47.4	4011.1	263.5	0.0231
1250/100	8.1	1248	102	1350	84	19	4.35	2.61	13.1	47.9	4252.3	299.8	0.0232
1400/135	9.6	1400	134	1543	88	19	4.5	3	15	51	4926.4	358.2	0.0207
1440/120	8.1	1439	117	1556	84	19	4.67	2.8	14	51.4	4899.7	345.4	0.0201

Before you specify

What information should I include in an inquiry?

Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.

Can I use these tables to make the final cable selection?

Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.

How can I keep a copy of this specification?

Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.

Can the team review a project specification?

Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.

ACSR-Aluminum Conductor Steel Reinforced

Construction & ratings

Technical data

Before you specify

Related cables

6.35/11(12)kV XLPE Insulated Single Core and 3Cores Power Cable (AS/NZS 1429.1)

12/20(24)kV CU XLPE AWA/SWA PVC Armoured Cable

12/20(24)kV CU XLPE PVC Un-armoured Cable

Bring your next connection into focus.

Qifan support

Tell us what you are planning.
