01 / Construction & ratings
Construction & ratings
- Cable design: IEC 60502-1
- Conductor: IEC 60228

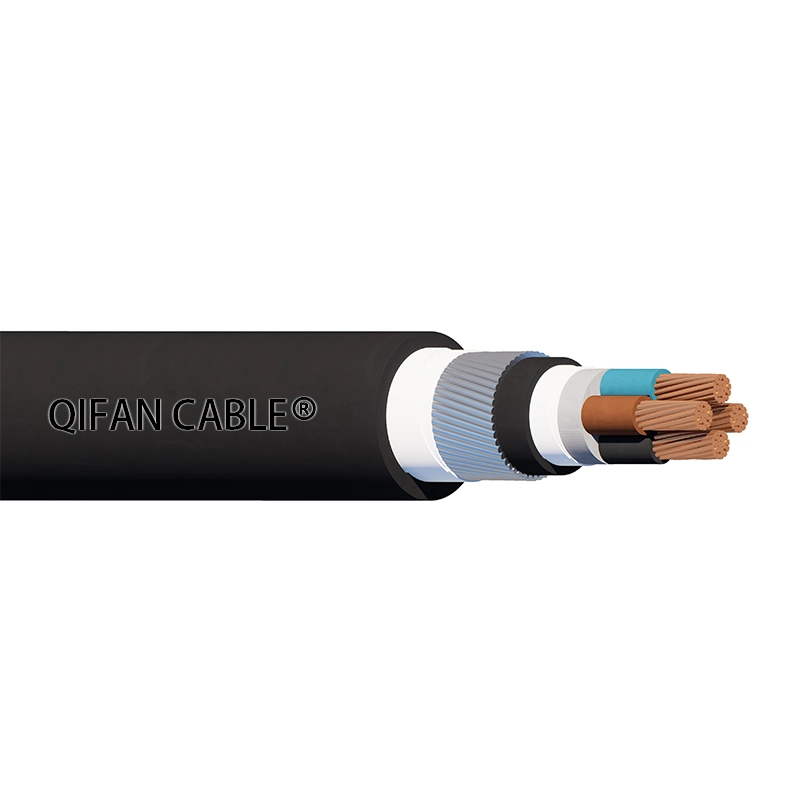

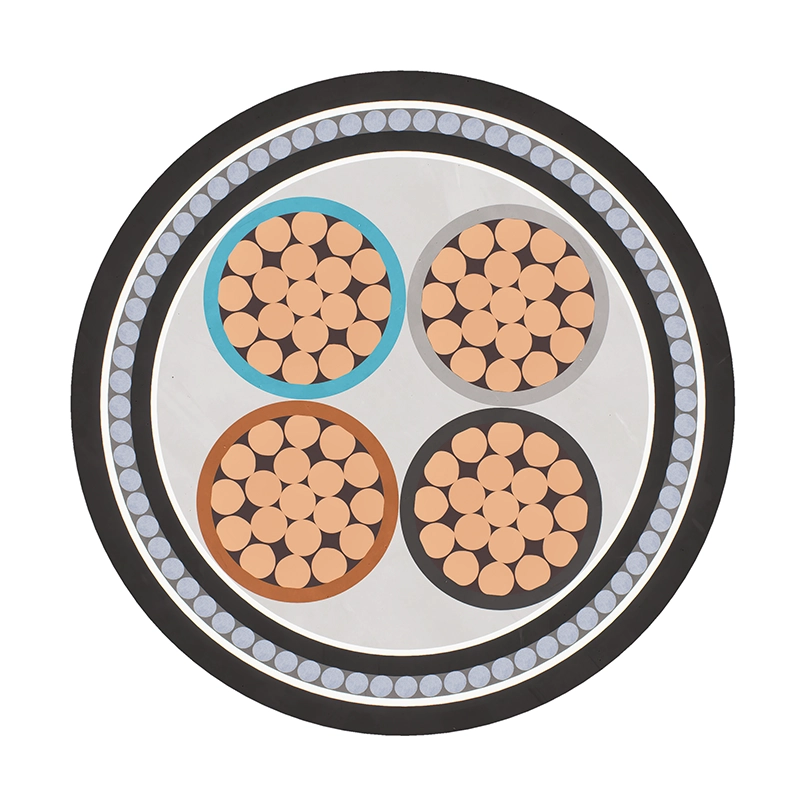

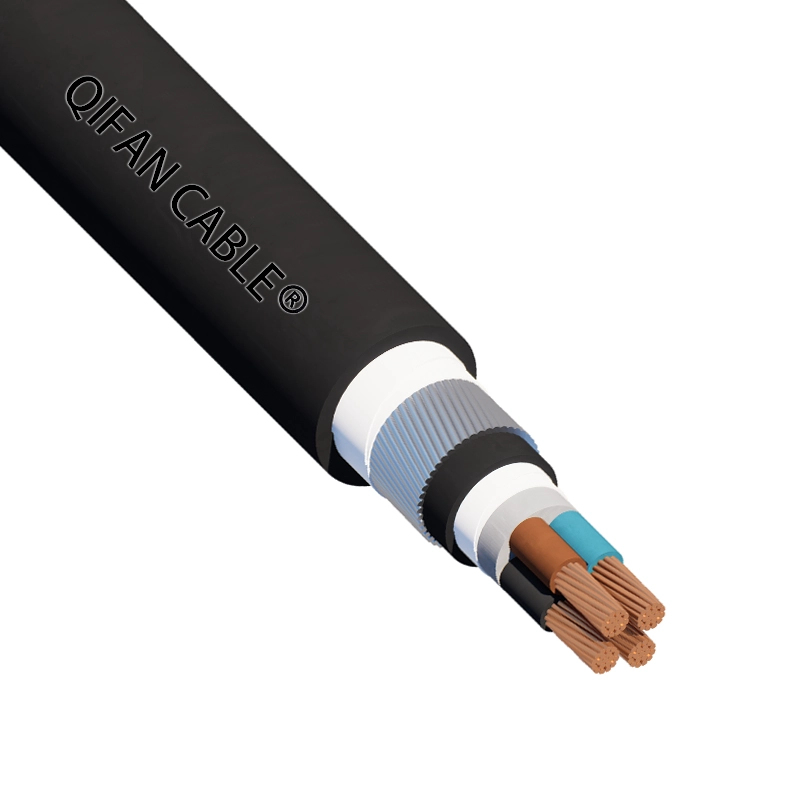

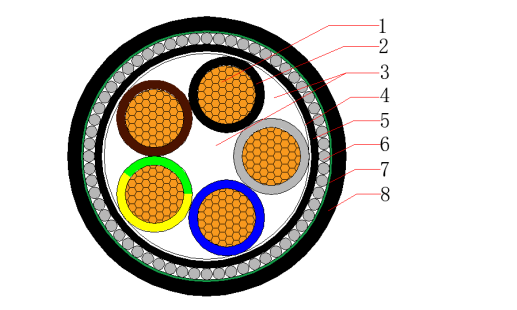

- 1. Conductor – Plain annealed class 2 stranded (compacted) copper
- 2. Insulation – Cross linked polyethylene (XLPE)
- 3. Filler – Non-hygroscopic material
- 4. Binder tape – Non-hygroscopic material tape
- 5. Inner sheath – Polyvinyl chloride compound (PVC)
- 6. Armor – Galvanized steel wires
- 7. Binder tape – Non-hygroscopic material tape
- 8. Outer sheath – Polyvinyl chloride compound (PVC)
- 2C1.5~2C400mm2
- 3C1.5~3C400mm2
- 4C1.5~4C400mm2
- 5C1.5~5C400mm2
- 2C+E2.5~2C+E400mm2
- 3C+E2.5~3C+E400mm2
- 4C+E2.5~4C+E400mm2
- Conductor operating temperature: -15℃~90℃
- Min. temperatrue laying condition: 0℃
- Conductor emergency operating temperature: 105℃
- Conductor short-circuit operating temperature (5s): 250℃
- Rated voltage: 0.6/1 (1.2) kV
- High voltage test: 3.5kV / 5min
- Insulation: According to customer requirements
- Outer sheath: Black or according to customer requirements
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Items | Single-core Cables | Three-core Cables | ||
|---|---|---|---|---|
| Unarmoured | Armoured | Unarmoured | Armoured | |
| Min. bending radius during installation | 20D | 15D | 15D | 12D |
| Min. bending radius close to connection box and termination (bending radius should be controlled carefully, if the molding guide plate is used) | 15D | 12D | 12D | 10D |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 2×1.5 | 1 | 0.7 | 0.8 | 1.8 | 13.3 | 300 | 12.1 |
| 2×2.5 | 1 | 0.7 | 0.8 | 1.8 | 14.1 | 343 | 7.41 |
| 2×4 | 1 | 0.7 | 0.8 | 1.8 | 15.1 | 404 | 4.61 |
| 2×6 | 1 | 0.7 | 0.8 | 1.8 | 16.1 | 476 | 3.08 |
| 2×10 | 6 | 0.7 | 1.25 | 1.8 | 19.5 | 763 | 1.83 |
| 2×16 | 6 | 0.7 | 1.25 | 1.8 | 21.1 | 942 | 1.15 |
| 2×25 | 6 | 0.9 | 1.6 | 1.8 | 25 | 1384 | 0.727 |
| 2×35 | 6 | 0.9 | 1.6 | 1.8 | 27 | 1668 | 0.524 |
| 2×50 | 6 | 1 | 1.6 | 1.8 | 30 | 2061 | 0.387 |
| 2×70 | 12 | 1.1 | 1.6 | 2 | 33.8 | 2628 | 0.268 |
| 2×95 | 15 | 1.1 | 2 | 2.1 | 39.1 | 3649 | 0.193 |
| 2×120 | 18 | 1.2 | 2 | 2.2 | 42.5 | 4334 | 0.153 |
| 2×150 | 18 | 1.4 | 2 | 2.3 | 46.5 | 5134 | 0.124 |
| 2×185 | 30 | 1.6 | 2.5 | 2.5 | 52.3 | 6658 | 0.0991 |
| 2×240 | 34 | 1.7 | 2.5 | 2.7 | 57.7 | 8140 | 0.0754 |
| 2×300 | 34 | 1.8 | 2.5 | 2.8 | 63.1 | 9754 | 0.0601 |
| 2×400 | 53 | 2 | 2.5 | 3.1 | 70.1 | 12015 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 3×1.5 | 1 | 0.7 | 0.8 | 1.8 | 13.8 | 331 | 12.1 |
| 3×2.5 | 1 | 0.7 | 0.8 | 1.8 | 14.6 | 384 | 7.41 |
| 3×4 | 1 | 0.7 | 0.8 | 1.8 | 15.6 | 460 | 4.61 |
| 3×6 | 1 | 0.7 | 0.8 | 1.8 | 16.7 | 552 | 3.08 |
| 3×10 | 6 | 0.7 | 1.25 | 1.8 | 20.4 | 889 | 1.83 |
| 3×16 | 6 | 0.7 | 1.25 | 1.8 | 22.1 | 1133 | 1.15 |
| 3×25 | 6 | 0.9 | 1.6 | 1.8 | 26.2 | 1680 | 0.727 |
| 3X35 | 6 | 0.9 | 1.6 | 1.8 | 28.4 | 2051 | 0.524 |
| 3×50 | 6 | 1 | 1.6 | 1.9 | 31.8 | 2572 | 0.387 |
| 3×70 | 12 | 1.1 | 2 | 2 | 37.2 | 3637 | 0.268 |
| 3×95 | 15 | 1.1 | 2 | 2.2 | 41.5 | 4626 | 0.193 |
| 3×120 | 18 | 1.2 | 2 | 2.3 | 45.2 | 5565 | 0.153 |
| 3×150 | 18 | 1.4 | 2.5 | 2.5 | 51.1 | 7121 | 0.124 |
| 3×185 | 30 | 1.6 | 2.5 | 2.6 | 55.6 | 8522 | 0.0991 |
| 3×240 | 34 | 1.7 | 2.5 | 2.8 | 61.8 | 10612 | 0.0754 |
| 3×300 | 34 | 1.8 | 2.5 | 3 | 67.4 | 12798 | 0.0601 |
| 3×400 | 53 | 2 | 2.5 | 3.2 | 74.7 | 15826 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 4×1.5 | 1 | 0.7 | 0.8 | 1.8 | 14.5 | 372 | 12.1 |
| 4×2.5 | 1 | 0.7 | 0.8 | 1.8 | 15.4 | 435 | 7.41 |
| 4×4 | 1 | 0.7 | 0.8 | 1.8 | 16.6 | 531 | 4.61 |
| 4×6 | 1 | 0.7 | 1.25 | 1.8 | 18.7 | 765 | 3.08 |
| 4×10 | 6 | 0.7 | 1.25 | 1.8 | 21.8 | 1049 | 1.83 |
| 4×16 | 6 | 0.7 | 1.6 | 1.8 | 24.4 | 1473 | 1.15 |
| 4×25 | 6 | 0.9 | 1.6 | 1.8 | 28.3 | 2017 | 0.727 |
| 4×35 | 6 | 0.9 | 1.6 | 1.9 | 30.9 | 2495 | 0.524 |
| 4×50 | 6 | 1 | 1.6 | 2 | 34.7 | 3157 | 0.387 |
| 4×70 | 12 | 1.1 | 2 | 2.2 | 40.7 | 4493 | 0.268 |
| 4×95 | 15 | 1.1 | 2 | 2.3 | 45.3 | 5742 | 0.193 |
| 4×120 | 18 | 1.2 | 2.5 | 2.5 | 51 | 7417 | 0.153 |
| 4×150 | 18 | 1.4 | 2.5 | 2.6 | 55.8 | 8806 | 0.124 |
| 4×185 | 30 | 1.6 | 2.5 | 2.8 | 61.4 | 10739 | 0.0991 |
| 4×240 | 34 | 1.7 | 2.5 | 3 | 67.9 | 13321 | 0.0754 |
| 4×300 | 34 | 1.8 | 2.5 | 3.2 | 74.1 | 16097 | 0.0601 |
| 4×400 | 53 | 2 | 3.15 | 3.5 | 84.1 | 21074 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 5×1.5 | 1 | 0.7 | 0.8 | 1.8 | 15.3 | 414 | 12.1 |
| 5×2.5 | 1 | 0.7 | 0.8 | 1.8 | 16.3 | 492 | 7.41 |
| 5×4 | 1 | 0.7 | 1.25 | 1.8 | 18.5 | 726 | 4.61 |
| 5×6 | 1 | 0.7 | 1.25 | 1.8 | 19.9 | 874 | 3.08 |
| 5×10 | 6 | 0.7 | 1.25 | 1.8 | 23.3 | 1214 | 1.83 |
| 5×16 | 6 | 0.7 | 1.6 | 1.8 | 26.1 | 1723 | 1.15 |
| 5×25 | 6 | 0.9 | 1.6 | 1.8 | 30.5 | 2362 | 0.727 |
| 5×35 | 6 | 0.9 | 1.6 | 1.9 | 33.4 | 2953 | 0.524 |
| 5×50 | 6 | 1 | 2 | 2.1 | 39.3 | 4090 | 0.387 |
| 5×70 | 12 | 1.1 | 2 | 2.3 | 44.3 | 5352 | 0.268 |
| 5×95 | 15 | 1.1 | 2.5 | 2.5 | 51 | 7379 | 0.193 |
| 5×120 | 18 | 1.2 | 2.5 | 2.6 | 55.5 | 8856 | 0.153 |
| 5×150 | 18 | 1.4 | 2.5 | 2.8 | 61.4 | 10690 | 0.124 |
| 5×185 | 30 | 1.6 | 2.5 | 3 | 67.2 | 12917 | 0.0991 |
| 5×240 | 34 | 1.7 | 2.5 | 3.2 | 74.4 | 16133 | 0.0754 |
| 5×300 | 34 | 1.8 | 3.15 | 3.4 | 82.9 | 20582 | 0.0601 |
| 5×400 | 53 | 2 | 3.15 | 3.8 | 92.4 | 25587 | 0.047 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 3×2.5+1×1.5 | 1/1 | 0.7/0.7 | 0.8 | 1.8 | 15.2 | 418 | 7.41/12.1 |
| 3×4+1×2.5 | 1/1 | 0.7/0.7 | 0.8 | 1.8 | 16.3 | 508 | 4.61/7.41 |
| 3×6+1×4 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 18.4 | 740 | 3.08/4.61 |
| 3×10+1×6 | 6/1 | 0.7/0.7 | 1.25 | 1.8 | 21 | 977 | 1.83/3.08 |
| 3×16+1×10 | 6/6 | 0.7/0.7 | 1.25 | 1.8 | 23.2 | 1268 | 1.15/1.83 |
| 3×25+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 27.3 | 1879 | 0.727/1.15 |
| 3×35+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 29.1 | 2225 | 0.524/1.15 |
| 3×50+1×25 | 6/6 | 1.0/0.9 | 1.6 | 1.9 | 33 | 2856 | 0.387/0.727 |
| 3×70+1×35 | 12/6 | 1.1/0.9 | 2 | 2.1 | 38.6 | 4045 | 0.268/0.524 |
| 3×95+1×50 | 15/6 | 1.1/1.0 | 2 | 2.2 | 43 | 5162 | 0.193/0.387 |
| 3×120+1×70 | 18/12 | 1.2/1.1 | 2 | 2.4 | 47.3 | 6325 | 0.153/0.268 |
| 3×150+1×70 | 18/12 | 1.4/1.1 | 2.5 | 2.5 | 52.4 | 7841 | 0.124/0.268 |
| 3×185+1×95 | 30/15 | 1.6/1.1 | 2.5 | 2.7 | 57.5 | 9512 | 0.0991/0.193 |
| 3×240+1×120 | 34/18 | 1.7/1.2 | 2.5 | 2.9 | 63.8 | 11870 | 0.0754/0.153 |
| 3×300+1×150 | 34/18 | 1.8/1.4 | 2.5 | 3 | 69.5 | 14254 | 0.0601/0.124 |
| 3×400+1×185 | 53/30 | 2.0/1.6 | 3.15 | 3.3 | 78.8 | 18672 | 0.0470/0.0991 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 3×2.5+2×1.5 | 1/1 | 0.7/0.7 | 0.8 | 1.8 | 15.9 | 459 | 7.41/12.1 |
| 3×4+2×2.5 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 18 | 678 | 4.61/7.41 |
| 3×6+2×4 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 19.3 | 817 | 3.08/4.61 |
| 3×10+2×6 | 6/1 | 0.7/0.7 | 1.25 | 1.8 | 21.9 | 1073 | 1.83/3.08 |
| 3×16+2×10 | 6/6 | 0.7/0.7 | 1.6 | 1.8 | 25.3 | 1565 | 1.15/1.83 |
| 3×25+2×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 28.7 | 2106 | 0.727/1.15 |
| 3×35+2×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 30.4 | 2448 | 0.524/1.15 |
| 3×50+2×25 | 6/6 | 1.0/0.9 | 2 | 2 | 36.4 | 3499 | 0.387/0.727 |
| 3×70+2×35 | 12/6 | 1.1/0.9 | 2 | 2.1 | 40.4 | 4487 | 0.268/0.524 |
| 3×95+2×50 | 15/6 | 1.1/1.0 | 2 | 2.3 | 45.4 | 5750 | 0.193/0.387 |
| 3×120+2×70 | 18/12 | 1.2/1.1 | 2.5 | 2.5 | 51.6 | 7638 | 0.153/0.268 |
| 3×150+2×70 | 18/12 | 1.4/1.1 | 2.5 | 2.6 | 54.9 | 8637 | 0.124/0.268 |
| 3×185+2×95 | 30/15 | 1.6/1.1 | 2.5 | 2.8 | 60.9 | 10700 | 0.0991/0.193 |
| 3×240+2×120 | 34/18 | 1.7/1.2 | 2.5 | 3 | 67 | 13208 | 0.0754/0.153 |
| 3×300+2×150 | 34/18 | 1.8/1.4 | 2.5 | 3.2 | 73.4 | 15945 | 0.0601/0.124 |
| 3×400+2×185 | 53/30 | 2.0/1.6 | 3.15 | 3.5 | 83 | 20775 | 0.0470/0.0991 |
| No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal Steel Wire Diameter | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight | Max. D.C. Resistance of Conductor at 20℃ |
|---|---|---|---|---|---|---|---|
| No. × mm² | No. | mm | mm | mm | mm | kg/km | ohm/km |
| 4×2.5+1×1.5 | 1/1 | 0.7/0.7 | 0.8 | 1.8 | 16.1 | 476 | 7.41/12.1 |
| 4×4+1×2.5 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 18.2 | 697 | 4.61/7.41 |
| 4×6+1×4 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 19.6 | 850 | 3.08/4.61 |
| 4×10+1×6 | 6/1 | 0.7/0.7 | 1.25 | 1.8 | 22.6 | 1143 | 1.83/3.08 |
| 4×16+1×10 | 6/6 | 0.7/0.7 | 1.6 | 1.8 | 25.7 | 1644 | 1.15/1.83 |
| 4×25+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 29.6 | 2226 | 0.727/1.15 |
| 4×35+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.9 | 32 | 2698 | 0.524/1.15 |
| 4×50+1×25 | 6/6 | 1.0/0.9 | 2 | 2.1 | 38 | 3802 | 0.387/0.727 |
| 4×70+1×35 | 12/6 | 1.1/0.9 | 2 | 2.2 | 42.4 | 4931 | 0.268/0.524 |
| 4×95+1×50 | 15/6 | 1.1/1.0 | 2 | 2.4 | 47.5 | 6325 | 0.193/0.387 |
| 4×120+1×70 | 18/12 | 1.2/1.1 | 2.5 | 2.5 | 53.4 | 8233 | 0.153/0.268 |
| 4×150+1×70 | 18/12 | 1.4/1.1 | 2.5 | 2.7 | 57.9 | 9632 | 0.124/0.268 |
| 4×185+1×95 | 30/15 | 1.6/1.1 | 2.5 | 2.9 | 64 | 11824 | 0.0991/0.193 |
| 4×240+1×120 | 34/18 | 1.7/1.2 | 2.5 | 3.1 | 70.7 | 14645 | 0.0754/0.153 |
| 4×300+1×150 | 34/18 | 1.8/1.4 | 3.15 | 3.3 | 79 | 18714 | 0.0601/0.124 |
| 4×400+1×185 | 53/30 | 2.0/1.6 | 3.15 | 3.6 | 87.6 | 23183 | 0.0470/0.0991 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
