01 / Construction & ratings
Construction & ratings

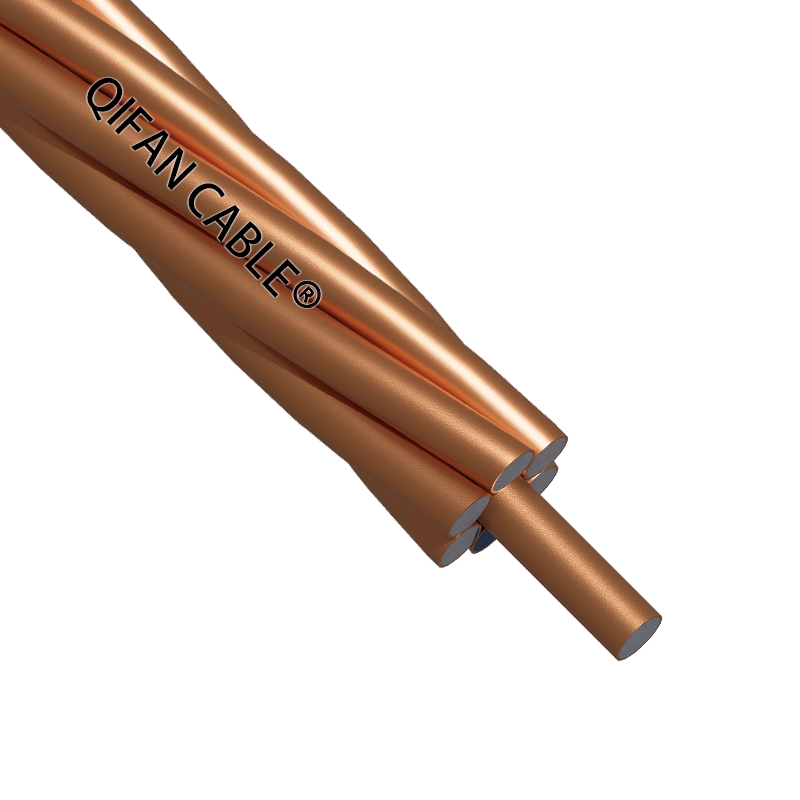

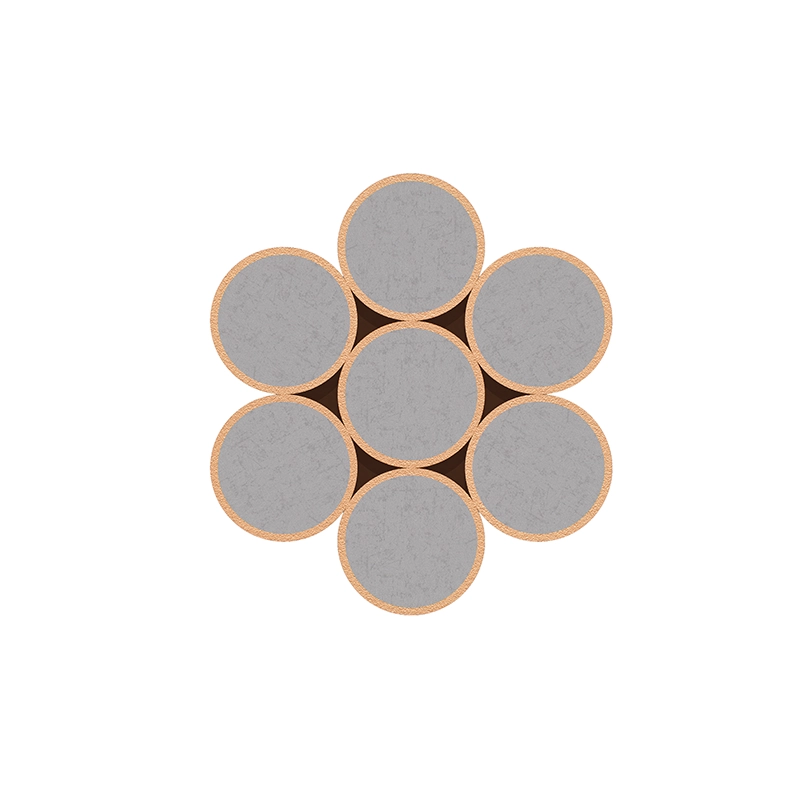

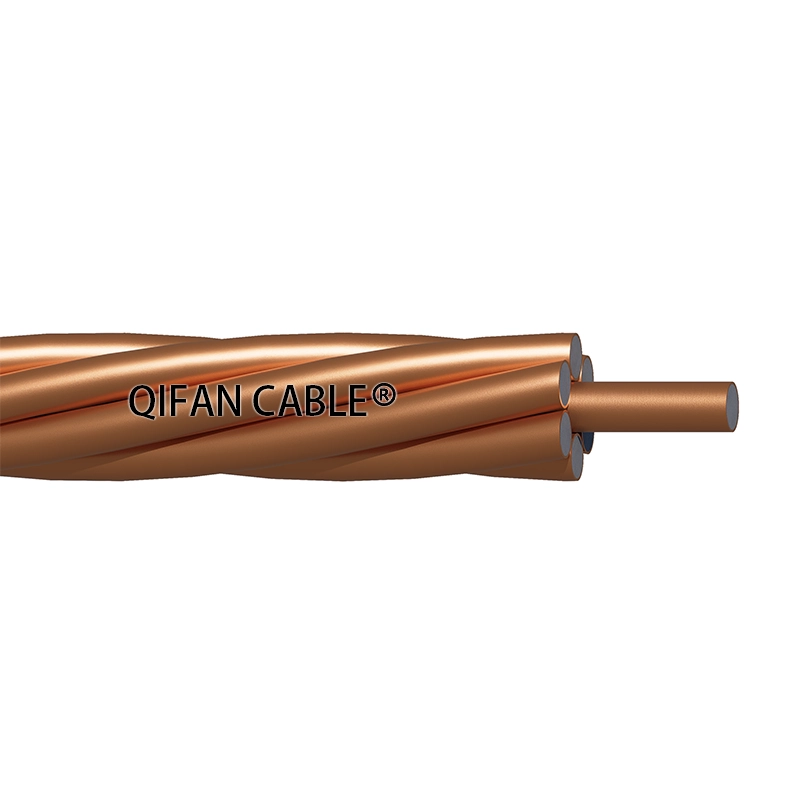

- ASTM B 228 Concentric-Lay-Stranded Copper-Clad Steel Conductors
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| CCS（Conductivity 20.3） | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size Designation | Conductor Area | No.of Wires | Diameter mm | Min.Rated Breaking Strength kN | Weight kg/km | Max.D.C. Resistance at 20℃ Ω/km | |||
| AWG | mm² | in² | Wire | Cond. | Grade 40 HS | Grade 40 DSA | Grade 40 | ||
| 19 No.5 | 318.71 | 0.494 | 19 | 4.62 | 23.11 | 216.66 | 76.68 | 2660.8 | 0.14423 |
| 19 No.6 | 252.71 | 0.3917 | 19 | 4.115 | 20.57 | 179.45 | 60.81 | 2110.2 | 0.18183 |
| 19 No.7 | 200.45 | 0.3107 | 19 | 3.665 | 18.31 | 148.29 | 48.23 | 1674.2 | 0.22937 |
| 19 No. 8 | 158.97 | 0.2464 | 19 | 3.264 | 16.31 | 122.46 | 38.27 | 1327.4 | 0.28896 |
| 19 No. 9 | 126.06 | 0.1954 | 19 | 2.906 | 14.53 | 100.86 | 30.33 | 1052.6 | 0.36452 |
| 7 No. 4 | 148.06 | 0.2295 | 7 | 5.189 | 15.57 | 96.15 | 35.61 | 1231.5 | 0.3093 |
| 7 No. 5 | 117.42 | 0.182 | 7 | 4.62 | 13.87 | 79.84 | 28.25 | 976.5 | 0.38978 |
| 7 No. 6 | 93.1 | 0.1443 | 7 | 4.115 | 12.34 | 66.1 | 22.41 | 774.3 | 0.4915 |
| 7 No.7 | 73.87 | 0.1145 | 7 | 3.665 | 11 | 54.63 | 17.76 | 614.5 | 0.6201 |
| 7 No. 8 | 58.56 | 0.09077 | 7 | 3.264 | 9.78 | 45.12 | 14.1 | 487.1 | 0.7812 |
| 7 No. 9 | 46.44 | 0.07198 | 7 | 2.906 | 8.71 | 37.16 | 11.18 | 386.2 | 0.9859 |
| 7 No. 10 | 36.83 | 0.05708 | 7 | 2.588 | 7.77 | 30.73 | 8.87 | 306.3 | 1.2422 |
| 3 No. 5 | 50.32 | 0.078 | 3 | 4.62 | 9.96 | 36.1 | 12.78 | 417.7 | 0.9082 |
| 3 No. 6 | 39.9 | 0.06185 | 3 | 4.115 | 8.86 | 29.91 | 10.14 | 331.3 | 1.1447 |
| 3 No. 7 | 31.65 | 0.04905 | 3 | 3.665 | 7.9 | 24.71 | 8.04 | 262.7 | 1.444 |
| 3 N0. 8 | 25.1 | 0.0389 | 3 | 3.264 | 7.04 | 20.41 | 6.38 | 208.3 | 1.8193 |
| 3 No. 9 | 19.9 | 0.03085 | 3 | 2.906 | 6.27 | 16.81 | 5.05 | 165.2 | 2.2957 |
| 3 No. 10 | 15.78 | 0.02446 | 3 | 2.588 | 5.59 | 13.9 | 4.01 | 131 | 2.8929 |
| 3 No. 12 | 9.93 | 0.01539 | 3 | 2.052 | 4.42 | 7.32 | 2.55 | 82.4 | 4.5573 |
| Size Designation | Conductor Area | No.of wires | Diameter mm | Min.Rated Breaking Strength kN | Weight kg/km | Max.D.C. Resistance at 20℃ Ω/km | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | in² | Wire | Cond. | Grade 30 HS | Grade 30 EHS | Grade 30 DSA | Grade 30 | ||
| 19 No.5 | 318.71 | 0.494 | 19 | 4.62 | 23.11 | 239.64 | 288.54 | 86.28 | 2634 | 0.19227 |
| 19 No.6 | 252.71 | 0.3917 | 19 | 4.115 | 20.57 | 197.68 | 239.51 | 68.41 | 2087.9 | 0.2424 |
| 19 No.7 | 200.45 | 0.3107 | 19 | 3.665 | 18.31 | 162.74 | 197.72 | 54.23 | 1656.3 | 0.30576 |
| 19 No. 8 | 158.97 | 0.2464 | 19 | 3.264 | 16.31 | 133.98 | 162.65 | 43.06 | 1313.6 | 0.3852 |
| 19 No. 9 | 126.06 | 0.1954 | 19 | 2.906 | 14.53 | 109.93 | 132.02 | 34.12 | 1041.7 | 0.4862 |
| 7 No. 4 | 148.06 | 0.2295 | 7 | 5.189 | 15.57 | 106.86 | 126.87 | 40.07 | 1218.7 | 0.4124 |
| 7 No. 5 | 117.42 | 0.182 | 7 | 4.62 | 13.87 | 88.28 | 106.28 | 31.78 | 966.4 | 0.5197 |
| 7 No. 6 | 93.1 | 0.1443 | 7 | 4.115 | 12.34 | 72.86 | 88.24 | 25.21 | 766.3 | 0.6552 |
| 7 No.7 | 73.87 | 0.1145 | 7 | 3.665 | 11 | 59.97 | 72.86 | 19.99 | 608.1 | 0.8268 |
| 7 No. 8 | 58.56 | 0.09077 | 7 | 3.264 | 9.78 | 49.34 | 59.92 | 15.86 | 482 | 1.0414 |
| 7 No. 9 | 46.44 | 0.07198 | 7 | 2.906 | 8.71 | 40.51 | 48.63 | 12.57 | 382.2 | 1.3144 |
| 7 No. 10 | 36.83 | 0.05708 | 7 | 2.588 | 7.77 | 33.48 | 39.69 | 9.97 | 303.1 | 1.6559 |
| 3 No. 5 | 50.32 | 0.078 | 3 | 4.62 | 9.96 | 39.94 | 48.1 | 14.38 | 413.4 | 1.2104 |
| 3 No. 6 | 39.9 | 0.06185 | 3 | 4.115 | 8.86 | 32.95 | 39.92 | 11.41 | 327.8 | 1.526 |
| 3 No. 7 | 31.65 | 0.04905 | 3 | 3.665 | 7.9 | 27.12 | 32.95 | 9.04 | 260 | 1.925 |
| 3 N0. 8 | 25.1 | 0.0389 | 3 | 3.264 | 7.04 | 22.33 | 27.11 | 7.17 | 206.1 | 2.4253 |
| 3 No. 9 | 19.9 | 0.03085 | 3 | 2.906 | 6.27 | 18.32 | 22 | 5.69 | 163.5 | 3.0605 |
| 3 No. 10 | 15.78 | 0.02446 | 3 | 2.588 | 5.59 | 15.14 | 17.95 | 4.51 | 129.6 | 3.855 |
| 3 No. 12 | 9.93 | 0.01539 | 3 | 2.052 | 4.42 | 7.64 | 11.4 | 2.87 | 81.6 | 6.073V |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
