01 / Construction & ratings
Construction & ratings

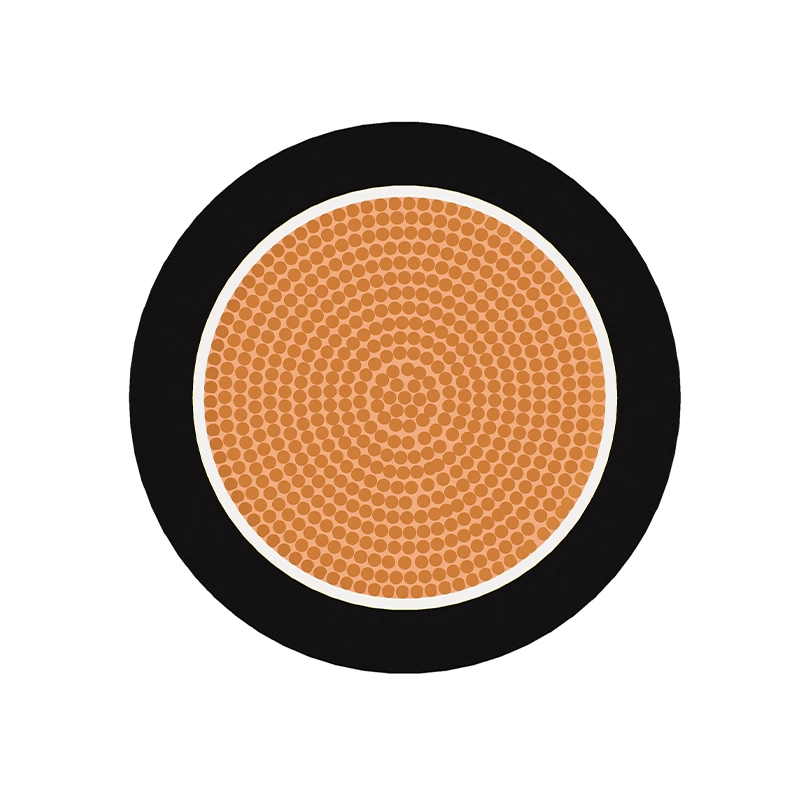

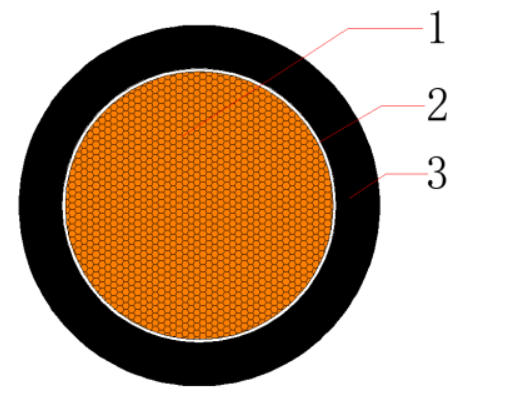

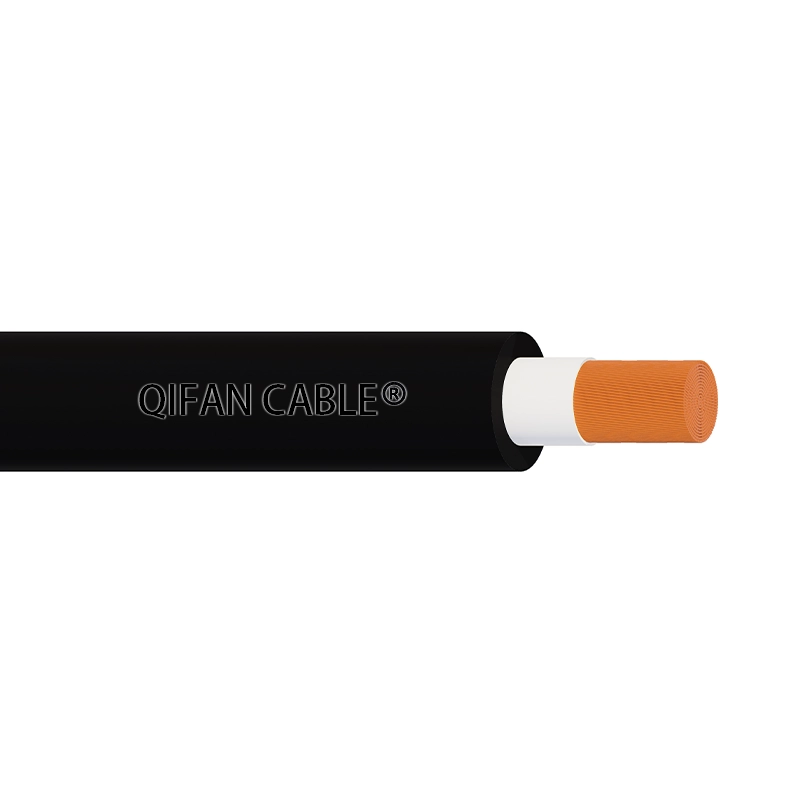

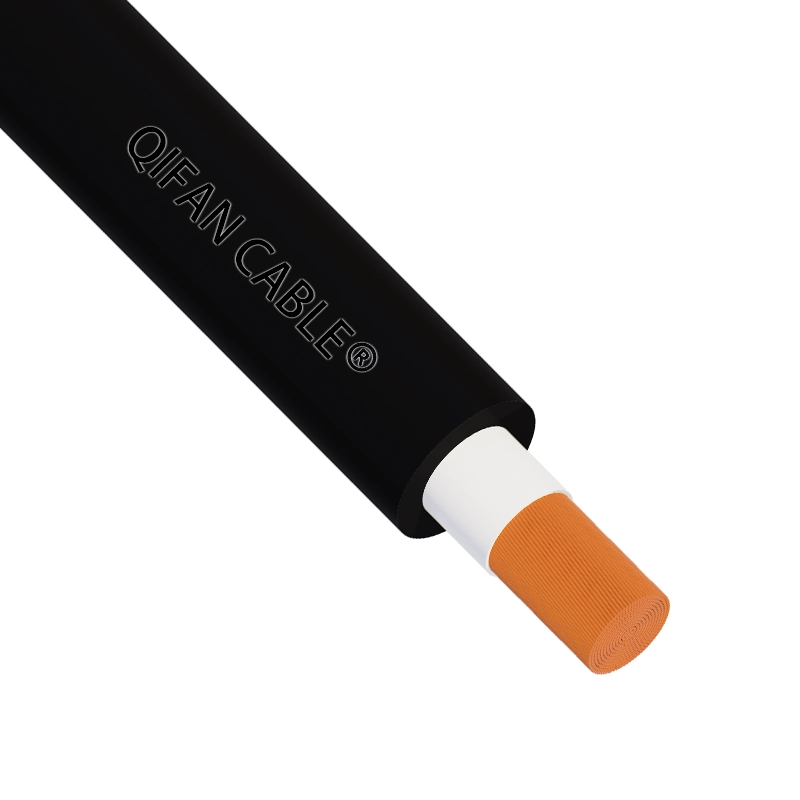

- Cable design: EN50525-3-81
- Conductor: EN 60228
- Conductor – Plain flexible annealed class 5 copper
- Binder tape – Non-hygroscopic material tape
- Covering – Rubber
- 1C10~240mm2
- Flexible: 20°C to +85°C
- Fixed: 35°C to +85°C
- Rated voltage: 100/100V
- High voltage test: 1.0kV / 5min
- Insulation: According to customer requirements
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA (mm 2 ) | NOMINAL THICKNESS OF INSULATION (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT (kg/km) |
|---|---|---|---|---|
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
| Nominal Cross Sectional Area (mm 2 ) | Maximum Diameter of Wires in Conductor (mm) | Maximum Resistance of Conductor at 20℃ – Plain Wires (ohms/km) |
|---|---|---|
| 10 | 0.21 | 1.91 |
| 16 | 0.21 | 1.21 |
| 25 | 0.21 | 0.78 |
| 35 | 0.21 | 0.554 |
| 50 | 0.21 | 0.386 |
| 70 | 0.21 | 0.272 |
| 95 | 0.21 | 0.206 |
| 120 | 0.51 | 0.161 |
| 150 | 0.51 | 0.129 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
