01 / Construction & ratings
Construction & ratings

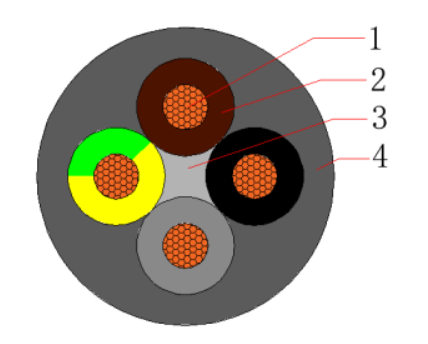

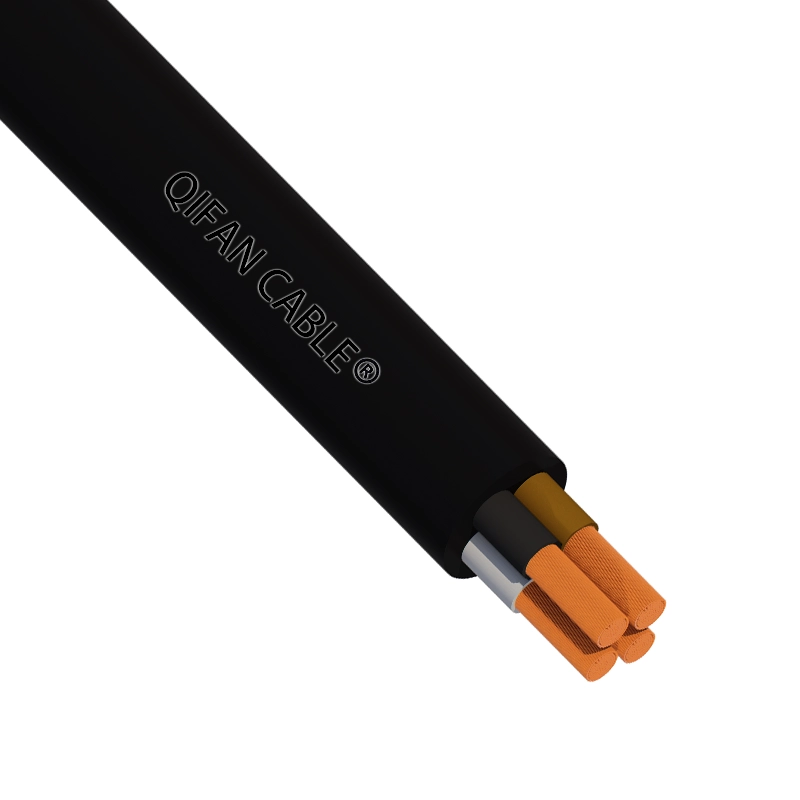

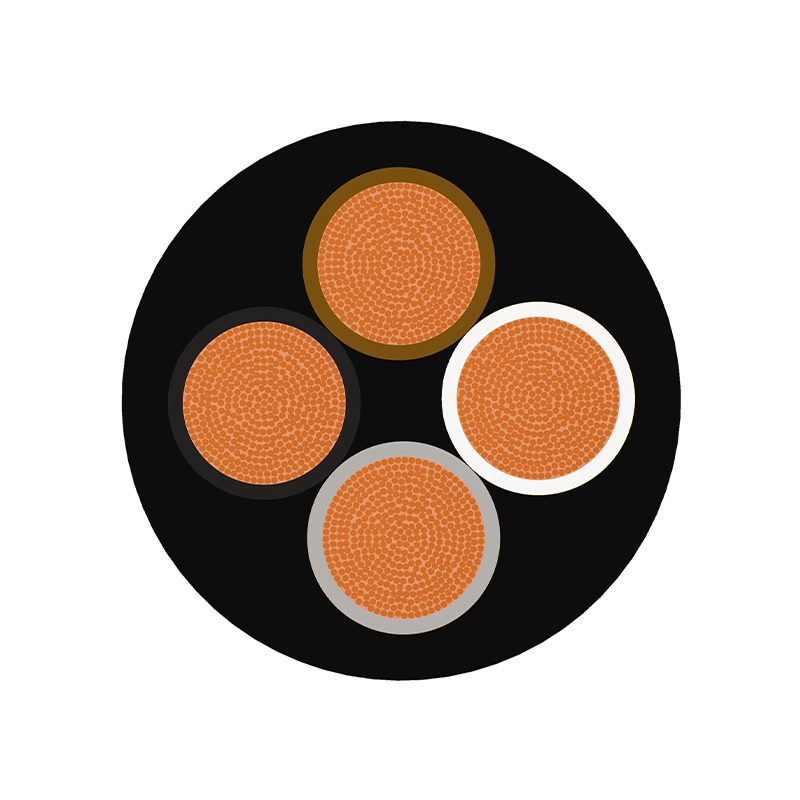

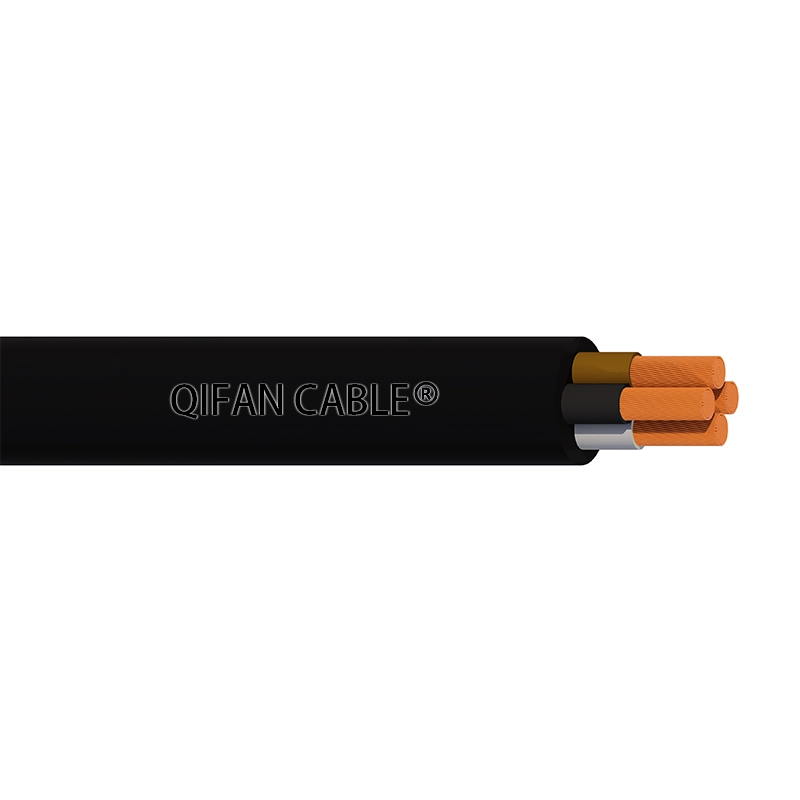

- Cable design: EN50525-2-21
- Conductor: EN 60228
- Conductor – Plain flexible annealed class 5 copper
- Insulation – EPR rubber(EI4)
- Filler – Rubber(If need)
- Binder tape – Non-hygroscopic material tape(If need)
- Outer sheath – PCP or equivalent synthetic elastomer(EM2)
- 2C0.75~1mm2
- 3C0.75~1mm2
- 4C0.75~1mm2
- Conductor operating temperature:-25℃~60℃
- Min. temperatrue laying condition: 0℃
- Conductor short-circuit operating temperature (5s): 160℃
- Rated voltage: 300/500V
- High voltage test: 2.0kV / 5min
- Insulation: Yellow/Green, Black, Grey, Brown, Blue etc. According to customer requirements
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| No. of Core | Cross-section Area | Max. Wire Dia. | Approx. Conductor Dia. | Nominal Insulation Thickness | Nominal Outer sheath thickness | Apprrox. Cable Dia. | Apporx. Cable Weight | Max. D.C. Resistance at 20 ℃ |
|---|---|---|---|---|---|---|---|---|
| Nos | mm 2 | mm | mm | mm | mm | mm | kg/km | Ω/km |
| 2 | 0.75 | 0.26 | 1.2 | 0.7 | 1.2 | 7.60 | 69.4 | 26.00 |
| 2 | 1 | 0.26 | 1.34 | 0.7 | 1.2 | 7.88 | 77.2 | 19.50 |
| 2 | 1.5 | 0.26 | 1.8 | 0.8 | 1.2 | 9.20 | 104.0 | 13.30 |
| 2 | 2.5 | 0.26 | 2.37 | 0.9 | 1.3 | 10.94 | 150.4 | 7.98 |
| 3 | 0.75 | 0.26 | 1.2 | 0.7 | 1.2 | 8.00 | 84.7 | 26.00 |
| 3 | 1 | 0.26 | 1.34 | 0.7 | 1.2 | 8.30 | 95.3 | 19.50 |
| 3 | 1.5 | 0.26 | 1.8 | 0.8 | 1.3 | 9.92 | 135.0 | 13.30 |
| 3 | 2.5 | 0.26 | 2.37 | 0.9 | 1.3 | 11.58 | 190.6 | 7.98 |
| 4 | 0.75 | 0.26 | 1.2 | 0.7 | 1.2 | 8.68 | 101.7 | 26.00 |
| 4 | 1 | 0.26 | 1.34 | 0.7 | 1.2 | 9.01 | 115.0 | 19.50 |
| 4 | 1.5 | 0.26 | 1.8 | 0.8 | 1.3 | 10.81 | 163.5 | 13.30 |
| 4 | 2.5 | 0.26 | 2.37 | 0.9 | 1.4 | 12.87 | 239.2 | 7.98 |
| 5 | 0.75 | 0.26 | 1.2 | 0.7 | 1.2 | 9.42 | 118.8 | 26.00 |
| 5 | 1 | 0.26 | 1.34 | 0.7 | 1.3 | 10.00 | 140.0 | 19.50 |
| 5 | 1.5 | 0.26 | 1.8 | 0.8 | 1.3 | 11.78 | 192.8 | 13.30 |
| 5 | 2.5 | 0.26 | 2.37 | 0.9 | 1.4 | 14.06 | 283.3 | 7.98 |
| 6 | 0.75 | 0.26 | 1.2 | 0.7 | 1.3 | 10.40 | 141.4 | 26.00 |
| 6 | 1 | 0.26 | 1.34 | 0.7 | 1.3 | 10.82 | 160.7 | 19.50 |
| 6 | 1.5 | 0.26 | 1.8 | 0.8 | 1.4 | 13.00 | 227.9 | 13.30 |
| 6 | 2.5 | 0.26 | 2.37 | 0.9 | 1.4 | 15.31 | 327.8 | 7.98 |
| 7 | 0.75 | 0.26 | 1.2 | 0.7 | 1.3 | 10.40 | 154.5 | 26.00 |
| 7 | 1 | 0.26 | 1.34 | 0.7 | 1.3 | 10.82 | 176.5 | 19.50 |
| 7 | 1.5 | 0.26 | 1.8 | 0.8 | 1.4 | 13.00 | 251.2 | 13.30 |
| 7 | 2.5 | 0.26 | 2.37 | 0.9 | 1.4 | 15.31 | 364.1 | 7.98 |
| 8 | 0.75 | 0.26 | 1.2 | 0.7 | 1.3 | 10.79 | 169.8 | 26.00 |
| 8 | 1 | 0.26 | 1.34 | 0.7 | 1.3 | 11.23 | 194.9 | 19.50 |
| 8 | 1.5 | 0.26 | 1.8 | 0.8 | 1.4 | 13.51 | 277.7 | 13.30 |
| 8 | 2.5 | 0.26 | 2.37 | 0.9 | 1.5 | 16.14 | 412.4 | 7.98 |
| 10 | 0.75 | 0.26 | 1.2 | 0.7 | 1.4 | 13.20 | 215.2 | 26.00 |
| 10 | 1 | 0.26 | 1.34 | 0.7 | 1.4 | 13.76 | 246.6 | 19.50 |
| 10 | 1.5 | 0.26 | 1.8 | 0.8 | 1.5 | 16.60 | 351.1 | 13.30 |
| 10 | 2.5 | 0.26 | 2.37 | 0.9 | 1.6 | 19.88 | 518.6 | 7.98 |
| 12 | 0.75 | 0.26 | 1.2 | 0.7 | 1.4 | 13.60 | 244.0 | 26.00 |
| 12 | 1 | 0.26 | 1.34 | 0.7 | 1.4 | 14.18 | 280.8 | 19.50 |
| 12 | 1.5 | 0.26 | 1.8 | 0.8 | 1.5 | 17.13 | 401.2 | 13.30 |
| 12 | 2.5 | 0.26 | 2.37 | 0.9 | 1.6 | 20.53 | 596.0 | 7.98 |
| 14 | 0.75 | 0.26 | 1.2 | 0.7 | 1.4 | 14.27 | 274.6 | 26.00 |
| 14 | 1 | 0.26 | 1.34 | 0.7 | 1.4 | 14.89 | 317.1 | 19.50 |
| 14 | 1.5 | 0.26 | 1.8 | 0.8 | 1.5 | 18.00 | 453.8 | 13.30 |
| 14 | 2.5 | 0.26 | 2.37 | 0.9 | 1.6 | 21.60 | 676.8 | 7.98 |
| 16 | 0.75 | 0.26 | 1.2 | 0.7 | 1.4 | 15.02 | 305.6 | 26.00 |
| 16 | 1 | 0.26 | 1.34 | 0.7 | 1.5 | 15.88 | 361.4 | 19.50 |
| 16 | 1.5 | 0.26 | 1.8 | 0.8 | 1.6 | 19.18 | 515.8 | 13.30 |
