01 / Construction & ratings

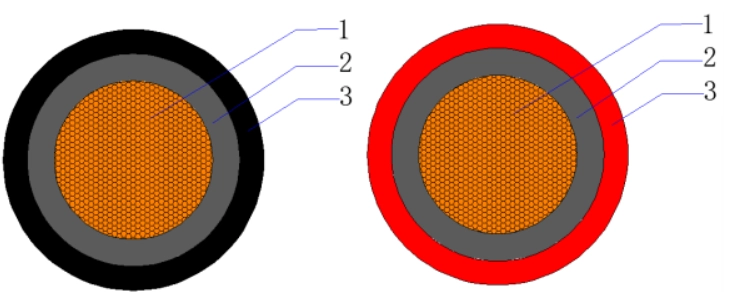

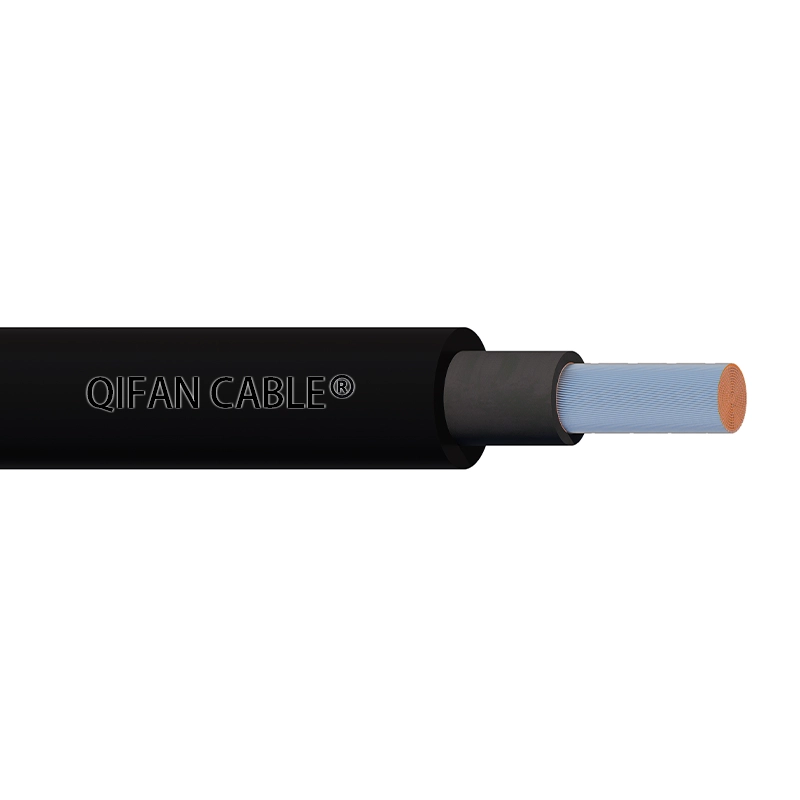

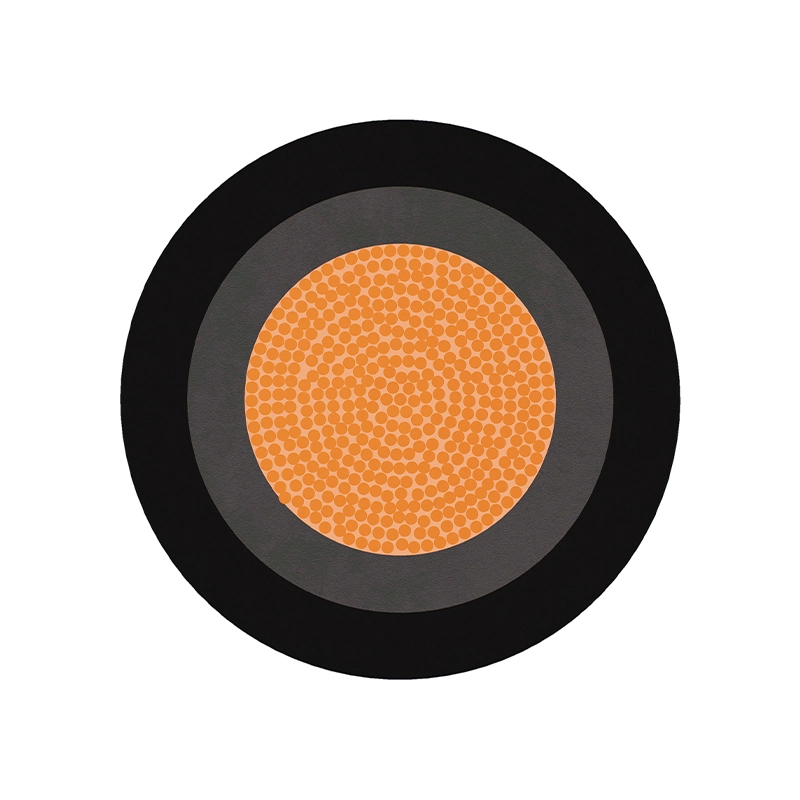

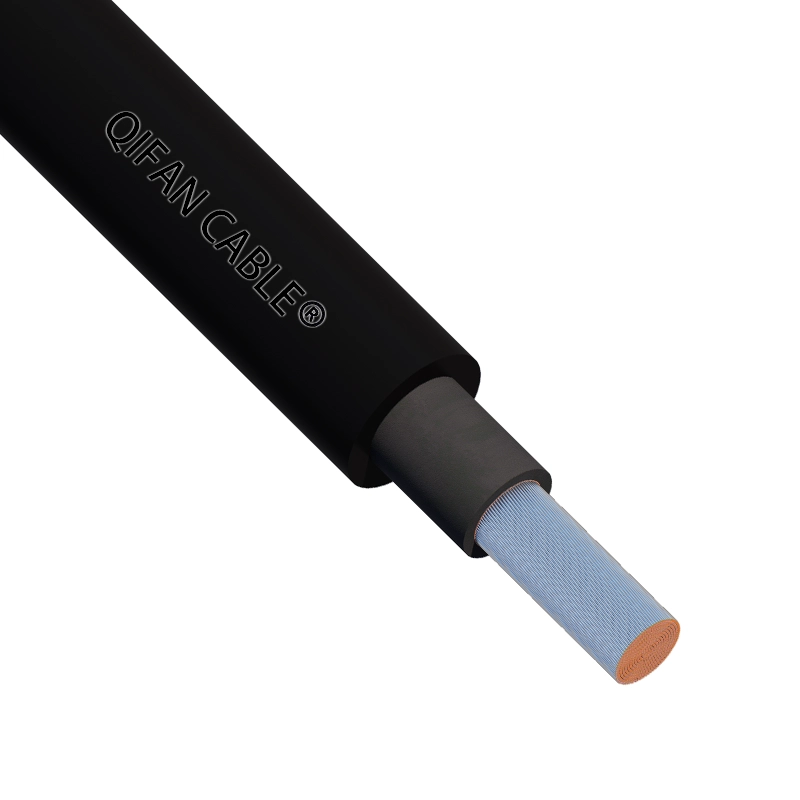

Construction & ratings
- Cable design: EN50618
- Conductor – Flexible tinned annealed class 5 copper
- Insulation – Cross-linked polyolefins (XLPO)
- Sheath – Cross-linked polyolefins (XLPO)
- 1C1.5~240mm2
- Maximum operating temperature of conductor：+90℃
- For a maximum of 20 000 hours a max. conductor temperature of 120 °C
- Ambient temperature：-40℃~+90℃
- Cable laying temperature：≥-25℃
- Rated voltage: AC 1.0/1.0kV (DC 1.5kV)
- High voltage test: 6.5kV / 5min
- Insulation: Black
- Sheath：Black or Red
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Size mm2 | Max. Diameter of single wire in conductor (mm) | Insulation Thickness mm | Outer-sheath Thickness mm | Overall Diameter mm | Max. DC resistance at 20C (Ω/km) |
|---|---|---|---|---|---|
| 1X1.5 | 0.26 | 0.7 | 0.8 | 4.6 | 13.7 |
| 1X2.5 | 0.26 | 0.7 | 0.8 | 5.0 | 8.21 |
| 1X4.0 | 0.31 | 0.7 | 0.8 | 5.6 | 5.09 |
| 1X6.0 | 0.31 | 0.7 | 0.8 | 6.3 | 3.39 |
| 1X10 | 0.41 | 0.7 | 0.8 | 7.4 | 1.95 |
| 1X16 | 0.41 | 0.7 | 0.9 | 8.6 | 1.24 |
| 1X25 | 0.41 | 0.9 | 1.0 | 11.1 | 0.795 |
| 1X35 | 0.41 | 0.9 | 1.1 | 13.0 | 0.565 |
| 1X50 | 0.41 | 1.0 | 1.2 | 15.1 | 0.393 |
| 1X70 | 0.51 | 1.1 | 1.2 | 17.2 | 0.277 |
| 1X95 | 0.51 | 1.1 | 1.3 | 18.6 | 0.210 |
| 1X120 | 0.51 | 1.2 | 1.3 | 20.6 | 0.164 |
| 1X150 | 0.51 | 1.4 | 1.4 | 23.4 | 0.132 |
| 1X185 | 0.51 | 1.6 | 1.6 | 25.5 | 0.108 |
| 1X240 | 0.51 | 1.7 | 1.7 | 28.7 | 0.0817 |
