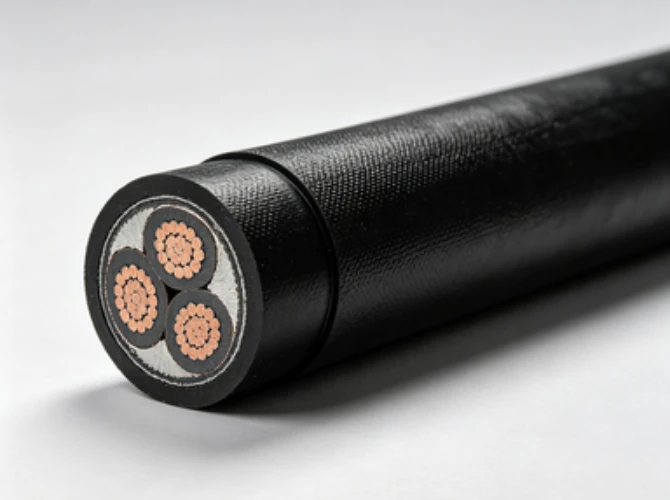

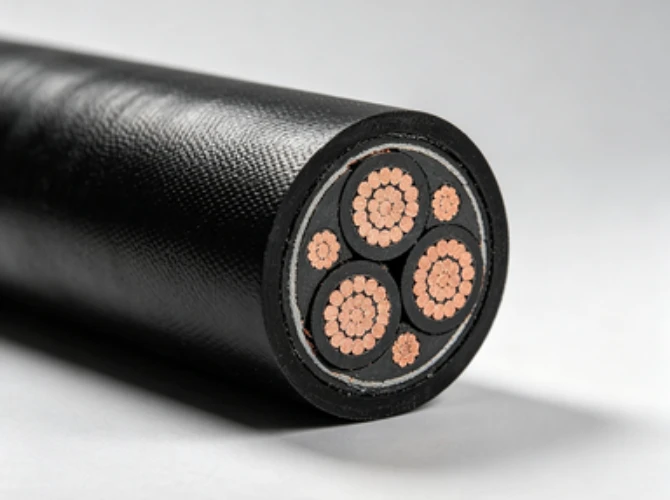

01 / Construction & ratings
Construction & ratings
- Voltage Rating Uo/U (Um): 8.7/15 (17.5)kV
- Conductor screen: semi-conducting layer (extruded type)
- Minimum Bending Radius: Single core – Fixed: 12 x overall diameter; 3 core – Fixed: 10 x overall diameter
- Conductor: stranded circular or compacted copper (aluminum optional)
- Insulation: XLPE (cross-linked polyethylene)
- Non metallic insulation Screen: semi-conducting layer
- Metallic insulation screen: copper tape (wrapped closely)
- Tape: water blocking tape (double layer)
- Armor: steel wire armor (galvanized, anti-corrosion)
- Outer sheath: PVC or HDPE (LSZH available on request)
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| NominalCSAmm2 | Approx.Conductordiameter | NominalInsulation Thicknessmm | Outer Sheath thicknessmm | Approx. Cable diametermm | Approx. cable weightkg/km | |
|---|---|---|---|---|---|---|
| mm | CU | AL | ||||
| 95 | 11.6 | 13 | 4 | 69.1 | 4671 | 3935 |
| 120 | 13 | 13 | 4 | 70.5 | 5017 | 4128 |
| 150 | 14.4 | 13 | 4 | 71.9 | 5392 | 4334 |
| 185 | 16.1 | 13 | 4 | 74.7 | 5910 | 4629 |
| 240 | 18.4 | 12 | 4 | 75.3 | 6504 | 4866 |
| 300 | 20.6 | 12 | 4 | 77.5 | 7228 | 5235 |
| 400 | 23.4 | 12 | 4 | 80.3 | 8237 | 5725 |
| 500 | 26.6 | 12 | 4 | 83.5 | 9485 | 6271 |
| 630 | 30 | 12 | 4 | 86.9 | 11015 | 6939 |
| 800 | 34 | 12 | 4 | 90.9 | 12954 | 7729 |
| 800(SM) | 35.6 | 12 | 4 | 93.5 | 13216 | 8043 |
| 1000(SM) | 39.7 | 12 | 4.5 | 99.5 | 15684 | 9220 |
| 1200(SM) | 42.8 | 12 | 4.5 | 102.5 | 17457 | 9948 |
| 1400(SM) | 46.4 | 12 | 4.5 | 106 | 19594 | 10803 |
| 1600(SM) | 49.2 | 12 | 4.5 | 109.2 | 21633 | 11622 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
