01 / Construction & ratings
Construction & ratings

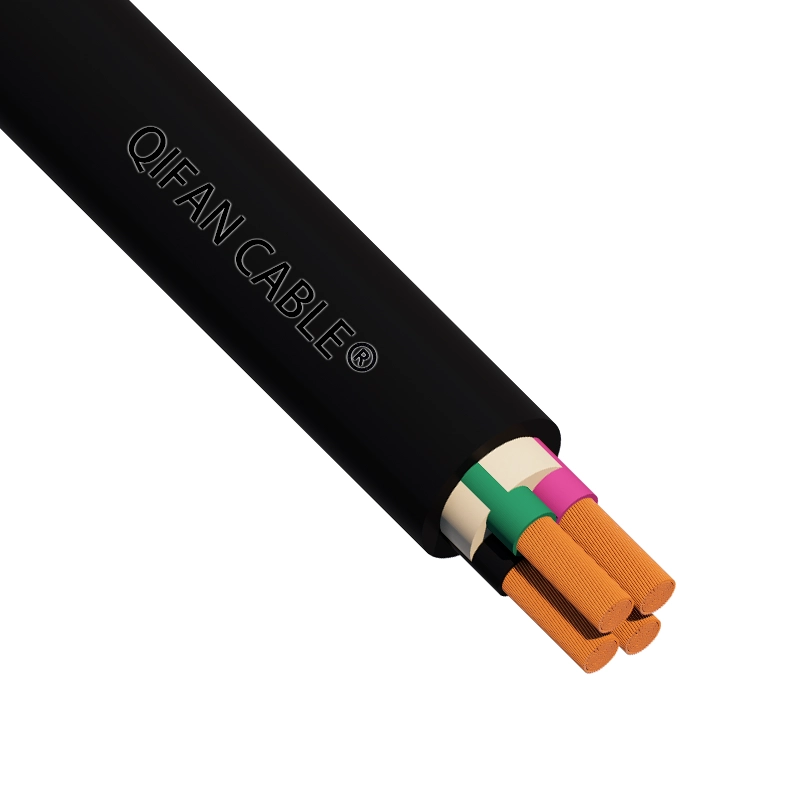

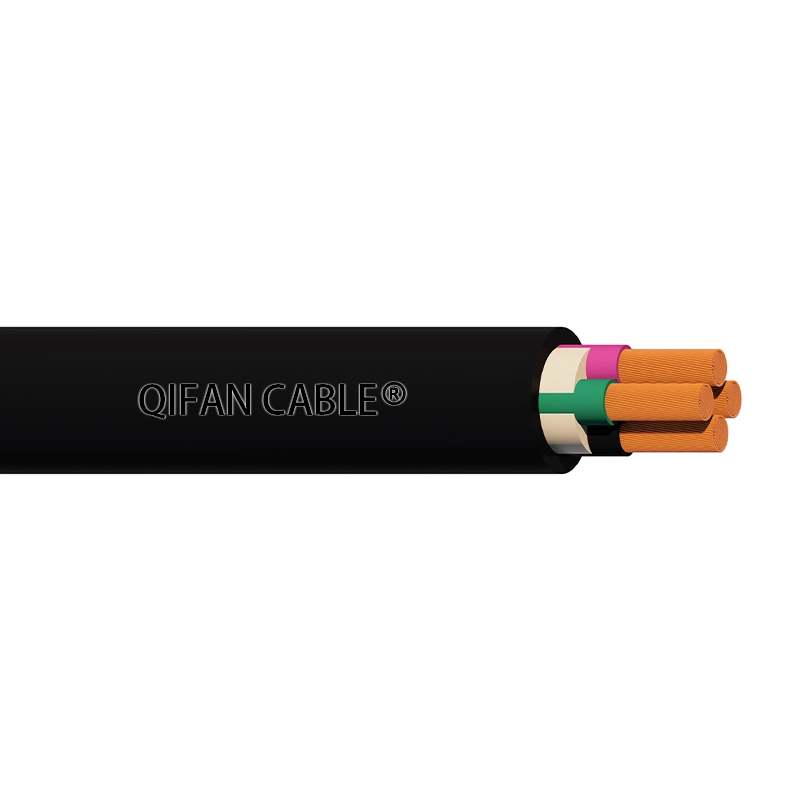

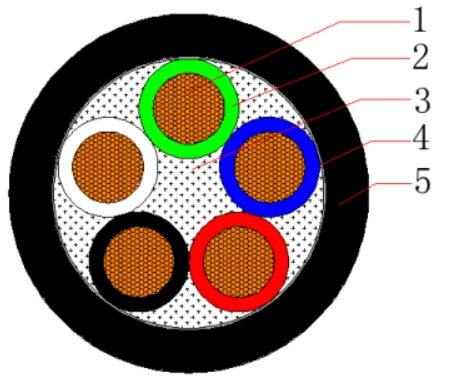

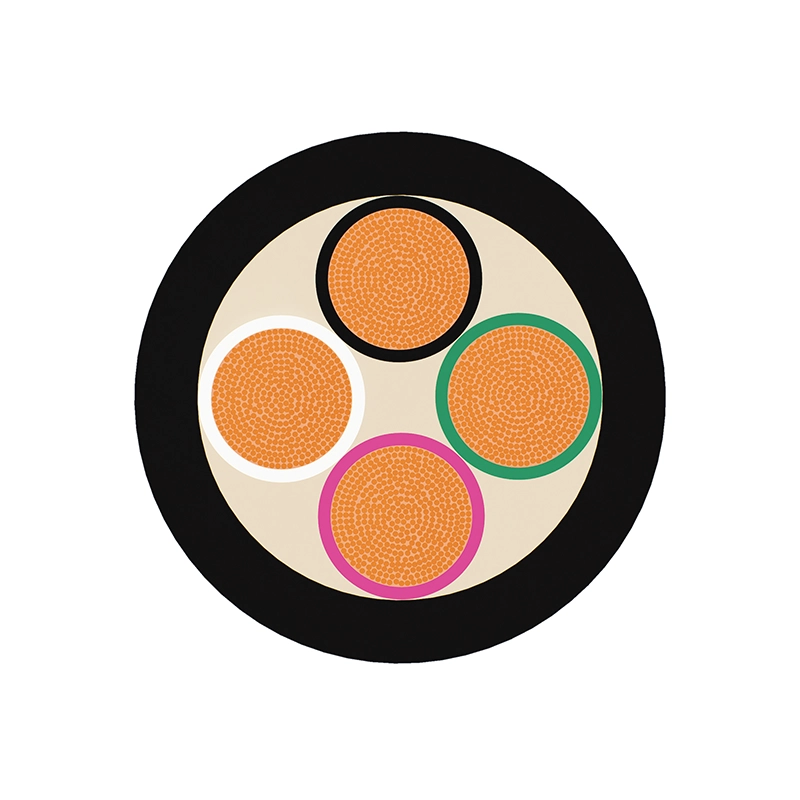

- Cable design: UL62 Flexible Cords and Cables
- CSA C22.2 No. 49 Flexible Cords and Cables
- Conductor – Plain flexible annealed stranded copper
- Insulation – (60℃, 75℃, 90℃)EP rubber
- Filler – Flame retardant high temperature filling rope (If need)
- Binder tape – Flame retardant tape
- Outer jacket – (60℃, 75℃, 90℃) CPE rubber
- 2C18AWG~2AWG
- 3C18AWG~2AWG
- 4C18AWG~2AWG
- 5C18AWG~5AWG
- Conductor operating temperature: -40℃~+90℃
- Operating ambient temperature:-20℃~+80℃
- Rated voltage: 600V
- 18AWG~13AWG High voltage test: 2.0kV / 1min
- 12AWG~9AWG High voltage test: 3.0kV / 1min
- 8AWG~2AWG High voltage test: 4.0kV / 1min
- Insulation: Black, According to customer requirements
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Cond. Size AWG/Kcmil | Cond. Number No. | Cond. Strands No. | Insul. Thickness (mil) | Jacket Thickness (mil) | Approx OD (inch) | Approx Weight (lb/1000ft) | Ampacity (Amp) | Insul. Color | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|
| 18 | 2 | 16 | 30 | 70 | 0.348 | 67 | 10 | BK,WE | BK |
| 18 | 3 | 16 | 30 | 70 | 0.37 | 80 | 7 | BK,WE,GN | BK |
| 18 | 4 | 16 | 30 | 70 | 0.39 | 95 | 5 | BK,WE,RD,GN | BK |
| 18 | 5 | 16 | 30 | 95 | 0.465 | 134 | 5 | BK,WE,RD,GN,OE | BK |
| 16 | 2 | 26 | 30 | 70 | 0.37 | 76 | 13 | BK,WE | BK |
| 16 | 3 | 26 | 30 | 70 | 0.395 | 94 | 10 | BK,WE,GN | BK |
| 16 | 4 | 26 | 30 | 70 | 0.42 | 111 | 8 | BK,WE,RD,GN | BK |
| 16 | 5 | 26 | 30 | 95 | 0.514 | 162 | 8 | BK,WE,RD,GN,OE | BK |
| 14 | 2 | 41 | 45 | 85 | 0.501 | 132 | 18 | BK,WE | BK |
| 14 | 3 | 41 | 45 | 90 | 0.53 | 165 | 15 | BK,WE,GN | BK |
| 14 | 4 | 41 | 45 | 90 | 0.57 | 201 | 12 | BK,WE,RD,GN | BK |
| 14 | 5 | 41 | 45 | 105 | 0.655 | 254 | 12 | BK,WE,RD,GN,OE | BK |
| 12 | 2 | 65 | 45 | 105 | 0.58 | 182 | 25 | BK,WE | BK |
| 12 | 3 | 65 | 45 | 115 | 0.605 | 221 | 20 | GN,WE,BK | BK |
| 12 | 3 | 65 | 45 | 115 | 0.606 | 224 | 20 | BK,WE,GN | BK |
| 12 | 4 | 65 | 45 | 105 | 0.644 | 266 | 16 | BK,WE,RD,GN | BK |
| 12 | 5 | 65 | 45 | 100 | 0.709 | 295 | 16 | BK,WE,RD,GN,OE | BK |
| 10 | 2 | 104 | 45 | 105 | 0.63 | 222 | 30 | BK,WE | BK |
| 10 | 3 | 104 | 45 | 120 | 0.665 | 295 | 25 | BK,WE,GN | BK |
| 10 | 4 | 104 | 45 | 105 | 0.715 | 347 | 20 | BK,WE,RD,GN | BK |
| 10 | 5 | 104 | 45 | 120 | 0.772 | 444 | 20 | BK,WE,RD,GN,OE | BK |
| 8 | 3 | 133 | 60 | 125 | 0.842 | 426 | 35 | BK,WE,GN | BK |
| 8 | 3 | 133 | 60 | 125 | 0.849 | 444 | 35 | BK,RD,GN | BK |
| 8 | 4 | 133 | 60 | 155 | 0.954 | 596 | 28 | BK,WE,RD,GN | BK |
| 8 | 5 | 133 | 60 | 165 | 1.036 | 717 | 28 | BK,WE,RD,GN,OE | BK |
| 6 | 3 | 133 | 60 | 195 | 0.99 | 675 | 45 | BK,WE,GN | BK |
| 6 | 4 | 133 | 60 | 205 | 1.075 | 830 | 36 | BK,WE,RD,GN | BK |
