01 / Construction & ratings

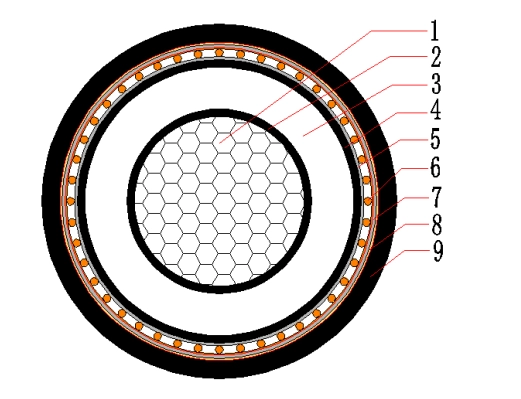

Construction & ratings
- 1. Conductor – Class 2 compacted aluminum
- 2. Conductor screen – Semi-conductive compound
- 3. Insulation – Cross linked polyethylene (XLPE)
- 4. Insulation screen – Semi-conductive compound
- 5. Semi-conductive water-block tape
- 6. Metallic screen – Plain annealed copper wire,reinforced with a copper tape
- 7. Binder tape – Water-block tape
- 8. Radial water-block layer – Aluminum plastic composite tape longitudinally applied
- 9. Outer sheath – High density polyethylene (HDPE)
- 1 core; 16~800mm2
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
Review the construction and specification data below to compare this cable with your project requirements.
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
