01 / Construction & ratings

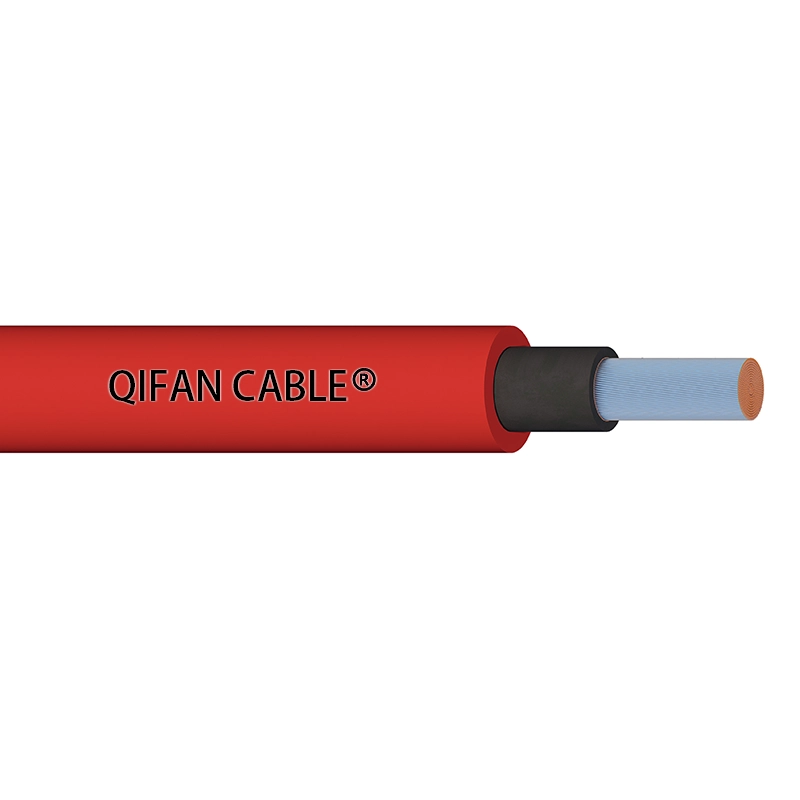

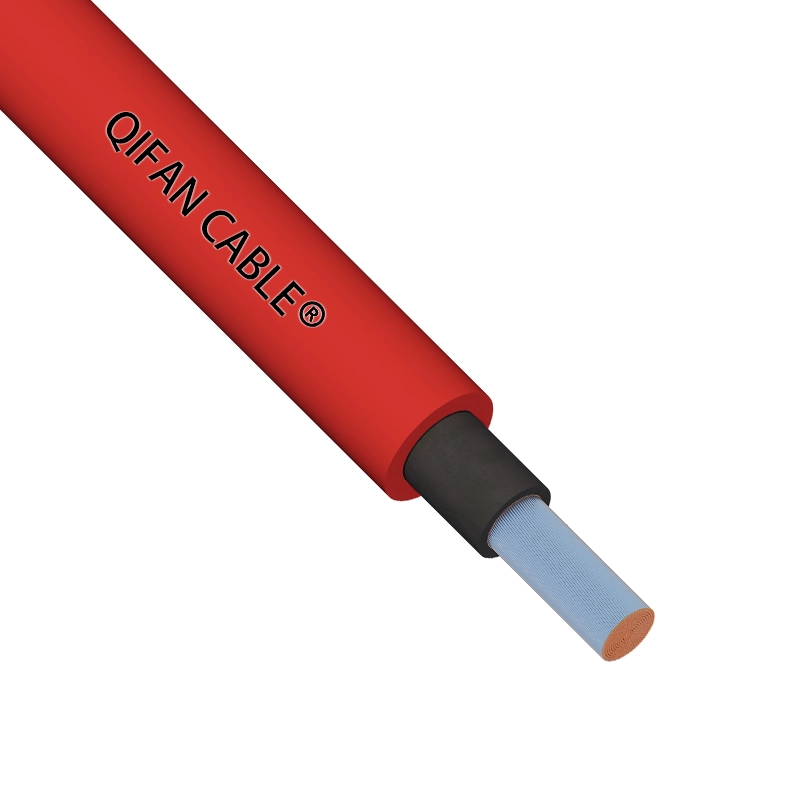

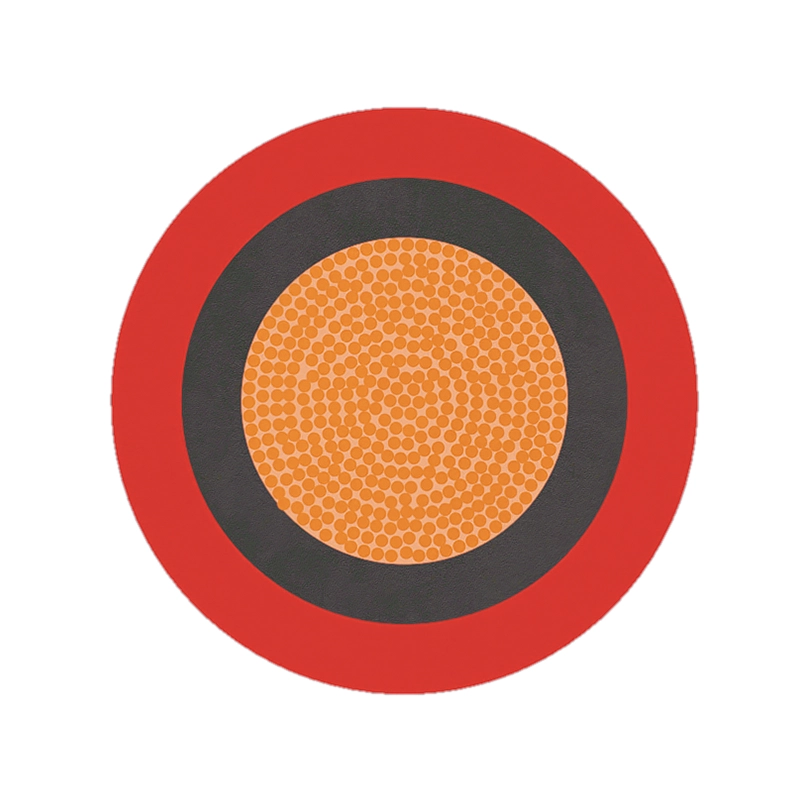

Construction & ratings
- Cable design:2 Pfg 1169/08.2007
- Conductor – Flexible tinned annealed class 5 copper
- Insulation – Cross-linked polyolefins (XLPO)
- Sheath – Cross-linked polyolefins (XLPO)
- 1C1.5~35mm2
- Ambient temperature：-40℃~+90℃
- Max. temperature at conductor: 120 °C
- The cables are intended to operate at ambient temperature until 90°C. For this a temperature index of 120°C applies to the insulation and the sheath, based on EN 60216-1 (20.000h, 50% residual elongation).
- Cable laying temperature：≥-25℃
- Rated voltage: AC 0.6/1.0kV (DC 1.8kV)
- High voltage test: 6.5kV / 5min
- Insulation: Black
- Sheath：Black or Red
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Nominal Size (mm2) | Conductor Structure (No./mm) | Conductor Diameter (mm) | Approximate Cable Outer Diameter (mm) | Approximate Cable Weight (kg/km) | Maximum DC Resistance of Conductor at 20℃(Ω/km) |
|---|---|---|---|---|---|
| 1×1.5 | 45/0.196 | 1.51 | 4.3 | 32 | 13.7 |
| 1×2.5 | 74/0.196 | 1.94 | 4.7 | 43 | 8.21 |
| 1×4 | 56/0.280 | 2.41 | 5.2 | 57 | 5.09 |
| 1×6 | 84/0.280 | 2.96 | 5.8 | 76 | 3.39 |
| 1×10 | 74/0.40 | 4 | 6.9 | 122 | 1.95 |
| 1×16 | 117/0.40 | 5 | 8.2 | 183 | 1.24 |
| 1×25 | 182/0.40 | 6.5 | 9.9 | 273 | 0.795 |
| 1×35 | 255/0.40 | 7.8 | 11.2 | 367 | 0.565 |
