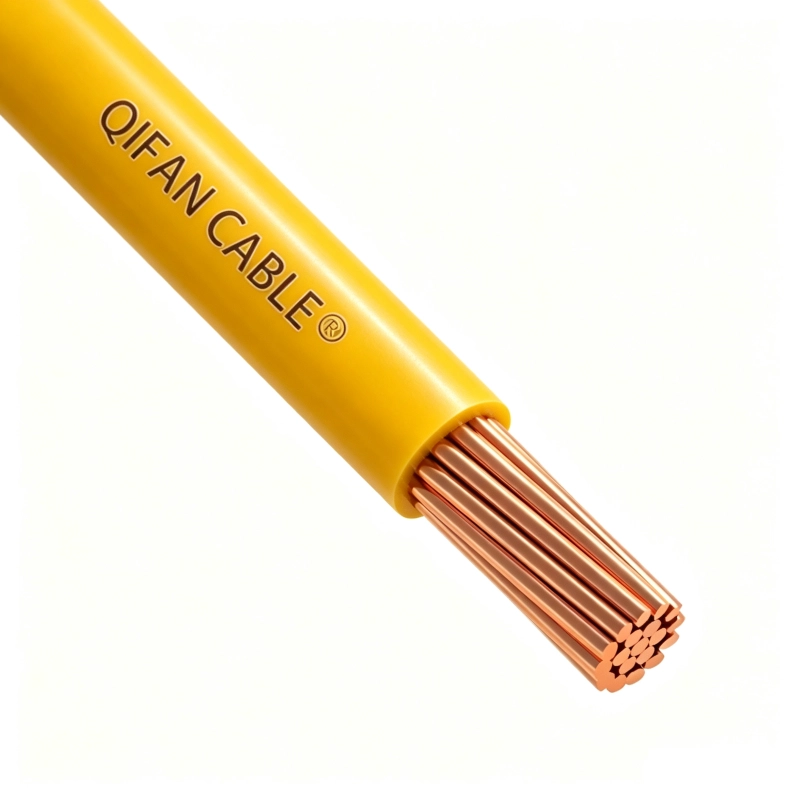

01 / Construction & ratings
Construction & ratings
- Conductor : – Plain stranded annealed class B copper
- Insulation: -Cross-linked polyethylene(XLPE)
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Conductor | Insulation Thickness | Nominal O.D. | Approx. Weight per 1000′ | Allowable Ampacities | ||||
|---|---|---|---|---|---|---|---|---|
| Size (AWG or kcmil) | Number of Strands | (in.) | (mm) | (in.) | (mm) | (lbs.) | (kg/km) | 90°C (A) |
| 14 | 7 | 0.030 | 0.76 | 0.131 | 3.3 | 18 | 27 | 15 |
| 12 | 7 | 0.030 | 0.76 | 0.149 | 3.8 | 24 | 39 | 20 |
| 10 | 7 | 0.030 | 0.76 | 0.173 | 4.4 | 37 | 58 | 30 |
| 8 | 7 | 0.045 | 1.14 | 0.232 | 5.9 | 65 | 98 | 55 |
| 6 | 7 | 0.045 | 1.14 | 0.268 | 6.8 | 96 | 156 | 75 |
| 4 | 7 | 0.045 | 1.14 | 0.315 | 8.0 | 147 | 235 | 100 |
| 2 | 7 | 0.045 | 1.14 | 0.373 | 9.5 | 227 | 353 | 130 |
| 1 | 19 | 0.055 | 1.40 | 0.432 | 11.0 | 291 | 463 | 145 |
| 1/0 | 19 | 0.055 | 1.40 | 0.472 | 12.0 | 363 | 570 | 170 |
| 2/0 | 19 | 0.055 | 1.40 | 0.504 | 12.8 | 453 | 701 | 195 |
| 3/0 | 19 | 0.055 | 1.40 | 0.567 | 14.4 | 565 | 866 | 225 |
| 4/0 | 19 | 0.055 | 1.40 | 0.622 | 15.8 | 706 | 1,070 | 260 |
| 250 | 37 | 0.065 | 1.65 | 0.689 | 17.5 | 835 | 1,287 | 290 |
| 300 | 37 | 0.065 | 1.65 | 0.740 | 18.8 | 995 | 1,519 | 320 |
| 350 | 37 | 0.065 | 1.65 | 0.791 | 20.1 | 1,155 | 1,752 | 350 |
| 400 | 37 | 0.065 | 1.65 | 0.835 | 21.2 | 1,314 | 1,990 | 380 |
| 500 | 37 | 0.065 | 1.65 | 0.917 | 23.3 | 1,633 | 2,448 | 430 |
| 600 | 61 | 0.080 | 2.03 | 1.026 | 26.1 | 1,965 | 2,961 | 475 |
| 750 | 61 | 0.080 | 2.03 | 1.129 | 28.7 | 2,440 | 3,656 | 535 |
| 1000 | 61 | 0.080 | 2.03 | 1.278 | 32.5 | 3,229 | 4,810 | 615 |
