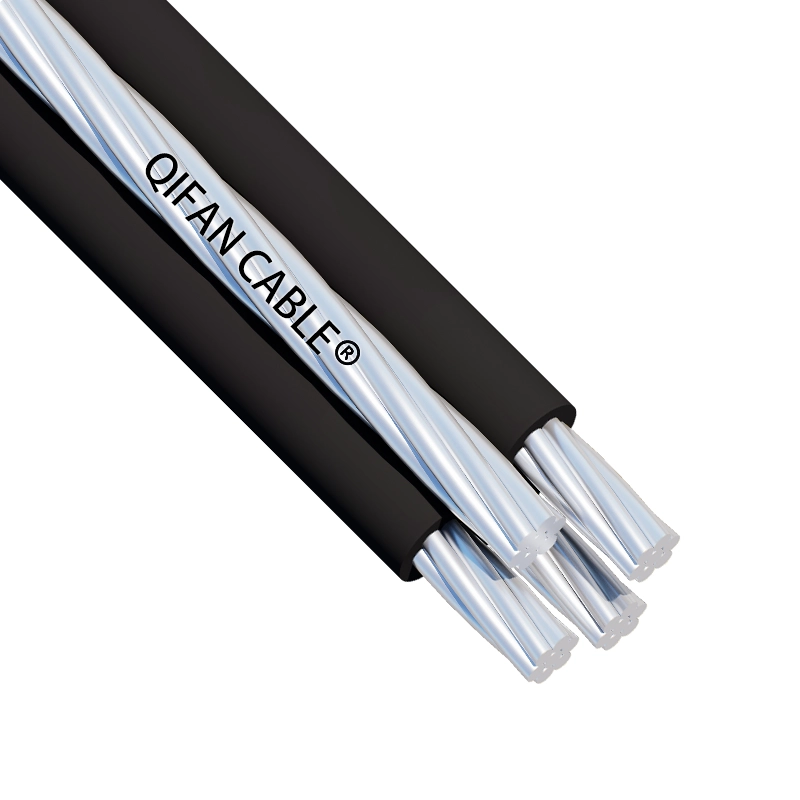

01 / Construction & ratings
Construction & ratings
- ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts.
- ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
- ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors.
- ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors.
- ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
- ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Duplex Service Drop – Aluminum Conductors | ||||||||
|---|---|---|---|---|---|---|---|---|
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Pekingese | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 11.1 | 92 |
| Collie | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 11.5 | 94 |
| Cocker | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 12.2 | 100 |
| Dachshund | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 13.4 | 140 |
| Spaniel | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 13.9 | 143 |
| Cairn | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 14.6 | 150 |
| Doberman | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 16.9 | 220 |
| Airedale | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 19.6 | 280 |
| Basset | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 21.8 | 355 |
| Malemute | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 21.6 | 350 |
| AAC/XLPE+AAAC | ||||||||
| Chihuahua | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 11.4 | 98 |
| Vizsla | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 11.8 | 100 |
| Harrier | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 13.8 | 149 |
| Whippet | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 14.4 | 154 |
| Schnauzer | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 17.5 | 235 |
| Afghan | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 22.5 | 378 |
| Heeler | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 22.3 | 375 |
| AAC/XLPE+ACSR | ||||||||
| Setter | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 11.4 | 109 |
| Shepherd | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 11.8 | 112 |
| Retriever | 6 | 7 | 1.52 | 6 | 6/1 | 1.68 | 12.6 | 119 |
| Eskimo | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 13.8 | 166 |
| Terrier | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 14.4 | 170 |
| Yorkshire | 4 | 7 | 1.52 | 4 | 6/1 | 2.12 | 15.1 | 180 |
| Chow | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 17.5 | 262 |
| Labrador | 1 | 19 | 1.52 | 1 | 6/1 | 3 | 20.2 | 339 |
| Bloodhound | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 22.5 | 425 |
| Bull | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 22.3 | 422 |
| Triplex Service Drop – Aluminum Conductors | ||||||||
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Haiotis | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 12.6 | 148 |
| Pike | 6 | 7 | 0.76 | 6 | 7 | 1.56 | 12.1 | 139 |
| Patella | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 13.2 | 154 |
| Albus | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 14.3 | 170 |
| Fusus | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 15 | 221 |
| Limpet | 4 | 7 | 1.14 | 6 | 7 | 1.56 | 14.9 | 208 |
| Oyster | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 15.8 | 230 |
| Argo | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 16.9 | 249 |
| Clam | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 19 | 347 |
| Thia | 2 | 7 | 1.52 | 2 | 7 | 2.47 | 20.1 | 370 |
| Mussel | 2 | 7 | 1.14 | 4 | 7 | 1.96 | 17.9 | 312 |
| Pyrula | 1 | 7 | 1.52 | 1 | 7 | 2.78 | 22.4 | 465 |
| Hyas | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 22.2 | 450 |
| Snail | 1/0 | 7 | 1.52 | 2 | 7 | 2.47 | 23.2 | 517 |
| Murex | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 24.6 | 572 |
| Purpura | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 24.4 | 554 |
| Nassa | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.5 | 27.1 | 706 |
| Trophon | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.5 | 26.8 | 684 |
| Quahog | 3/0 | 7 | 2.03 | 3/0 | 7 | 3.93 | 31.3 | 920 |
| Ione | 3/0 | 19 | 2.03 | 3/0 | 7 | 3.93 | 31 | 892 |
| Melita | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 29.7 | 845 |
| Coquina | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 33 | 1082 |
| Tusk | 4/0 | 7 | 2.03 | 4/0 | 7 | 4.42 | 34.5 | 1134 |
| Apus | 4/0 | 19 | 2.03 | 4/0 | 7 | 4.42 | 34.1 | 1098 |
| Portunus | 4/0 | 19 | 2.03 | 4/0 | 19 | 2.68 | 34.2 | 1098 |
| Chiton | 266.8 | 19 | 2.03 | 266.8 | 19 | 3.01 | 38.4 | 1379 |
| Alverno | 300 | 37 | 2.03 | 4/0 | 19 | 2.68 | 37.8 | 1386 |
| Nannynose | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 42.4 | 1707 |
| AAC/XLPE+AAAC | ||||||||
| Minex | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 12.8 | 154 |
| Hippa | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 13.4 | 160 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAAC | ||||||||
| Artemia | 4 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.4 | 205 |
| Crad | 4 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.2 | 214 |
| Prawn | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 15.3 | 231 |
| Barnacle | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 16.1 | 239 |
| Solaster | 2 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.2 | 322 |
| Pagurus | 2 | 7 | 1.52 | 48.69 | 7 | 2.12 | 19.3 | 345 |
| Shrimp | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 19.4 | 362 |
| Lobster | 2 | 7 | 1.52 | 77.47 | 7 | 2.67 | 20.5 | 385 |
| Sanderab | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 23.6 | 532 |
| Echinus | 1/0 | 19 | 1.52 | 77.47 | 7 | 2.67 | 23.4 | 514 |
| Gammarus | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 25.1 | 597 |
| Leda | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 24.9 | 579 |
| Crayfish | 2/0 | 7 | 1.52 | 97.65 | 7 | 3 | 26 | 655 |
| Sipho | 2/0 | 19 | 1.52 | 97.65 | 7 | 3 | 25.7 | 633 |
| Abalone | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 26.8 | 691 |
| Spirula | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 26.5 | 669 |
| Dungenese | 2/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 27.7 | 736 |
| Cyclops | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 27.4 | 714 |
| Slug | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 28.6 | 809 |
| Fulgur | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 28.4 | 781 |
| Balanus | 3/0 | 19 | 2.03 | 123.3 | 7 | 3.37 | 29.8 | 828 |
| Stonecrab | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 30.5 | 904 |
| Flustra | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 30.3 | 884 |
| Crisia | 3/0 | 19 | 2.03 | 195.7 | 7 | 4.25 | 31.7 | 931 |
| Squid | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 31.6 | 1001 |
| Arca | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.3 | 966 |
| Bugula | 4/0 | 19 | 2.03 | 155.4 | 7 | 3.78 | 32.7 | 1018 |
| Kingcrab | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 33.8 | 1131 |
| Lepas | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 33.4 | 1096 |
| Cassis | 4/0 | 19 | 2.03 | 246.9 | 7 | 4.77 | 34.9 | 1147 |
| Cyphoma | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.8 | 957 |
| Mitre | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.4 | 921 |
| Argonaut | 336.4 | 19 | 2.03 | 246.9 | 7 | 4.77 | 40.5 | 1579 |
| Nautilis | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 43.4 | 1787 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+ACSR | ||||||||
| Paludina | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 12.8 | 165 |
| Voluta | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 13.4 | 171 |
| Bolma | 6 | 7 | 1.52 | 6 | 6/1 | 1.68 | 14.5 | 188 |
| Scallop | 4 | 1 | 1.14 | 6 | 6/1 | 1.68 | 14.4 | 217 |
| Strombus | 4 | 7 | 1.14 | 6 | 6/1 | 1.68 | 15.1 | 225 |
| Carnea | 4 | 7 | 1.52 | 6 | 6/1 | 1.68 | 16.2 | 244 |
| Whelk | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 15.3 | 249 |
| Periwinkle | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 16.1 | 257 |
| Calma | 4 | 7 | 1.52 | 4 | 6/1 | 2.12 | 17.2 | 277 |
| Cockle | 2 | 7 | 1.14 | 4 | 6/1 | 2.12 | 18.2 | 340 |
| Gebia | 2 | 7 | 1.52 | 4 | 6/1 | 2.12 | 19.3 | 363 |
| Conch | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 19.4 | 391 |
| Uca | 2 | 7 | 1.52 | 2 | 6/1 | 2.67 | 20.5 | 414 |
| Vermeths | 1 | 7 | 1.52 | 1 | 6/1 | 3 | 22.9 | 520 |
| Atya | 1 | 19 | 1.52 | 1 | 6/1 | 3 | 22.6 | 506 |
| Janthina | 1/0 | 7 | 1.52 | 2 | 6/1 | 2.67 | 23.6 | 561 |
| Ranella | 1/0 | 19 | 1.52 | 2 | 6/1 | 2.67 | 23.4 | 543 |
| Neritina | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 25.1 | 642 |
| Cenia | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 24.9 | 624 |
| Cavolinia | 2/0 | 7 | 1.52 | 1 | 6/1 | 3 | 26 | 691 |
| Clio | 2/0 | 19 | 1.52 | 1 | 6/1 | 3 | 25.7 | 669 |
| Runcina | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 27.7 | 794 |
| Triton | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 27.4 | 772 |
| Sanddollar | 3/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 28.6 | 854 |
| Aega | 3/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 28.4 | 827 |
| Pisa | 3/0 | 19 | 2.03 | 1/0 | 6/1 | 3.37 | 29.8 | 874 |
| Cherrystone | 3/0 | 7 | 1.52 | 3/0 | 6/1 | 4.25 | 30.5 | 983 |
| Mursia | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 4.25 | 30.3 | 956 |
| Mysis | 3/0 | 19 | 2.03 | 3/0 | 6/1 | 4.25 | 31.7 | 1003 |
| Cuttlefish | 4/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 31.7 | 1059 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+ACSR | ||||||||
| Cerapus | 4/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 31.3 | 1024 |
| Nepatus | 4/0 | 19 | 2.03 | 2/0 | 6/1 | 3.78 | 32.7 | 1075 |
| Razor | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 4.77 | 33.8 | 1222 |
| Zuzara | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 4.77 | 33.4 | 1187 |
| Alima | 4/0 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 34.9 | 1238 |
| Callista | 266.8 | 19 | 2.03 | 3/0 | 6/1 | 4.25 | 36.7 | 1350 |
| Dosinia | 266.8 | 19 | 2.03 | 266.8 | 18/1 | 3.09 | 38.7 | 1438 |
| Cowry | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 40.5 | 1670 |
| Limpet | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3.47 | 42.7 | 1782 |
| Quadruplex Service Drop – Aluminum Conductors | ||||||||
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Quarter | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 14.4 | 203 |
| Clydesdate | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 17.1 | 302 |
| Pinto | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 18.1 | 315 |
| Mustang | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 21.7 | 474 |
| Shire | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 25.4 | 616 |
| Libyan | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 28.2 | 784 |
| Criollo | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 27.9 | 757 |
| Orloff | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.5 | 30.9 | 965 |
| Percheron | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.5 | 30.6 | 931 |
| Mongolian | 3/0 | 7 | 1.52 | 3/0 | 7 | 3.93 | 34.1 | 1190 |
| Hanoverian | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 33.8 | 1148 |
| Singlefoot | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 37.6 | 1474 |
| Oldenburg | 4/0 | 19 | 1.52 | 4/0 | 19 | 2.68 | 37.2 | 1421 |
| Lippizaner | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 48.3 | 2322 |
| AAC/XLPE+AAAC | ||||||||
| Bay | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.7 | 209 |
| French-Coach | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.4 | 218 |
| German-Coach | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 17.4 | 312 |
| Arabian | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.4 | 324 |
| Belgian | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 22 | 489 |
| Viatka | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 27.4 | 743 |
| Thoroughbred | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.1 | 962 |
| Celtic | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.7 | 950 |
| Norman | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.3 | 917 |
| Donkey | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 33 | 1126 |
| Burro | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 32.7 | 1085 |
| Dobbin | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 34.6 | 1229 |
| Trotter | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 34.3 | 1188 |
| Roan | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 35.7 | 1348 |
| Gotland | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 35.2 | 1295 |
| Bali | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 36.5 | 1393 |
| Skyros | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 36 | 1340 |
| Pony | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 38.3 | 1522 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAAC | ||||||||
| Walking | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 37.8 | 1470 |
| Exmoor | 336.4 | 19 | 2.03 | 246.9 | 19 | 2.89 | 46.8 | 2193 |
| Breton | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 49.1 | 2402 |
| AAC/XLPE+ACSR | ||||||||
| Morochuca | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 14.7 | 221 |
| Chola | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 15.4 | 229 |
| Morgan | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 17.4 | 330 |
| Hackney | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 18.4 | 342 |
| Palomino | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 22 | 518 |
| Albino | 1 | 19 | 1.52 | 1 | 6/1 | 3 | 25.8 | 672 |
| Standardbred | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 28.6 | 854 |
| Costena | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 28.3 | 827 |
| Chicoteagues | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 31.5 | 1053 |
| Grullo | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 31.1 | 1022 |
| Mare | 3/0 | 7 | 1.52 | 3/0 | 6/1 | 4.25 | 34.6 | 1301 |
| Suffolk | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 4.25 | 34.3 | 1260 |
| Stallion | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 4.77 | 38.3 | 1614 |
| Appaloosa | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 4.77 | 37.8 | 1561 |
| Gelding | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 46.7 | 2285 |
| Bronco | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3.47 | 48.6 | 2396 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
