01 / Construction & ratings

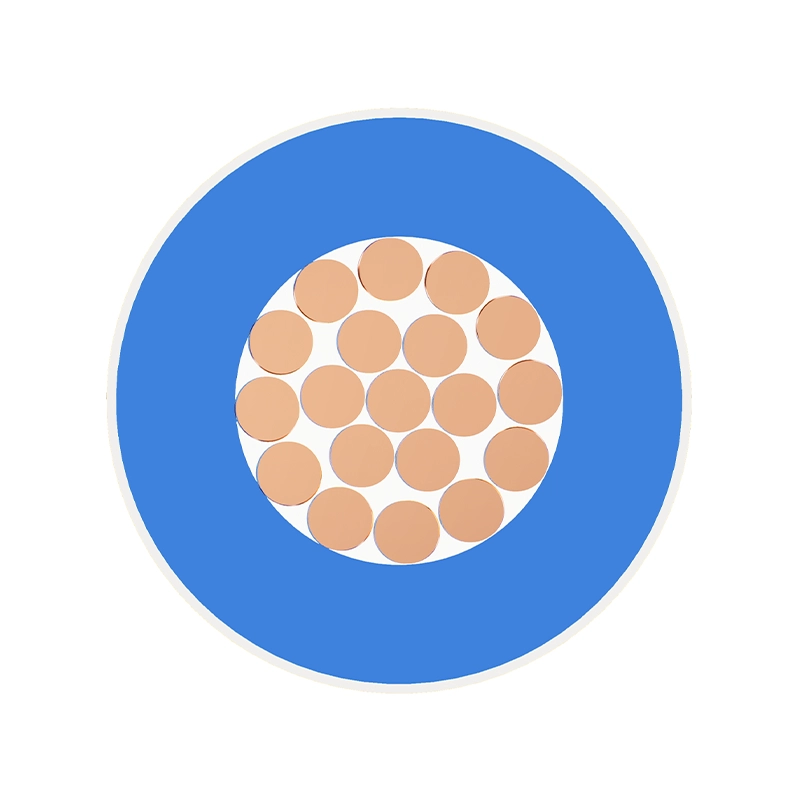

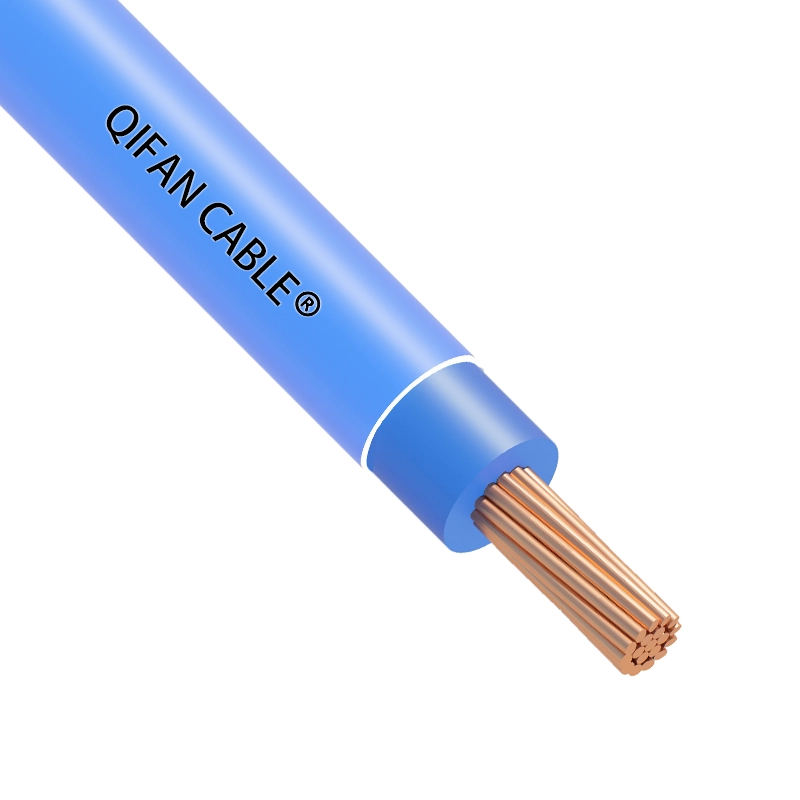

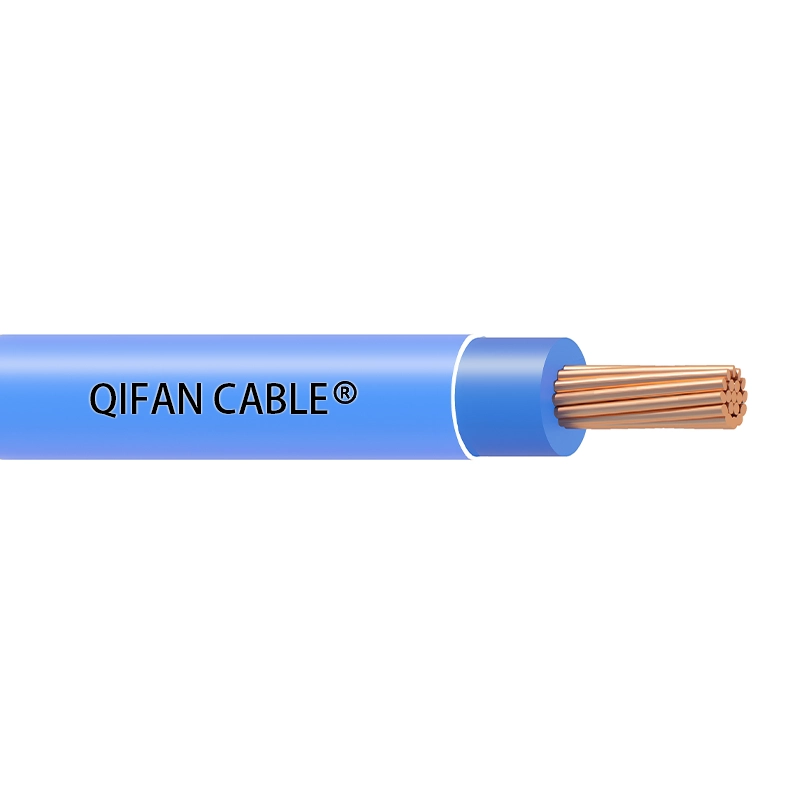

Construction & ratings
- Conductor : – Plain stranded annealed class B copper
- Insulation: Chlorinated polyethylene compound(PVC)
- Jacket: Nylon
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Type THHN 600V standard UL 83 CU/PVC/Nylon | ||||||||
|---|---|---|---|---|---|---|---|---|
| NO./AWG | Conductor NO. | Insulation thickness （mm） | Sheath thickness （mm） | Diameter of cable （mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) | Carrying capacity（A） |
| 14AWG | 1 | 0.38 | 0.10 | 2.59 | 18.83 | 23.27 | 8.620 | 25 |
| 14AWG | 7 | 0.38 | 0.10 | 2.80 | 18.72 | 23.61 | 8.620 | 25 |
| 12AWG | 1 | 0.38 | 0.10 | 3.01 | 29.78 | 35.11 | 5.430 | 30 |
| 12AWG | 7 | 0.38 | 0.10 | 3.30 | 30.07 | 36.00 | 5.430 | 30 |
| 10AWG | 1 | 0.51 | 0.10 | 3.81 | 47.54 | 56.20 | 3.410 | 40 |
| 10AWG | 7 | 0.51 | 0.10 | 4.15 | 47.46 | 57.06 | 3.410 | 40 |
| 8AWG | 7 | 0.76 | 0.10 | 5.41 | 75.05 | 92.62 | 2.140 | 55 |
| 6AWG | 7 | 0.76 | 0.13 | 6.43 | 119.18 | 141.17 | 1.350 | 75 |
| 4AWG | 7 | 1.02 | 0.15 | 8.22 | 190.58 | 227.52 | 0.848 | 95 |
| 3AWG | 7 | 1.02 | 0.15 | 8.22 | 190.58 | 227.52 | 0.673 | 115 |
| 2AWG | 7 | 1.02 | 0.15 | 9.75 | 302.66 | 347.65 | 0.534 | 130 |
| 1AWG | 7 | 1.27 | 0.18 | 10.31 | 302.66 | 360.25 | 0.423 | 145 |
| 1/0AWG | 19 | 1.27 | 0.18 | 12.35 | 480.99 | 551.90 | 0.335 | 170 |
| 2/0AWG | 19 | 1.27 | 0.18 | 13.55 | 610.90 | 689.64 | 0.266 | 195 |
| 3/0AWG | 19 | 1.27 | 0.18 | 14.85 | 769.14 | 856.37 | 0.211 | 225 |
| 4/0AWG | 19 | 1.27 | 0.18 | 16.30 | 967.12 | 1063.81 | 0.167 | 260 |
| 250MCM | 37 | 1.52 | 0.20 | 18.07 | 1145.39 | 1271.88 | 0.142 | 290 |
| 300MCM | 37 | 1.52 | 0.20 | 19.47 | 1375.09 | 1512.44 | 0.118 | 320 |
| 350MCM | 37 | 1.52 | 0.20 | 20.73 | 1599.76 | 1746.88 | 0.101 | 350 |
| 400MCM | 37 | 1.52 | 0.20 | 21.92 | 1827.55 | 1983.90 | 0.0885 | 380 |
| 500MCM | 37 | 1.52 | 0.20 | 24.09 | 2281.94 | 2455.12 | 0.0709 | 430 |
| 600MCM | 37 | 1.78 | 0.23 | 24.67 | 2281.94 | 2486.98 | 0.0590 | 475 |
| 750MCM | 61 | 1.78 | 0.23 | 29.40 | 3437.85 | 3685.77 | 0.0472 | 520 |
| 1000MCM | 61 | 1.78 | 0.23 | 33.27 | 4566.20 | 4849.21 | 0.0350 | 615 |
