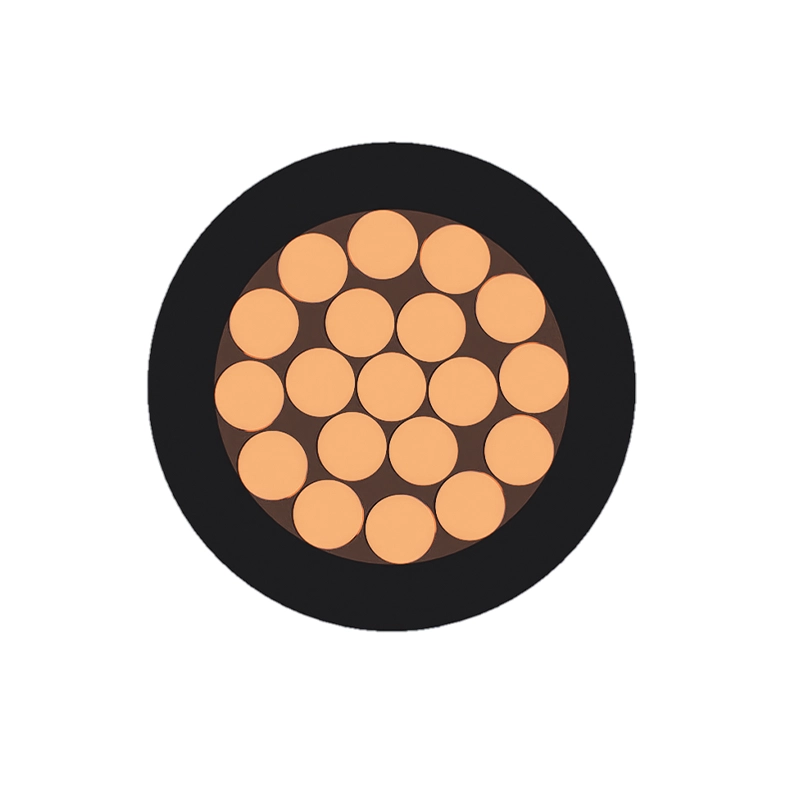

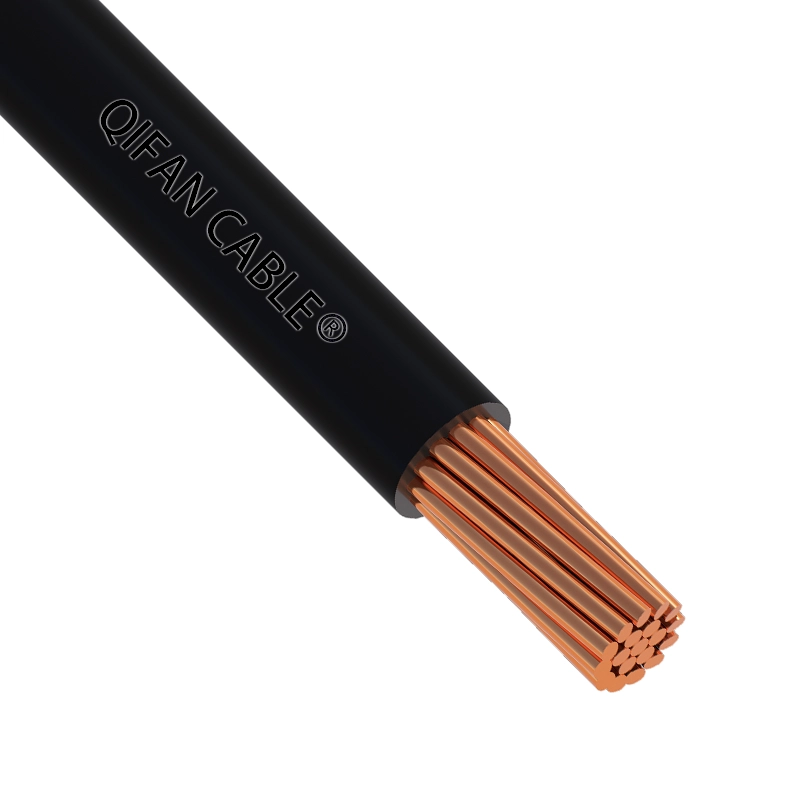

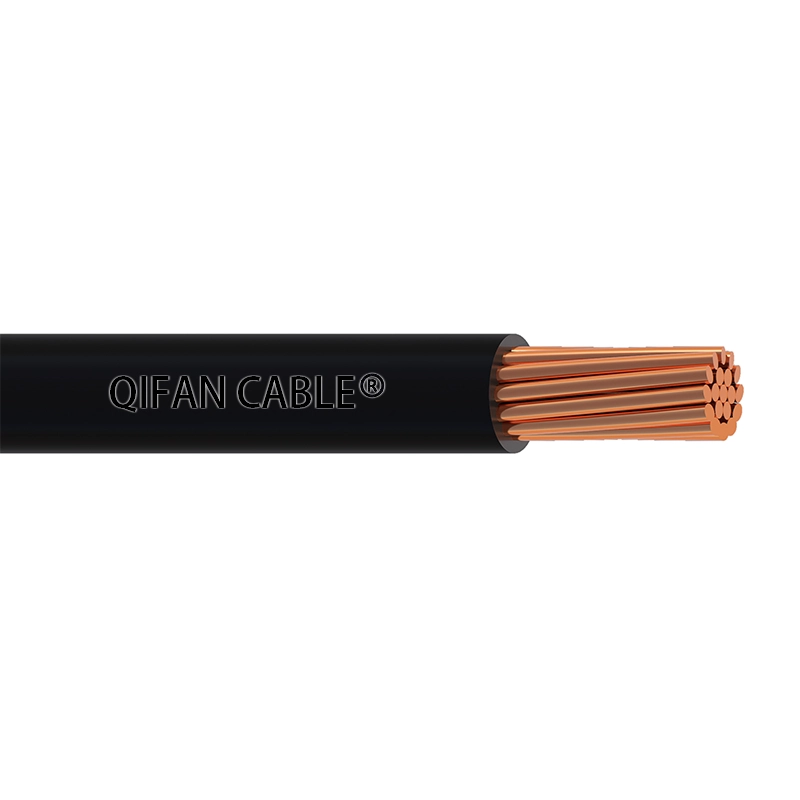

01 / Construction & ratings
Construction & ratings
- Conductor : – Plain stranded annealed class B copper
- Insulation: -Chlorinated polyethylene compound(PVC)
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Conductor | Insulation Thickness In.(mm) | Nominal O.D. In.(mm) | Approx. Weight per 1000′ (lbs.) (kg/km) | Allowable Ampacities | |
|---|---|---|---|---|---|
| Size AWG or kcmil | Number of Strands | 90° C | |||
| 14 | 7 | 0.030(0.76) | 0.131(3.3) | 18(27) | 15 |
| 12 | 7 | 0.030(0.76) | 0.149(3.8) | 24(36) | 20 |
| 10 | 7 | 0.030(0.76) | 0.173(4.4) | 37(55) | 30 |
| 8 | 7 | 0.045(1.14) | 0.232(5.9) | 65(97) | 55 |
| 6 | 7 | 0.045(1.14) | 0.298(7.6) | 96(143) | 75 |
| 4 | 7 | 0.045(1.14) | 0.345(8.8) | 147(219) | 100 |
| 2 | 7 | 0.045(1.14) | 0.403(10.2) | 227(338) | 130 |
| 1 | 19 | 0.055(1.40) | 0.482(12.2) | 291(433) | 145 |
| 1/0 | 19 | 0.055(1.40) | 0.522(13.3) | 363(540) | 170 |
| 2/0 | 19 | 0.055(1.40) | 0.554(14.1) | 453(674) | 195 |
| 3/0 | 19 | 0.055(1.40) | 0.617(15.7) | 565(841) | 225 |
| 4/0 | 19 | 0.055(1.40) | 0.672(17.1) | 706(1051) | 260 |
| 250 | 37 | 0.065(1.65) | 0.749(19.0) | 835(1243) | 290 |
| 300 | 37 | 0.065(1.65) | 0.800(20.3) | 995(1481) | 320 |
| 350 | 37 | 0.065(1.65) | 0.851(21.6) | 1155(1719) | 350 |
| 400 | 37 | 0.065(1.65) | 0.895(22.7) | 1314(1955) | 380 |
| 500 | 37 | 0.065(1.65) | 0.977(24.8) | 1633(2430) | 430 |
| 600 | 61 | 0.080(2.03) | 1.086(27.6) | 1965(2924) | 475 |
| 750 | 61 | 0.080(2.03) | 1.189(30.2) | 2440(3631) | 535 |
| 1000 | 61 | 0.080(2.03) | 1.338(34.0) | 3229(4805) | 615 |
