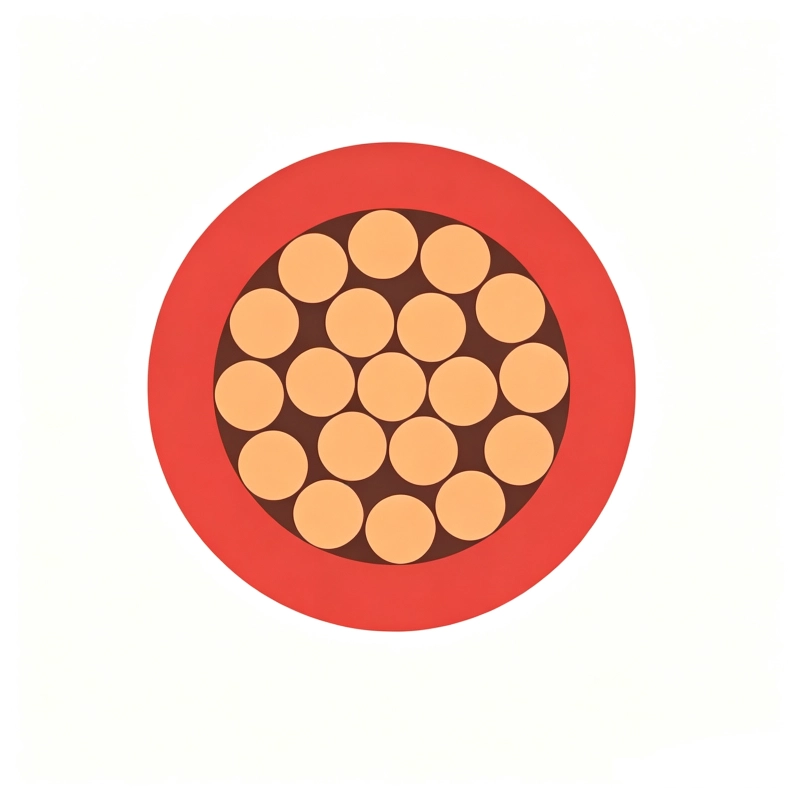

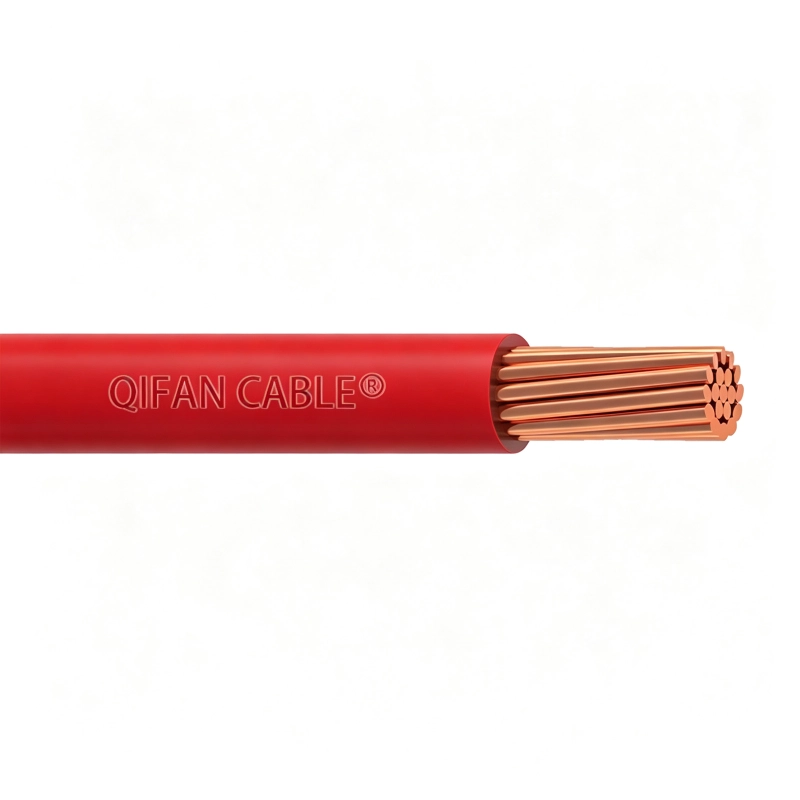

01 / Construction & ratings
Construction & ratings
- Conductor : – Plain stranded annealed class B copper
- Insulation: -Cross-linked polyethylene(XLPE)
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| TECHNICAL INFORMATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size AWG / MCM | Nominal Cross Section Area | Number of Strands | Nominal Isolation Thickness | Total Approximate Exterior Diameter | Total Approximate Weight | Max.C.D. Electrical Resistance @20℃ | |||
| C.M. | mm² | in | mm | in | mm | ||||
| 14 | 4110 | 2.08 | 1 | 0.03 | 0.76 | 0.124 | 3.15 | 24 | 8.81 |
| 12 | 6530 | 3.31 | 1 | 0.03 | 0.76 | 0.141 | 3.58 | 36 | 5.57 |
| 10 | 10380 | 5.26 | 1 | 0.03 | 0.76 | 0.162 | 4.11 | 55 | 3.49 |
| 8 | 16510 | 8.37 | 1 | 0.045 | 1.14 | 0.218 | 5.55 | 91 | 2.19 |
| 6 | 26240 | 13.3 | 1 | 0.045 | 1.14 | 0.252 | 6.4 | 138 | 1.37 |
| 14 | 4110 | 2.08 | 7 | 0.03 | 0.76 | 0.133 | 3.37 | 26 | 8.98 |
| 12 | 6530 | 3.31 | 7 | 0.03 | 0.76 | 0.152 | 3.85 | 39 | 5.68 |
| 10 | 10380 | 5.26 | 7 | 0.03 | 0.76 | 0.176 | 4.46 | 58 | 3.56 |
| 8 | 16510 | 8.37 | 7 | 0.045 | 1.14 | 0.236 | 5.99 | 96 | 2.23 |
| 6 | 26240 | 13.3 | 7 | 0.045 | 1.14 | 0.274 | 6.95 | 146 | 1.4 |
| 4 | 41740 | 21.15 | 19 | 0.045 | 1.14 | 0.316 | 8.04 | 220 | 0.881 |
| 3 | 52620 | 26.66 | 19 | 0.045 | 1.14 | 0.344 | 8.75 | 274 | 0.7 |
| 2 | 66360 | 33.63 | 19 | 0.045 | 1.14 | 0.376 | 9.54 | 341 | 0.554 |
| 1 | 83690 | 42.41 | 19 | 0.045 | 1.14 | 0.431 | 10.94 | 434 | 0.443 |
| 1/0 | 105600 | 53.51 | 19 | 0.055 | 1.4 | 0.47 | 11.94 | 541 | 0.348 |
| 2/0 | 133100 | 67.44 | 19 | 0.055 | 1.4 | 0.514 | 13.07 | 674 | 0.277 |
| 3/0 | 167800 | 85.03 | 19 | 0.055 | 1.4 | 0.564 | 14.33 | 842 | 0.22 |
| 4/0 | 211600 | 107.22 | 19 | 0.055 | 1.4 | 0.62 | 15.75 | 1053 | 0.174 |
| 250 | 250000 | 126.88 | 37 | 0.065 | 1.65 | 0.706 | 17.93 | 1247 | 0.148 |
| 300 | 300000 | 152.01 | 37 | 0.065 | 1.65 | 0.761 | 19.33 | 1486 | 0.123 |
| 350 | 350000 | 177.35 | 37 | 0.065 | 1.65 | 0.812 | 20.62 | 1725 | 0.105 |
| 400 | 400000 | 202.68 | 37 | 0.065 | 1.65 | 0.859 | 21.82 | 1963 | 0.0919 |
| 500 | 500000 | 253.36 | 37 | 0.065 | 1.65 | 0.945 | 24 | 2439 | 0.0738 |
| 600 | 600000 | 304.03 | 61 | 0.08 | 2.03 | 1.053 | 26.75 | 2946 | 0.0617 |
| 750 | 750000 | 380.03 | 61 | 0.08 | 2.03 | 1.159 | 29.44 | 3660 | 0.0491 |
| 1000 | 1000000 | 506.71 | 61 | 0.08 | 2.03 | 1.313 | 33.35 | 4845 | 0.0369 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
