01 / Construction & ratings
Construction & ratings

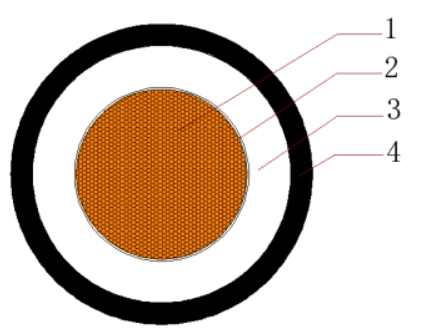

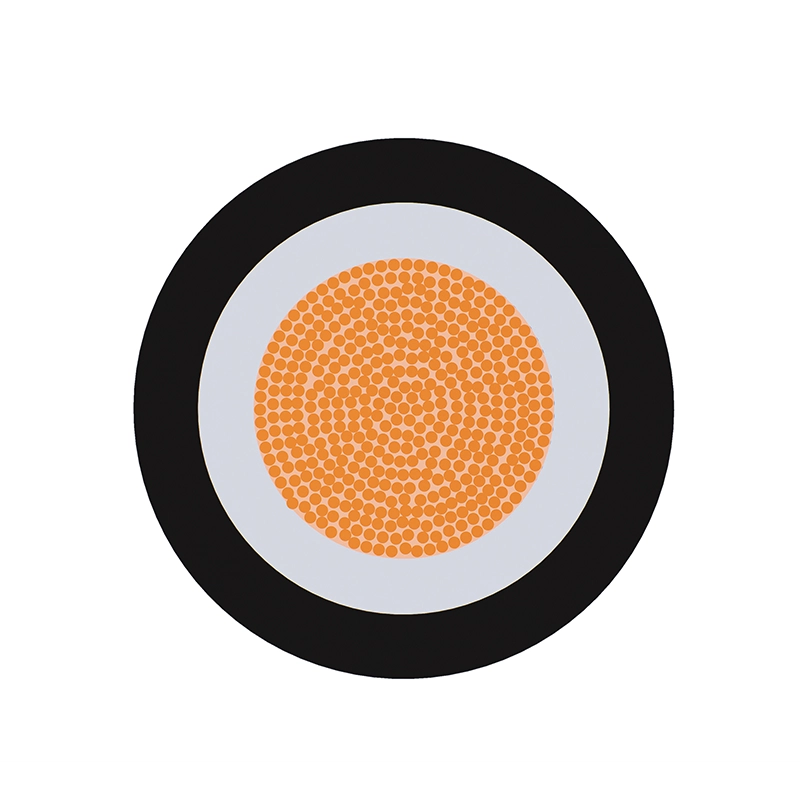

- Cable design: DIN VDE 0250-602
- Flame retardant:IEC60332-1
- Conductor – Plain flexible annealed class 5 copper
- Binder tape – Polyester non-woven fabric
- Insulation -Ethylene Propylene Rubber (EPR Type 3G13)
- Outer jacket – Polychloroprene)(PCP Type 5GM3)
- 1C1.5~300mm2
- flexible -20°C to +90°C
- fixed -40°C to +90°C
- Rated voltage: 1.8/3V
- High voltage test: 6kV / 5min
- Insulation: Natural
- Sheath：Black
- Flexible: 10x Outer Ø
- Fixed: 6x Outer Ø
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA (mm2) | NOMINAL THICKNESS OF INSULATION (mm) | NOMINAL THICKNESS OF SHEATH (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1.5 | 1.3 | 0.8 | 6.3 | 51 |
| 1 | 2.5 | 1.3 | 0.8 | 6.7 | 63 |
| 1 | 4 | 1.3 | 0.8 | 7.4 | 82 |
| 1 | 6 | 1.3 | 0.8 | 7.9 | 103 |
| 1 | 10 | 1.5 | 0.8 | 9.5 | 159 |
| 1 | 16 | 1.5 | 0.8 | 10.5 | 219 |
| 1 | 25 | 1.6 | 1 | 12.8 | 335 |
| 1 | 35 | 1.6 | 1 | 14.1 | 435 |
| 1 | 50 | 1.8 | 1 | 15.9 | 582 |
| 1 | 70 | 1.8 | 1 | 17.8 | 757 |
| 1 | 95 | 2.2 | 1 | 20.1 | 1040 |
| 1 | 120 | 2.2 | 1 | 22 | 1289 |
| 1 | 150 | 2.2 | 1.2 | 24 | 1581 |
| 1 | 185 | 2.4 | 1.2 | 26.3 | 1895 |
| 1 | 240 | 2.6 | 1.2 | 29.6 | 2452 |
| 1 | 300 | 2.8 | 1.2 | 32.2 | 2998 |
