01 / Construction & ratings

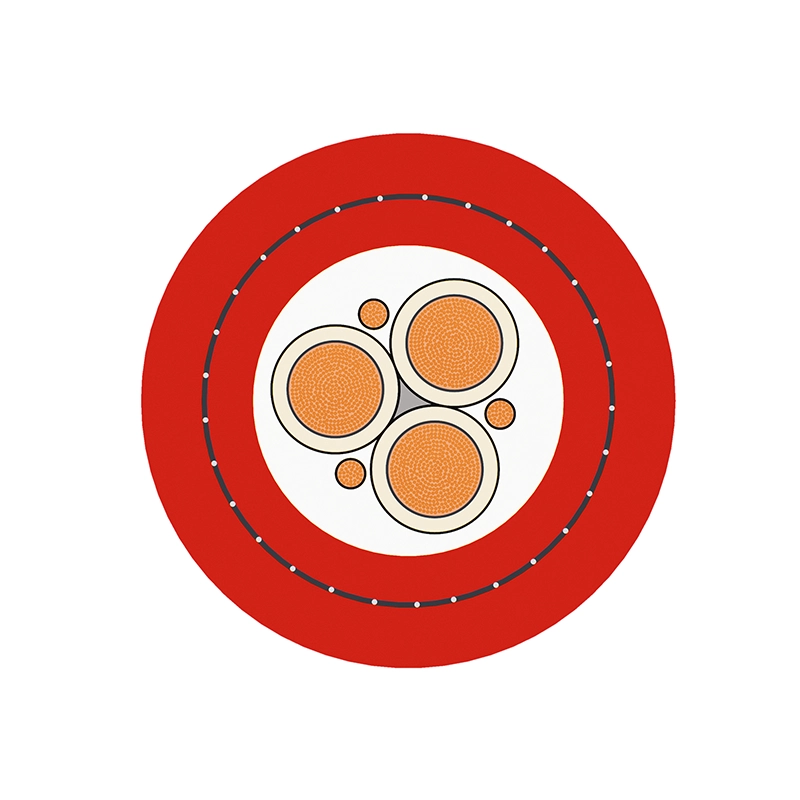

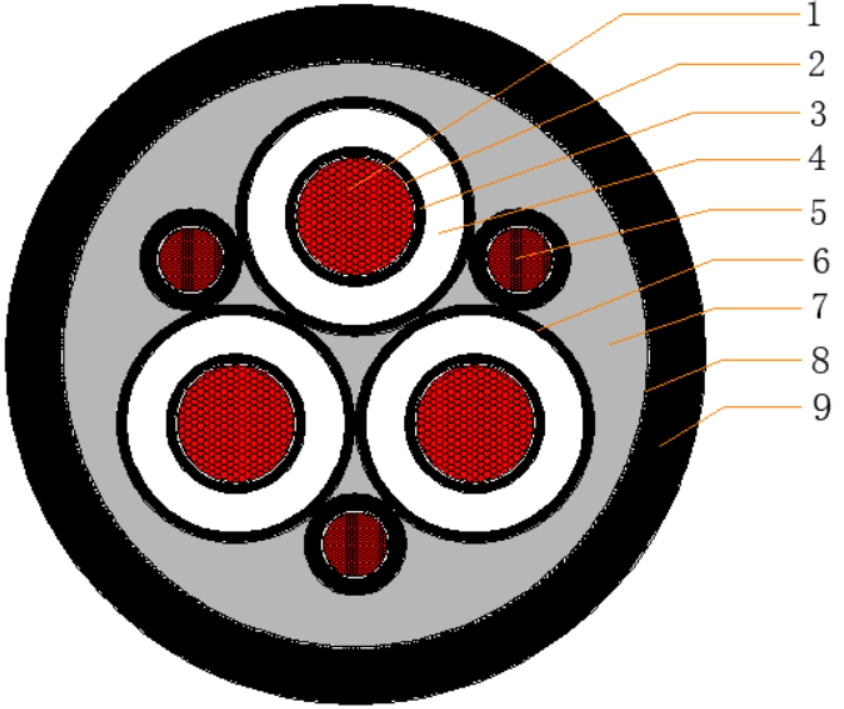

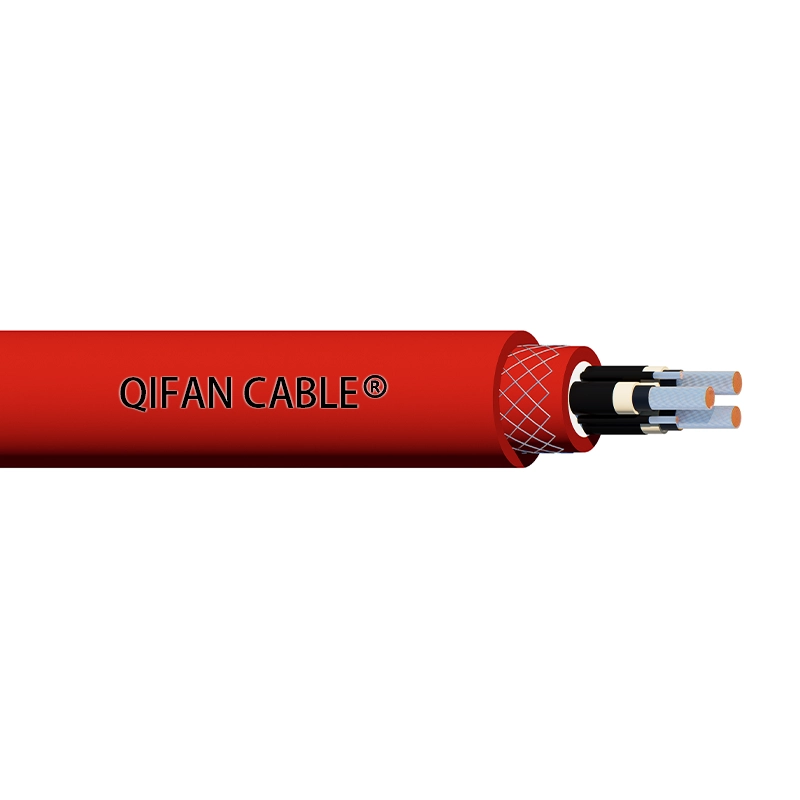

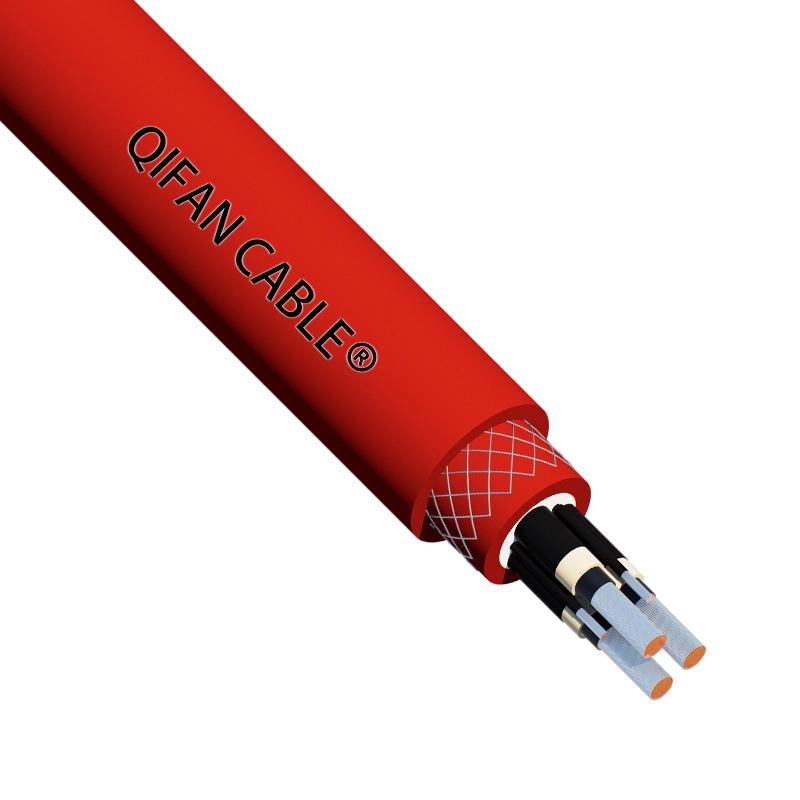

Construction & ratings
- Cable design: DIN VDE 0250-813
- Flame retardant:IEC60332-1
- Conductor – Tinned flexible annealed class 5 copper
- Binder tape – Semi conductive tape
- Conductor screen – Semi conductive material
- Insulation – Ethylene Propylene Rubber (EPR Type 3G13)
- Earth conductor – Tinned flexible annealed class 5 copper covered with Semi conductive material
- Insulation screen – Semi conductive material
- Inner sheath – Polychloroprene)(PCP Type 5GM5)
- Reinforced layer – Fibre yarn braid
- Sheath – Polychloroprene)(PCP Type 5GM5)
- 3C+3E:16~185mm2
- flexible -20°C to +90°C
- fixed -40°C to +90°C
- Rated voltage: 3.6/6kV-18-30kV
- Insulation: Natural
- Sheath：Black or According to customer requirements
- Flexible: 8x Outer Ø
- Fixed: 6x Outer Ø
02 / Technical data
Technical data
Product identifiers, units and manufacturer specification data are kept in their original form.
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 44.6 | 47.6 | 3080 | ||
| 3×35+3×25/3 | 47.6 | 50.6 | 3590 | ||
| 3×50+3×25/3 | 52.4 | 56.4 | 4520 | ||
| 3×70+3×35/3 | 56.3 | 60.3 | 5520 | ||
| 3×95+3×50/3 | 59.9 | 63.9 | 6580 | ||
| 3×120+3×70/3 | 65.6 | 69.6 | 8110 | ||
| 3×150+3×70/3 | 69.3 | 73.3 | 9320 | ||
| 3×185+3×95/3 | 73.2 | 77.2 | 10780 | ||
| 3×25+2×25/2+1×10ST | 45.0 | 49.0 | 3200 | ||
| 3×35+2×25/2+1×10ST | 47.6 | 51.6 | 3680 | ||
| 3×50+2×25/2+1×10ST | 53.0 | 57.0 | 4640 | ||
| 3×70+2×35/2+1×10ST | 56.2 | 60.2 | 5550 | ||
| 3×95+2×50/2+1×10ST | 61.8 | 66.8 | 6650 | ||
| 3×120+2×70/2+1×10ST | 66.1 | 71.1 | 8160 | ||
| 3×150+2×70/2+1×10ST | 69.8 | 74.8 | 9340 | ||
| 3×185+2×95/2+1×10ST | 74.6 | 79.6 | 10890 |
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 46.4 | 49.4 | 3270 | ||
| 3×35+3×25/3 | 49.1 | 53.1 | 3800 | ||
| 3×50+3×25/3 | 54.1 | 58.1 | 4750 | ||
| 3×70+3×35/3 | 58.0 | 62.0 | 5750 | ||
| 3×95+3×50/3 | 61.7 | 65.7 | 6830 | ||
| 3×120+3×70/3 | 67.4 | 71.4 | 8380 | ||
| 3×150+3×70/3 | 71.0 | 75.0 | 9620 | ||
| 3×185+3×95/3 | 76.7 | 80.7 | 11430 | ||
| 3×25+2×25/2+1×10ST | 46.8 | 50.8 | 3410 | ||
| 3×35+2×25/2+1×10ST | 50.9 | 54.9 | 3890 | ||
| 3×50+2×25/2+1×10ST | 54.5 | 58.9 | 4860 | ||
| 3×70+2×35/2+1×10ST | 58.0 | 62.0 | 5780 | ||
| 3×95+2×50/2+1×10ST | 63.5 | 68.5 | 6920 | ||
| 3×120+2×70/2+1×10ST | 67.8 | 72.8 | 8450 | ||
| 3×150+2×70/2+1×10ST | 71.5 | 76.5 | 9620 | ||
| 3×185+2×95/2+1×10ST | 76.3 | 81.3 | 10980 |
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 52.6 | 56.6 | 4040 | ||
| 3×35+3×25/3 | 55.6 | 59.6 | 4630 | ||
| 3×50+3×25/3 | 58.9 | 62.9 | 5370 | ||
| 3×70+3×35/3 | 64.5 | 68.5 | 6720 | ||
| 3×95+3×50/3 | 68.2 | 72.2 | 7850 | ||
| 3×120+3×70/3 | 72.1 | 76.1 | 9130 | ||
| 3×150+3×70/3 | 77.6 | 81.6 | 10750 | ||
| 3×185+3×95/3 | 81.5 | 85.5 | 12290 | ||
| 3×25+2×25/2+1×10ST | 53.0 | 57.0 | 4130 | ||
| 3×35+2×25/2+1×10ST | 55.6 | 59.6 | 4740 | ||
| 3×50+2×25/2+1×10ST | 59.3 | 63.3 | 5470 | ||
| 3×70+2×35/2+1×10ST | 64.6 | 68.6 | 6820 | ||
| 3×95+2×50/2+1×10ST | 68.3 | 73.3 | 7950 | ||
| 3×120+2×70/2+1×10ST | 74.4 | 79.4 | 9240 | ||
| 3×150+2×70/2+1×10ST | 78.1 | 83.1 | 10860 | ||
| 3×185+2×95/2+1×10ST | 81.1 | 86.1 | 12400 |
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 56.9 | 60.9 | 4620 | ||
| 3×35+3×25/3 | 59.9 | 63.9 | 5220 | ||
| 3×50+3×25/3 | 65.0 | 69.0 | 6300 | ||
| 3×70+3×35/3 | 68.9 | 72.9 | 7410 | ||
| 3×95+3×50/3 | 72.5 | 76.5 | 8560 | ||
| 3×120+3×70/3 | 78.2 | 82.2 | 10260 | ||
| 3×150+3×70/3 | 81.9 | 85.9 | 11570 | ||
| 3×185+3×95/3 | 87.4 | 92.4 | 13530 | ||
| 3×25+2×25/2+1×10ST | 57.3 | 61.3 | 4770 | ||
| 3×35+2×25/2+1×10ST | 59.9 | 63.9 | 5340 | ||
| 3×50+2×25/2+1×10ST | 65.4 | 69.4 | 6460 | ||
| 3×70+2×35/2+1×10ST | 68.8 | 72.8 | 7450 | ||
| 3×95+2×50/2+1×10ST | 74.4 | 79.4 | 8680 | ||
| 3×120+2×70/2+1×10ST | 78.7 | 83.7 | 10370 | ||
| 3×150+2×70/2+1×10ST | 82.2 | 87.2 | 11650 | ||
| 3×185+2×95/2+1×10ST | 87.0 | 92.0 | 13090 |
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|
| No.×mm² | mm | mm | kg/km | ||
| 3×25+2×25/2+1×10ST | 64.7 | 68.7 | 5940 | ||
| 3×35+2×25/2+1×10ST | 67.3 | 71.3 | 6470 | ||
| 3×50+2×25/2+1×10ST | 71.0 | 75.0 | 7300 | ||
| 3×70+2×35/2+1×10ST | 75.2 | 80.2 | 8800 | ||
| 3×95+2×50/2+1×10ST | 80.0 | 85.0 | 10050 | ||
| 3×120+2×70/2+1×10ST | 85.9 | 90.9 | 11470 | ||
| 3×150+2×70/2+1×10ST | 89.6 | 94.6 | 13210 | ||
| 3×185+2×95/2+1×10ST | 92.6 | 97.6 | 14860 |
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight | ||
|---|---|---|---|---|---|
| No.×mm² | mm | mm | kg/km | ||
| 3×25+3×25/3 | 69.5 | 73.5 | 6680 | ||
| 3×35+3×25/3 | 72.5 | 76.5 | 7380 | ||
| 3×50+3×25/3 | 77.6 | 81.6 | 8460 | ||
| 3×70+3×35/3 | 81.5 | 85.5 | 9690 | ||
| 3×95+3×50/3 | 84.9 | 89.9 | 10960 | ||
| 3×120+3×70/3 | 90.6 | 95.6 | 12830 | ||
| 3×150+3×70/3 | 94.3 | 99.3 | 14250 | ||
| 3×185+3×95/3 | 100.0 | 105.0 | 16390 | ||
| 3×25+2×25/2+1×10ST | 69.9 | 73.9 | 7100 | ||
| 3×35+2×25/2+1×10ST | 72.6 | 76.6 | 7540 | ||
| 3×50+2×25/2+1×10ST | 78.0 | 82.0 | 8680 | ||
| 3×70+2×35/2+1×10ST | 80.4 | 85.4 | 9760 | ||
| 3×95+2×50/2+1×10ST | 86.8 | 91.8 | 11100 | ||
| 3×120+2×70/2+1×10ST | 91.1 | 96.1 | 12980 | ||
| 3×150+2×70/2+1×10ST | 94.8 | 99.8 | 14350 | ||
| 3×185+2×95/2+1×10ST | 99.6 | 104.6 | 15870 |
Before you specify
What information should I include in an inquiry?
Include the product designation, operating voltage, conductor size, number of cores, required length and delivery destination. Add installation conditions and any required standard.
Can I use these tables to make the final cable selection?
Use the published values to compare products. Confirm the final construction, current rating and installation requirements with your project engineer and the supplier.
How can I keep a copy of this specification?
Use Print / Save PDF on this page. The print layout includes the product name, construction details and specification tables.
Can the team review a project specification?
Send your requirements through the inquiry form. Include the relevant drawings or document references in your message so the team can follow up.
